13
• Model HDB1½/HDB40
hdb15dl7sm-rev0714

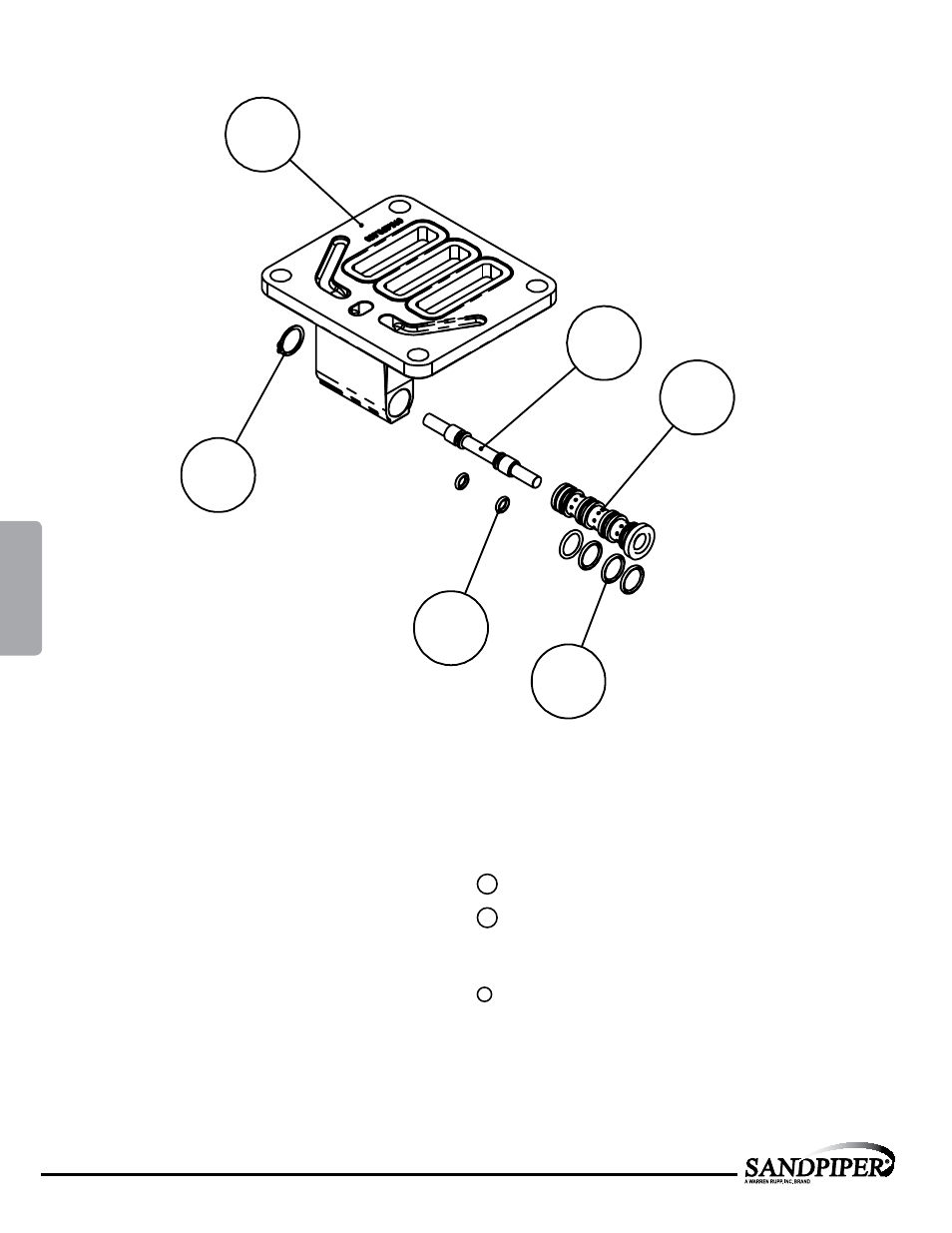

Pilot Valve Assembly
PILOT VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
4 095.073.001 Pilot Valve Assembly 1
4-A 095.070.558 Valve Body 1
4-B 755.025.000 Sleeve (With O-Rings) 1
4-C 560.033.360 O-Ring (Sleeve) 4
4-D 775.026.000 Spool (With O-Rings) 1
4-E 560.023.360 O-Ring (Spool) 2
4-F 675.037.080 Retaining Ring 1
4-A
4-F
4-D
4-B
4-C
4-E
Pilot Valve Servicing
With Pilot Valve removed from pump.
Step 1: Remove snap ring (4-F).
Step 2: Remove sleeve (4-B), inspect O-Rings (4-C),
replace if required.
Step 3: Remove spool (4-D) from sleeve (4-B),
inspect O-Rings (4-E), replace if required.
Step 4: Lightly lubricate O-Rings (4-C) and (4-E).
Reassemble in reverse order.
LEGEND:
= Items contained within Air End Kits
Note: Kits contain components specific to the material codes.
MODEL SPECIFIC
4: AIR
END
