RIKON Power Tools 50-112 User Manual
Page 6
6
Installing Work support
1.

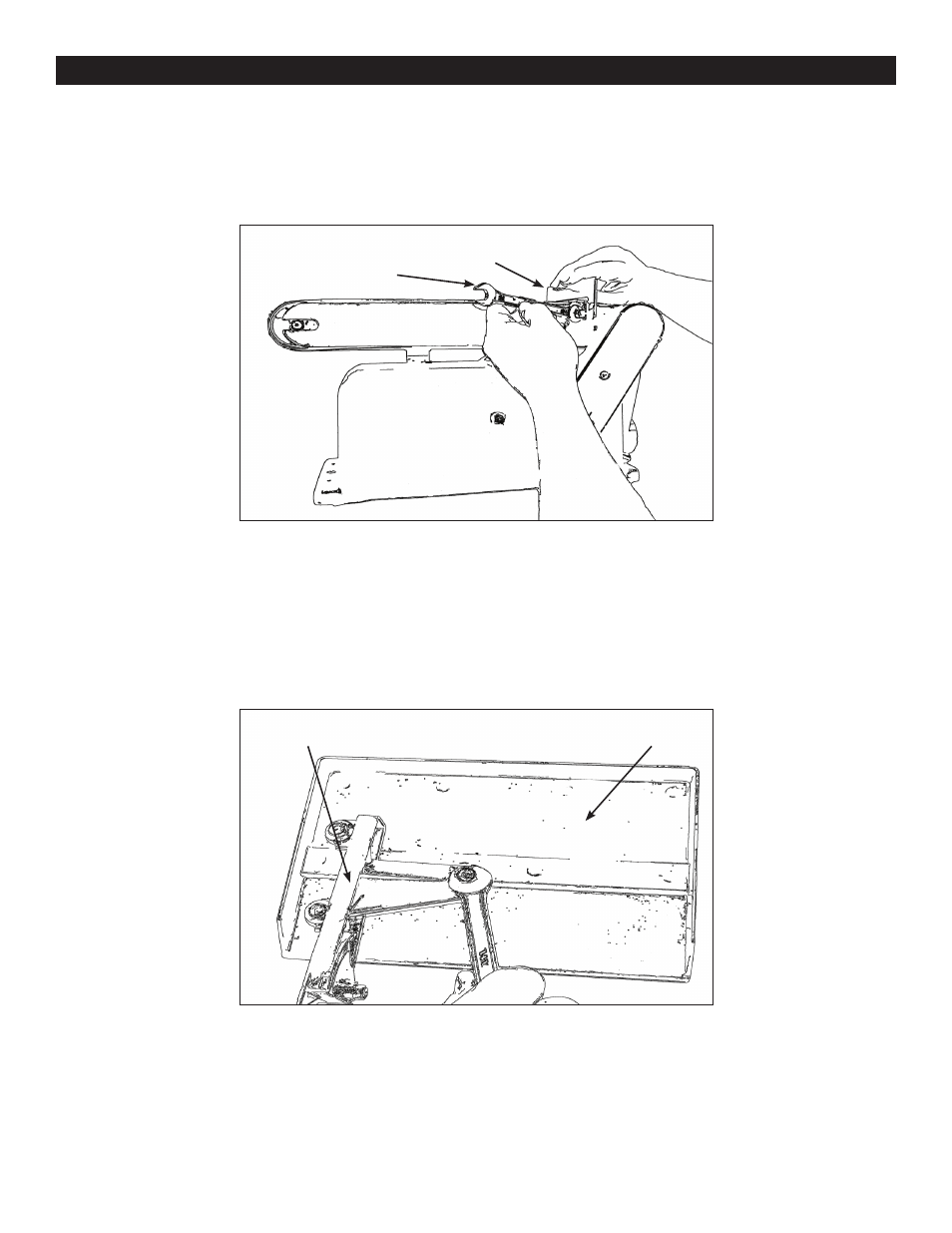

Place work support (60) over sanding belt as shown in following illustration.
2.
Place the hex. screw (91) through the flat washer (90)and secure. Do not over tighten.
Assembly
Table Support Assembly
1.
Locate the table support (33) and hex. screws (31) and washers (32).
2.
Stand table (35) on its side, aligning holes as shown in below illustration.
3.
Fasten table support to table. Do not over tighten screws.
Wrench Work Support (60)
Table (35)
Table Support (33)
