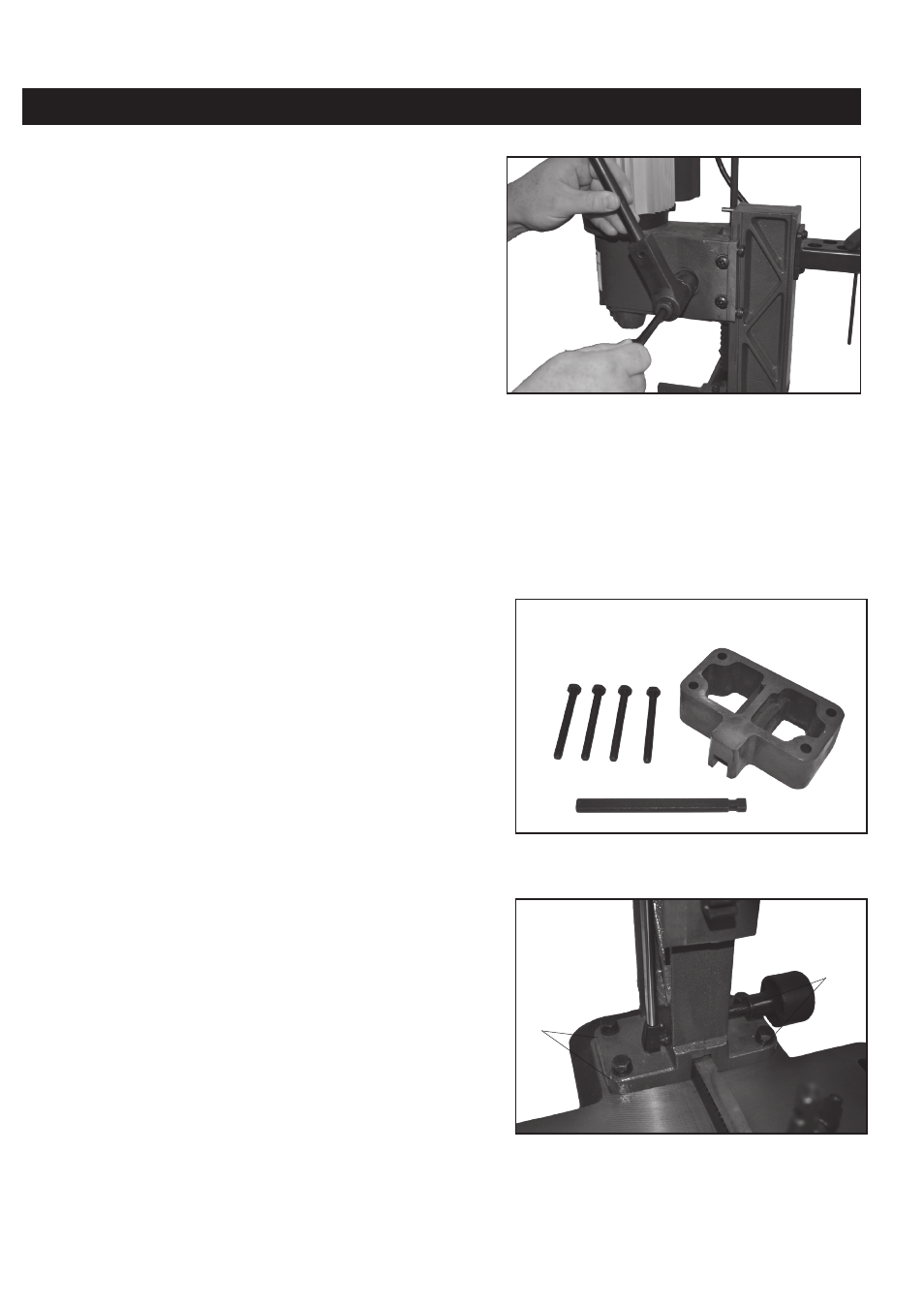

Assembly

Installing the Riser Block

The 34-250 Mortising Machine will accomodate workpieces up to 4-1/4” as preassembled by

the factory. A riser block 1-3/4” tall is provided separately so pieces up to 6” can be mortised.

Below are the steps necessary to add the riser block.

NOTE: The fence adjustment knob will

become inoperable with the riser block installed.

3. Install the feed handle to the notched hub

using the M10-1.5 x 15 Allen bolt and spring.

(Fig.03)

1. Locate the riser block, four

hex bolts M8-

1.25 x 80

, and the long

hold down support

rod.

(Fig.04)

Fig.03

Fig.04

2. With the aid of another person, separate the

column from the base by removing the four

hex bolts M8-1.25 x 25.

(A-Fig.05)

Fig.05
