Operation

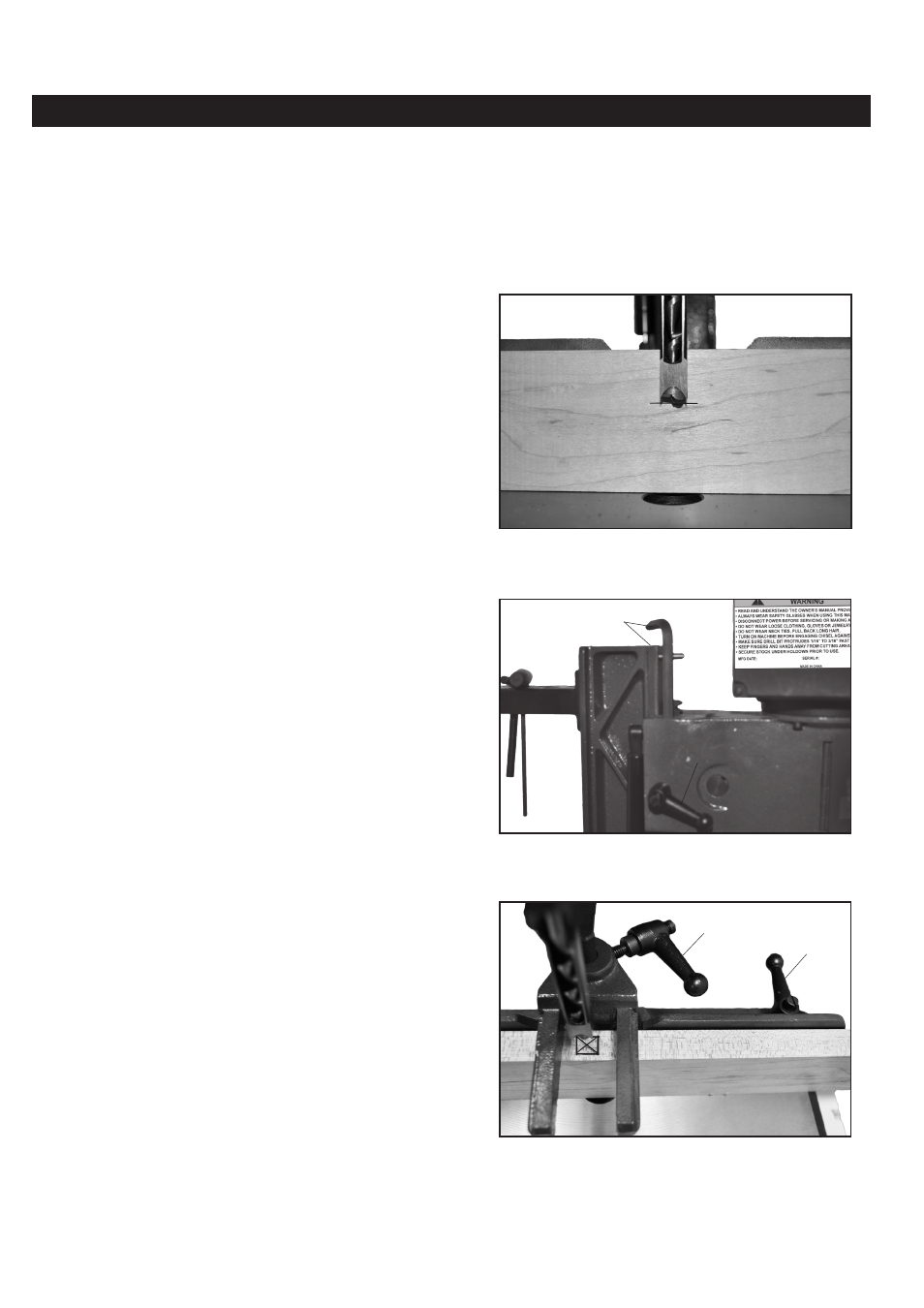

1. Mark your mortise depth on the side of your

workpiece. The depth of the mortise should

be set to the chisel point, not to the tip of the

drill bit. The extra depth cut by the drill bit will

allow room for excess glue.

Fig.15

This manual is not a training aid. There should be some basic understanding regarding

operation prior to using a mortising machine. Tips on usage can be found in books,

researching the internet and other resources.

2. Set the depth stop while holding the chisel at

the desired depth. Loosen the lock handle

(A-Fig.16). Next, lower the depth stop rod

until it makes contact with the top of the

column casting (B-Fig.16).

Fig.16

3. Place the workpiece against the fence. Move

the fence forward and center the chisel with

the mortise to be cut. Lock down the fence

(A-Fig.17) then position the hold down on top

of the workpiece. Lock the hold down

(B-Fig.17). Start the mortiser and feed the

chisel into the workpiece. Feed the chisel to a

depth of 1/2” then retract to allow the chips to

clear. Allow the chisel to do the work. Do not

force the cut or the motor will slow down.

Fig.17
