Unpacking and Clean-up
1. Carefully finish removing all contents from shipping carton. Compare contents of the
shipping carton with the list shown on page 5. Place parts on a protected surface.
2. Report any shipping damage to your local distributor. If parts are missing contact
RIKON customer service at 877-884-5167 or [email protected].
3. Clean all rust protected surfaces. Do not use; gasoline, paint thinner, mineral spirits,
etc. These may damage painted surfaces.
4. Set packing material and shipping carton to the side. Do not discard until machine
has been set up and is running properly.
7

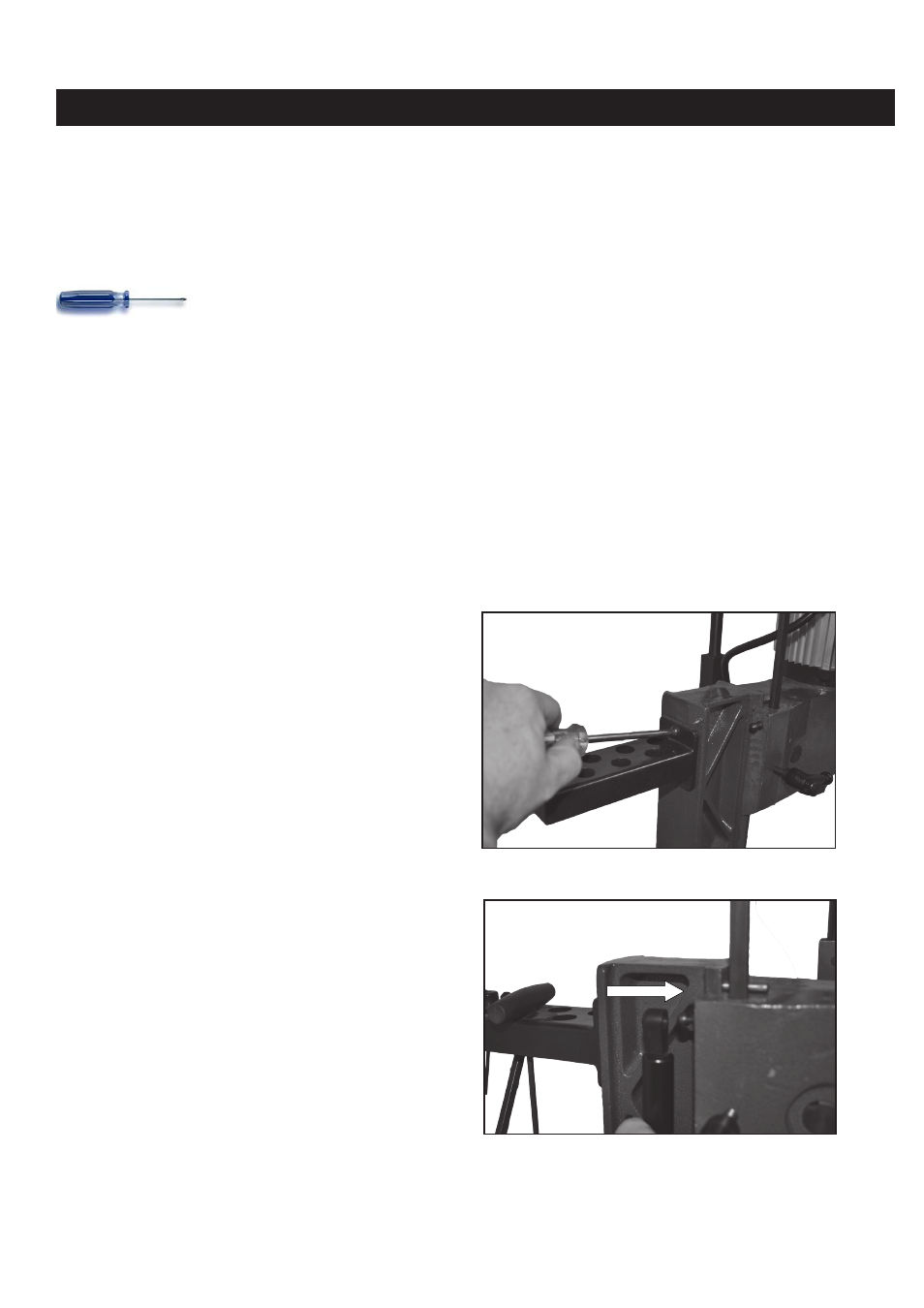

1. Install the tool holder to the upper rear of the
column using two small M6-1.0 x 15 Phillips
head screws and two 6mm flat washers.
(Fig.01)
2. Next install the gas strut return rod with the
black piston end pointing upward. Snap each
end to the ball studs attached to the column.
(Fig.02)
The machine must not be plugged in and the power switch must be in the OFF position
until assembly is complete.
Assembly
Fig.01
Fig.02
Tools Required for Assembly
Item Description
Phillips Screwdriver
