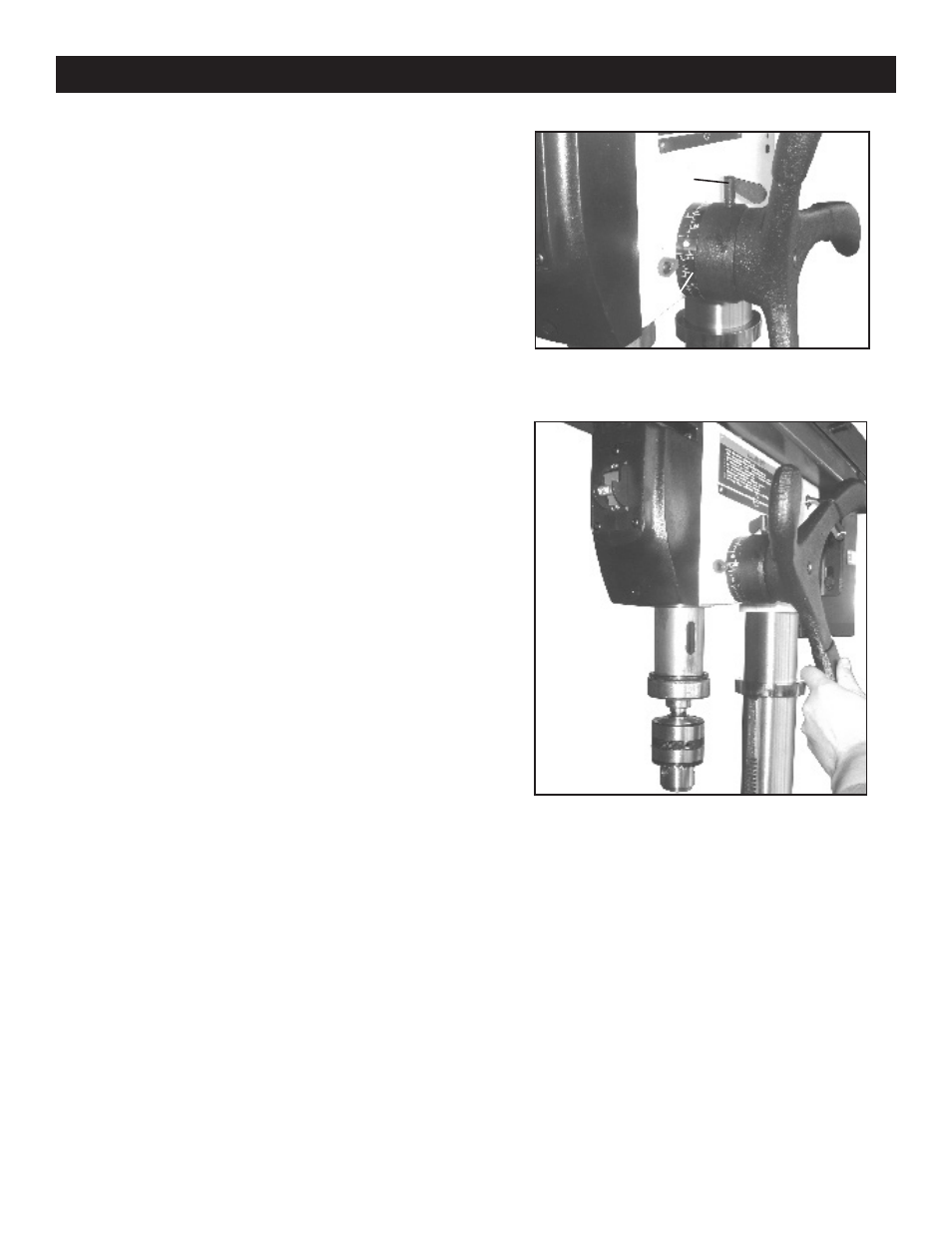

SETTING THE SPINDLE LOCK
1. Loosen the depth stop collar lock (A-
Figure.16).
2. Lower the spindle to the desired depth. (Figure.18)
3. Turn the depth stop collar clockwise until the
collar stops (B-Figure.17).
4. Tighten the depth stop collar lock.
Figure 23
Figure 17
SETTING THE DRILL DEPTH
1. With the spindle in the up position, loosen the
depth stop collar lock (A-Figure.17) as shown.
2. Turn the depth stop collar clockwise until the
pointer reads the desired drill depth on the scale
(B-Figure.17).
3. Tighten the depth stop collar lock.
Setting the spindle lock and drill depth
A
B
Figure 18
