Powerline Network Adapter

 Add: Click to add a MAC/IP based priority entry.

 Prio: Short for Priority. Select a number from the drop‐down list. To set

highest priority level, select “3”.

 Traffic Type: Select MAC address or IPv4 address from the drop‐down

list.

 Value: MAC address must be entered in the form of xx:xx:xx:xx:xx:xx

(for example: 00:12:34:56:78:9a) while IP address must be in the form
of yyy.yyy.yyy.yyy (for example: 192.168.8.100).

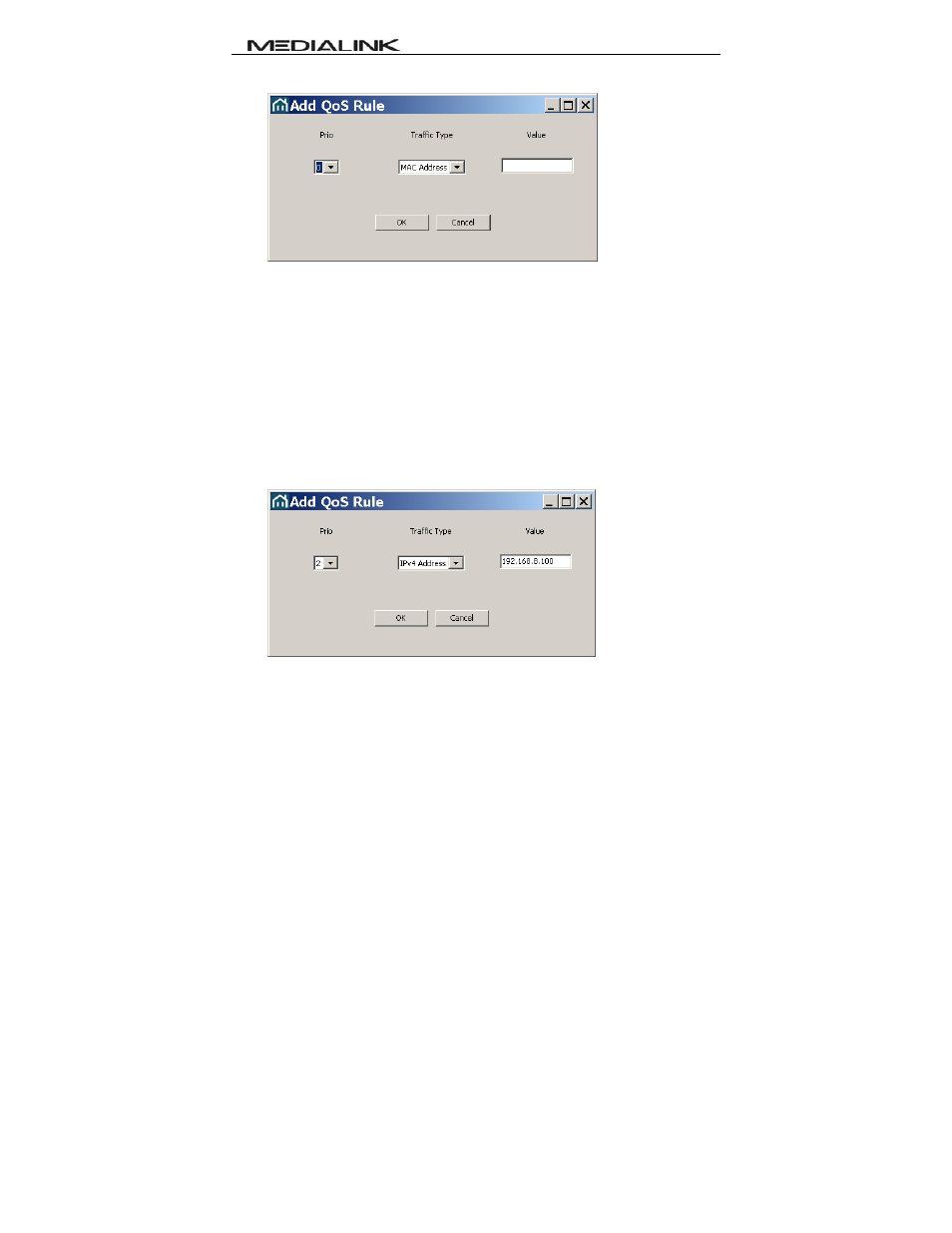

For example: to set data carrying the IP address of 192.168.8.100 to the
priority level of 2, configure as seen below:
