OmniSwitch 6600 Series Chassis and Hardware Components Mounting the Switch
OmniSwitch 6600 Series Hardware Users Guide April 2004 page 2-13
Mounting the Switch
Note. If you are relocating the switch, be sure to power it down and remove all network, stacking, and
power cables before moving.
Airflow Considerations
Be sure that your switch is placed in a well-ventilated, static-free environment. Always allow adequate
clearance at the front, rear, and sides of the switch.

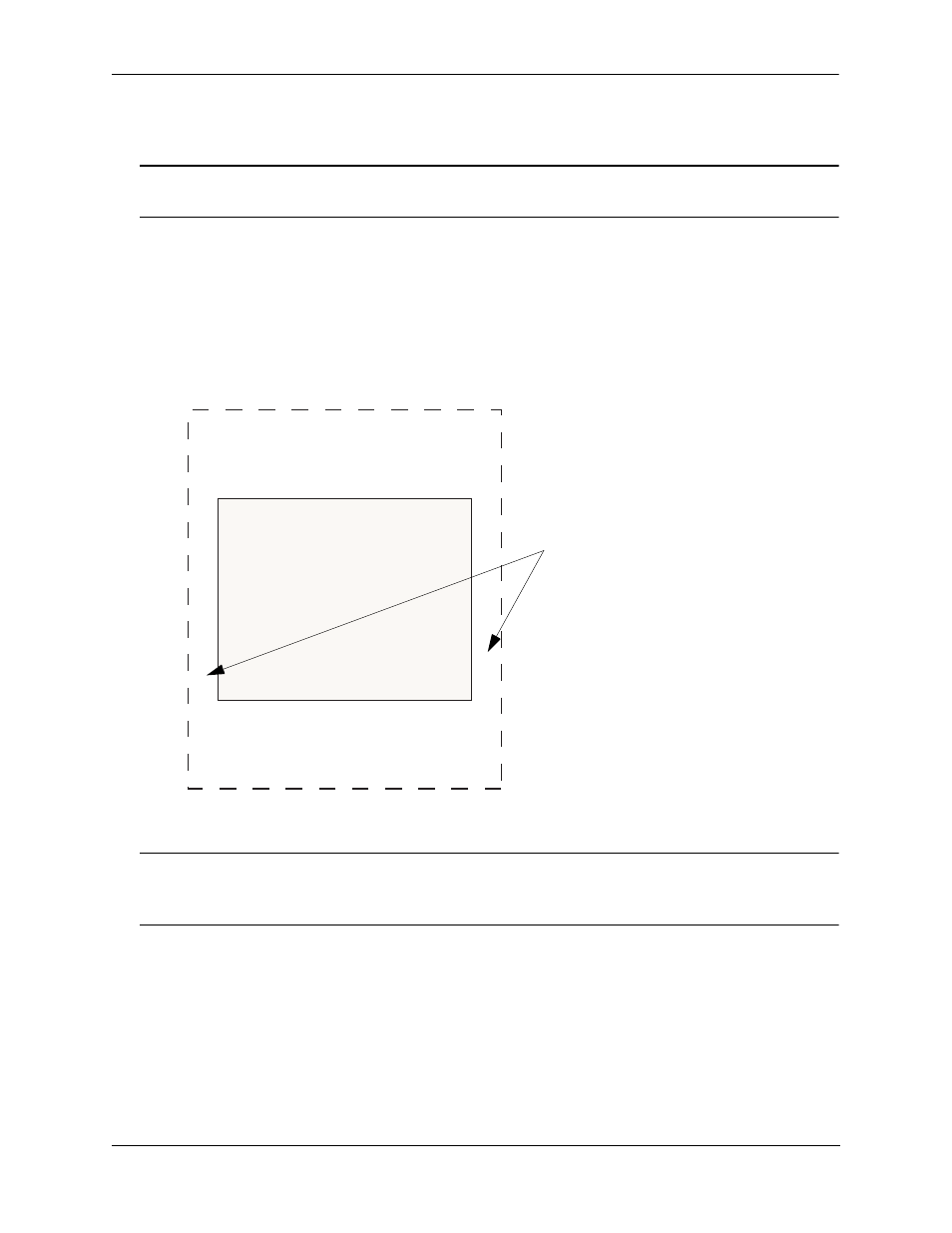

The following diagram shows recommended minimum clearances for adequate chassis airflow and access
to components at the rear of the chassis—e.g., back up power supply and power switch(es).
OmniSwitch 6600 Series Chassis Top View
Note. Never obstruct the air intake vents located at the sides of the chassis. Obstructing these vents can
cause switch failure. Clearance is not required at the top and bottom of the chassis. For detailed chassis
airflow diagrams, refer to
“Chassis Airflow” on page 2-47 .
}
Rear Recommended 5 inches
minimum at rear of chassis for
access to power switch(es) and
power cord(s).
Sides 2 inches minimum at left
and right sides for adequate air-
flow. For detailed information on
chassis airflow, refer to page 2-47 .
Front Recommended 6 inches
minimum at front of chassis for
access to LEDs and network
cables.
}
