Wiring diagram – Lincoln Electric IM987 POWERBrazer User Manual
Page 18
POWERBrazer

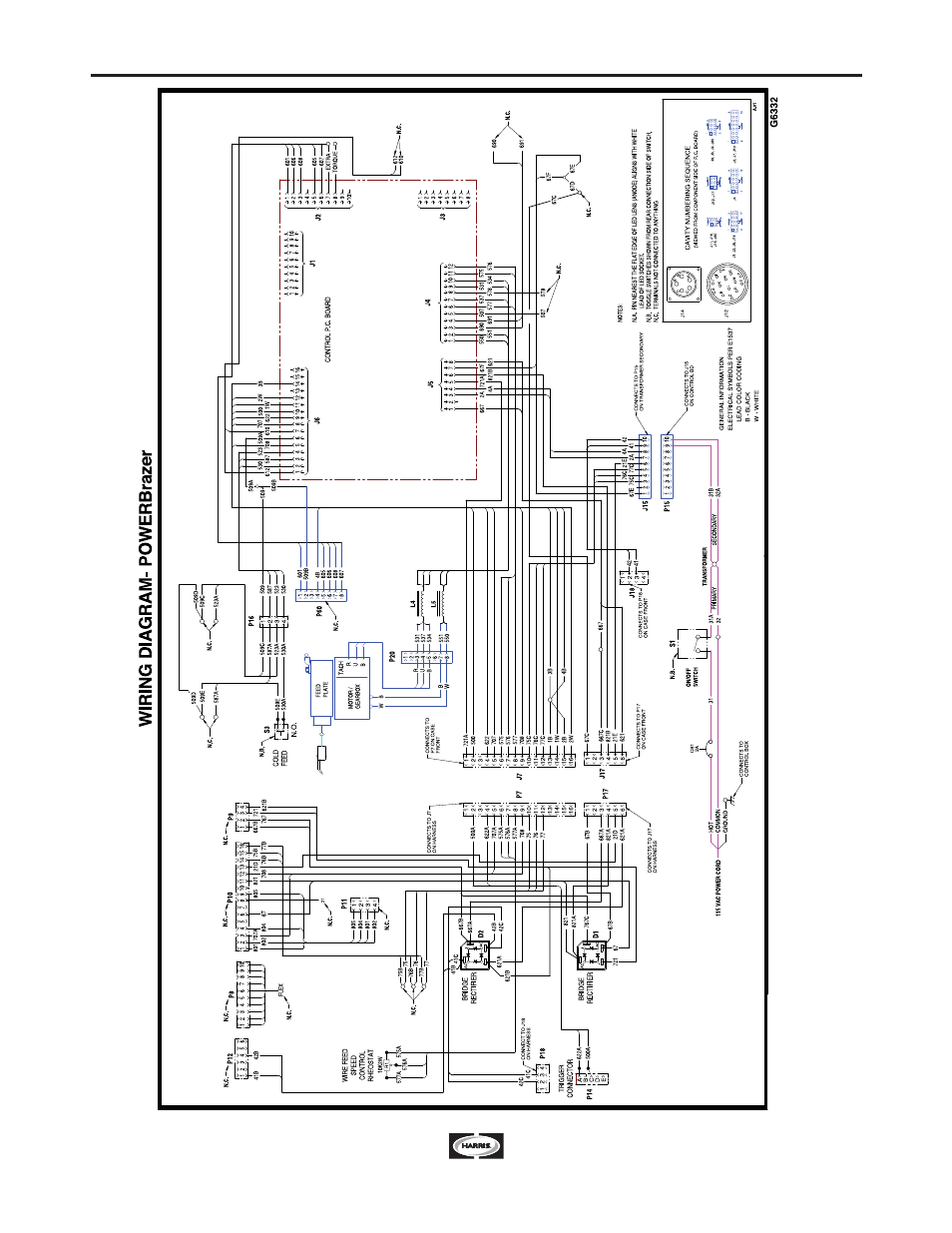

WIRING DIAGRAM
F-1
F-1
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside the machine on
one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipme
nt code number.
