A-6 INSTALLATION A-6
INTER-CONNECTION OF CONVERTERS
The input and electrode cables of the RED-D-ARC
MX350 Converters may be inter-connected in a RED-
D-ARC MX350 System using any combination of
Distribution Box(es) (see Figure 1), paralleling ( CC
mode only) and "daisy-chaining" (see Figure 2) which
best fits the field application setup within the capacity
of the power source supplying the system:
Power Source (Volts x Amp) capacity > 1.1 x Sum of
Convertersʼ (Volts x Amps) arcs
For Converters (operating at rated output) less than
200ft. (61m) from the power source, the following min-
imum cable sizes are recommended for the indicated
quantity of Converters supplied by the input cable run
to keep cable temperature and voltage drop within
acceptable limits:(See Table.1)

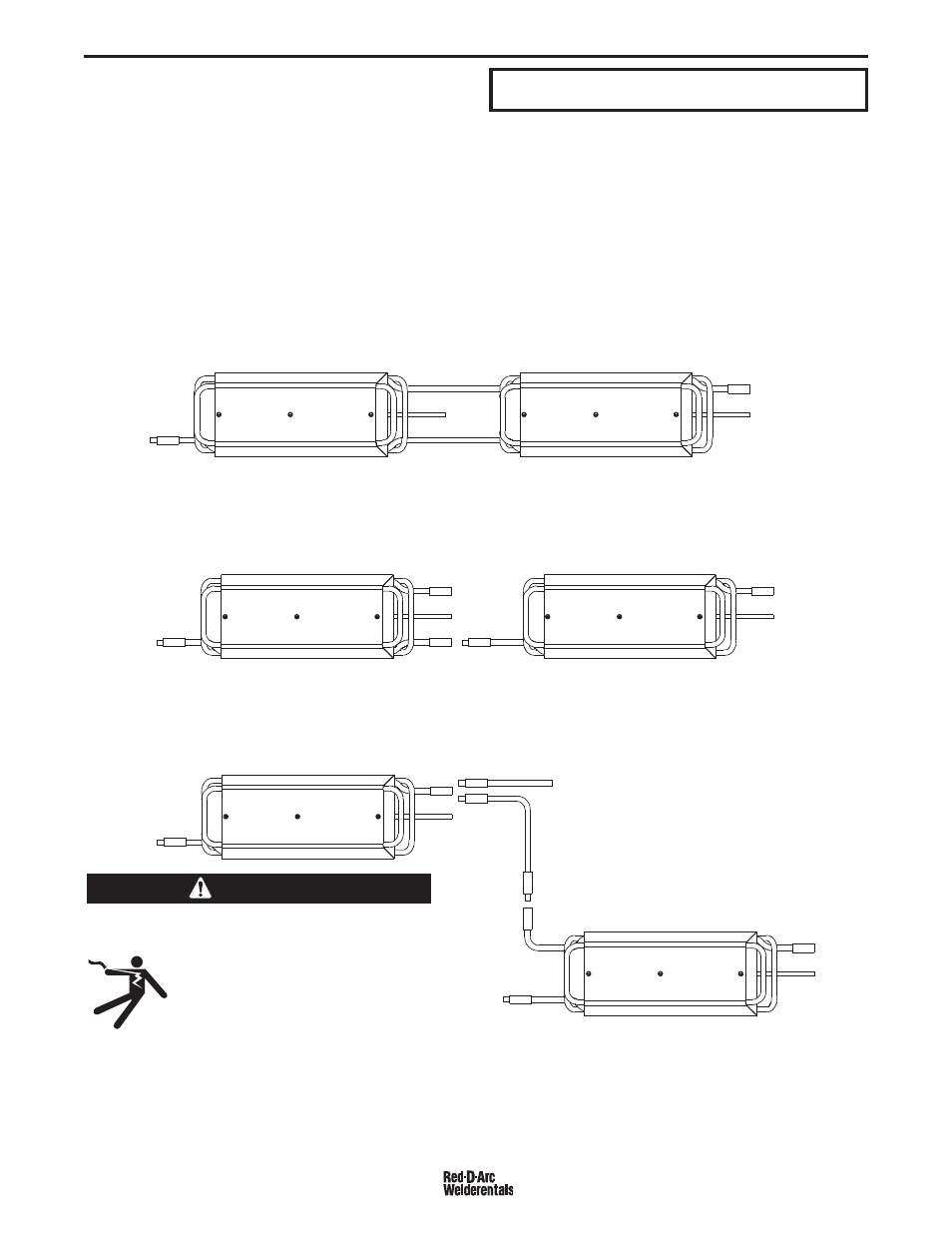

DAISY CHAIN OPERATION
FIXED PARALLEL OPERATION
TO
WORK
TO POWER
SOURCE
TO WORK
TO ELECT.
TO POWER
SOURCE
TO WORK
TO ELECT.
TO WORK
TO ELECT.
SEPARABLE PARALLEL OPERATION
TO WORK
TO WORK
TO POWER
SOURCE
TO POWER
SOURCE
TO WORK
TO ELECT.
TO ELECT.
PARALLEL
JUMPER
+
IN
+
IN
ELECT.
+
+
IN
+
IN
ELECT.
+
+
IN
+
IN
ELECT.
+
+
IN
ELECT.
+
+
IN
+
IN
ELECT.
+
ELECT.
+
ELECT.
+
ELECT.
+
Figure 2
ELECTRIC SHOCK can kill.
Paralled units may be powered from
more than one source. Disconnect all
inputs, including outputs from other
sources before working on the equip-
ment. Before removing the parallel
jumper be sure both Converters are
switched OFF. If not, the male side of the first dis-
connection will be electrically "hot" to work.
------------------------------------------------------------------
WARNING
RED-D-ARC MX350
