A-7 INSTALLATION
RED-D-ARC LN-25™ PRO EXTREME
A-7

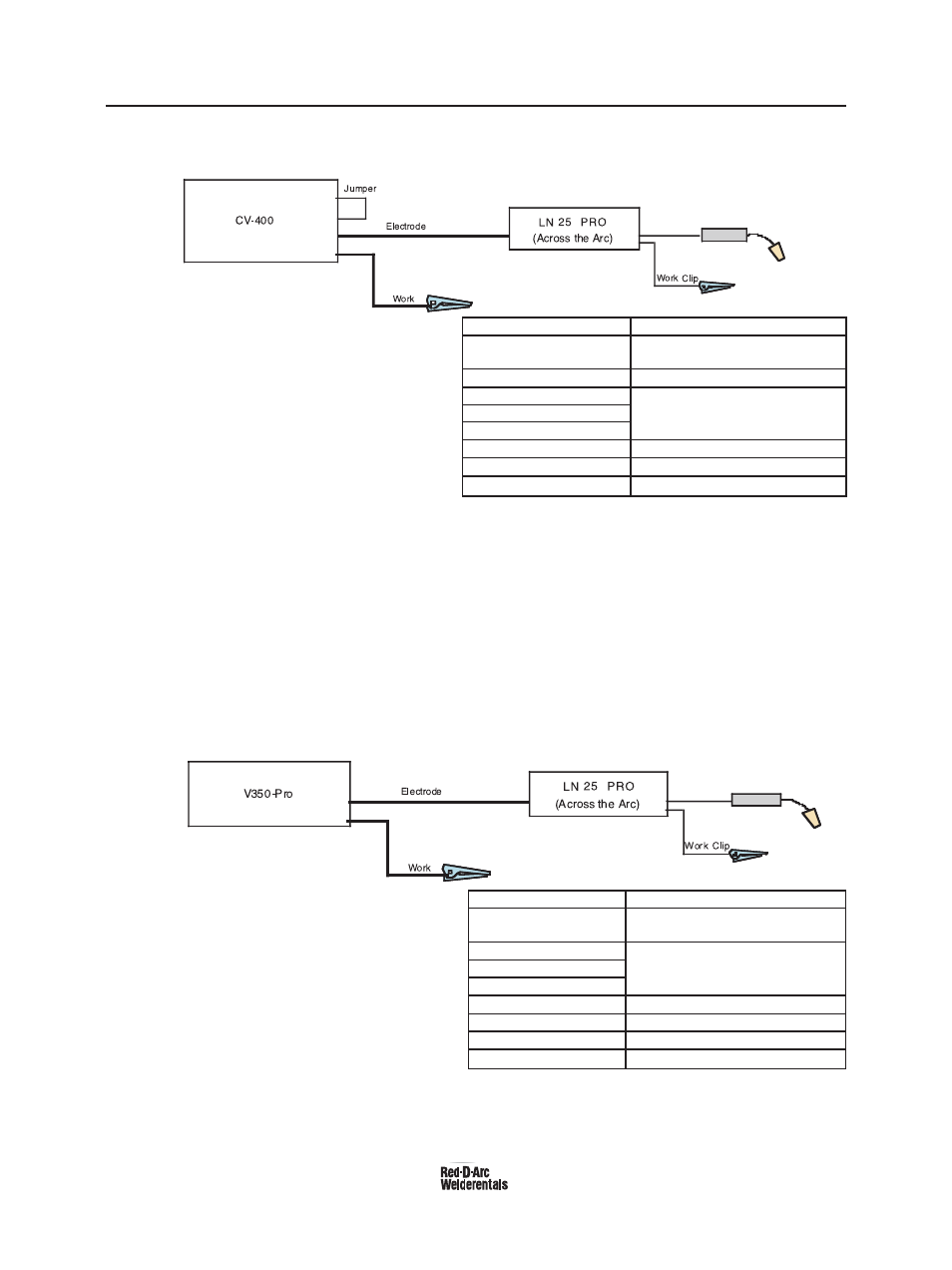

CV Power Sources with Stud Connectors and no
Remote/Local Switch. (See Figure A.7)
Place CV/CC switch in the feeder in the "CV" position.
CV Power Source with Twist-Mate Connectors and
Remote/Local Switch. (See Figure A.8)
Place CV/CC switch in the feeder in the "CV" position.
-
-
FIGURE A.7
FIGURE A.8
K#
K2613-4
KP484
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum ® Literature
K1803-1
Description
LN-25™ PRO EXTREME
WITH DIGITAL METERS
Jumper Plug Kit
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables
K#
K2613-4
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum ® Literature
K1841-XX
K852-95
Description
LN-25™ PRO EXTREME
WITH DIGITAL METERS
Drive Roll Kit
Welding Gun
CV power Source
Welding Cables
Twist-Mate Cable Plug
