A-6 INSTALLATION
RED-D-ARC LN-25™ PRO EXTREME
A-6
ACROSS THE ARC SET-UPS
CC Power Sources with Output Terminals Always
Hot (See Figure A.5)
If the power source has a Remote/Local switch,
place the switch in the Local position.
Place the CV/CC switch in the feeder in the "CC"
position.
CV Power Sources with Stud Connectors and
Remote/Local Switch (See Figure A.6)
Place the power source Remote/Local switch in the
Local position.
Place CV/CC switch in the feeder in the "CV" posi-
tion.
-
®
®
®
®
®
®
®
-
FIGURE A.5
FIGURE A.6
K#
K2613-4
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum ® Literature
K1803-1
Description
LN-25™ PRO EXTREME
WITH DIGITAL METERS
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables

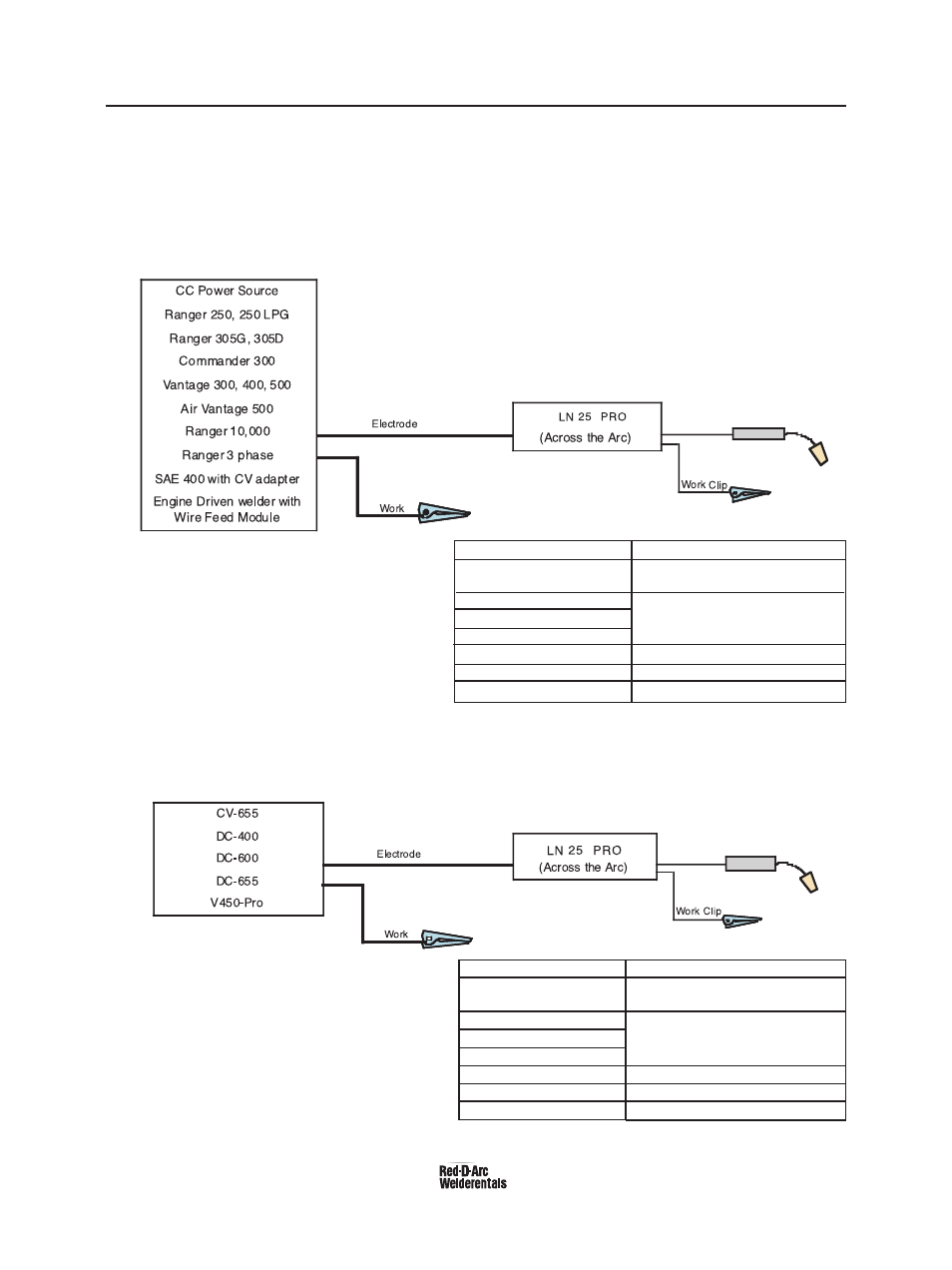

POWER SOURCE TO LN-25™ PRO EXTREME
CABLE CONNECTION DIAGRAMS
K#
K2613-4
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum ® Literature
K1803-1
Description
LN-25™ PRO EXTREME
WITH DIGITAL METERS
Drive Roll Kit
Welding Gun
CV power Source
Welding Cables
