Diagrams – Lincoln Electric IM922 LN-23P User Manual
Page 25
F-6
DIAGRAMS
F-6
LN™-23P
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. G
ive the equipment code number.

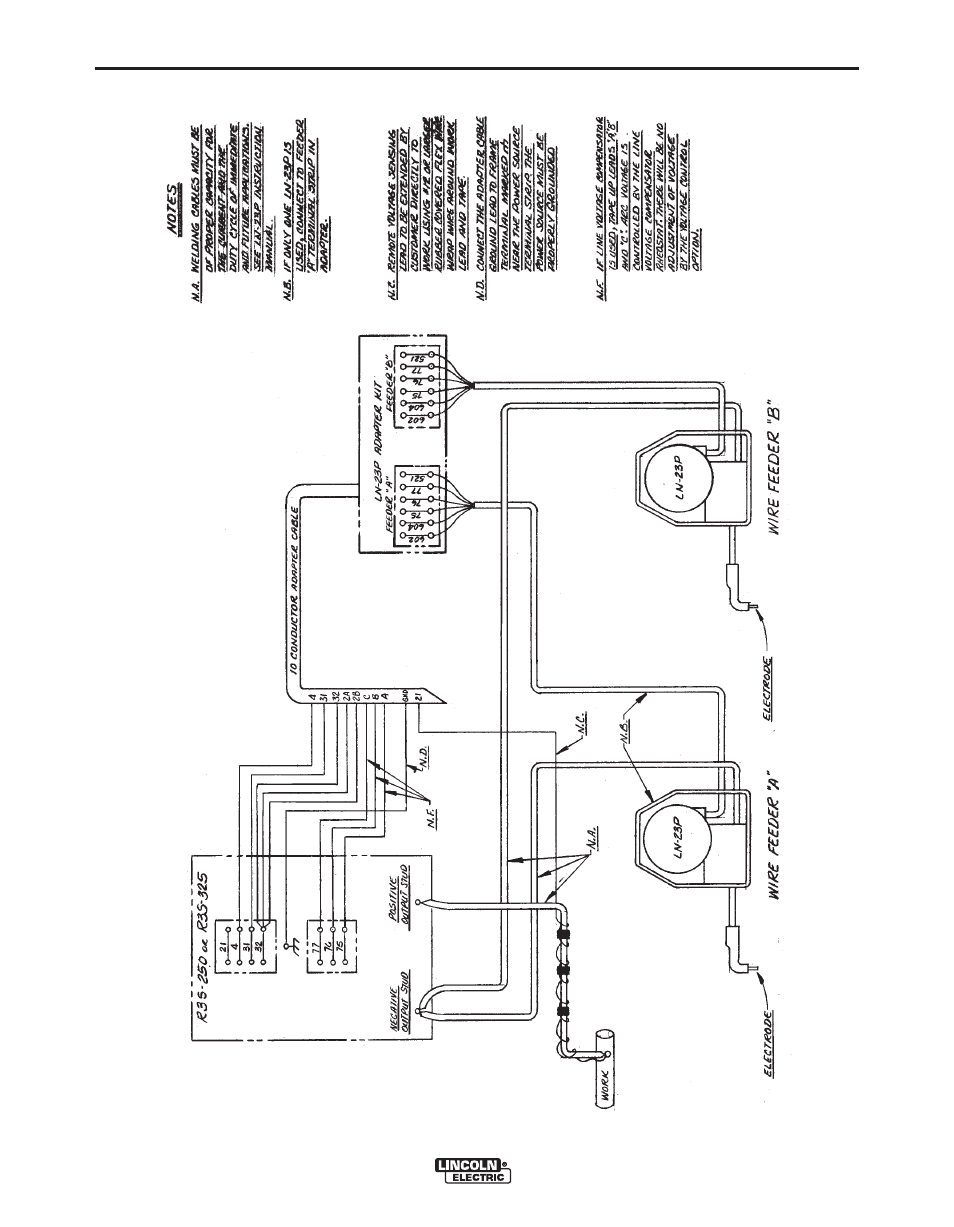

CONNECTION OF LN™-23P
AND
ADAPTER KIT T
O R3S-250 OR R3S-325
M-14270
12-7-2001
