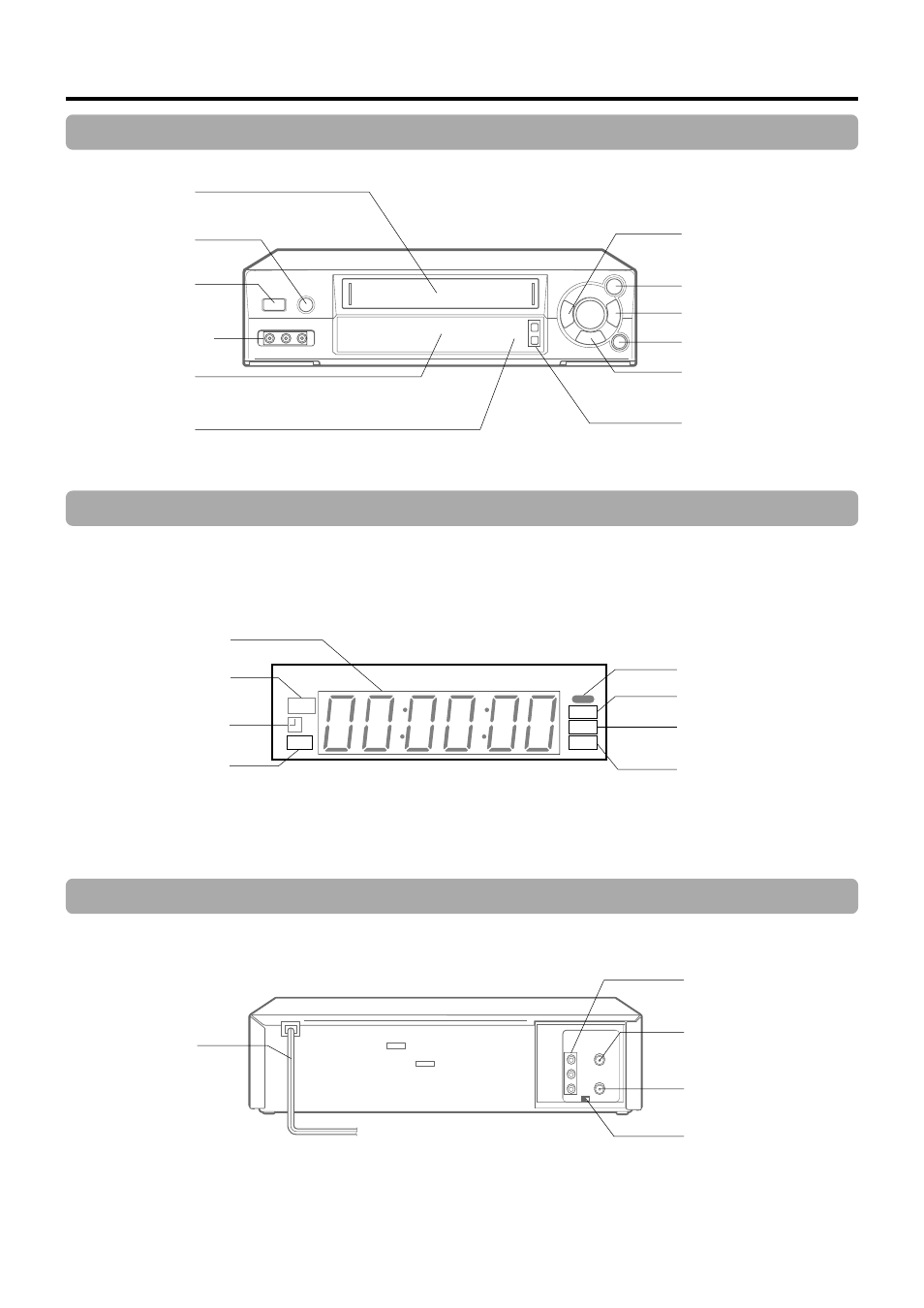

Parts and controls
Front panel
Rear panel
CHANNEL N / M buttons
AC cord
CH 3/4
selector
w REC (Recording)/OTR (One-
Touch Recording) button
Z STOP/EJECT button
c PLAY button
g F FWD (Fast-Forward)/
] button
POWER button
Remote sensor
Cassette compartment
ONE-TOUCH
PLAYBACK button
f REW (Rewind)/ [ button
AC cord
VIDEO OUT/AUDIO
OUT L/R jacks
UHF/VHF IN (ANT)
connector
UHF/VHF OUT (TV)
connector
VHF/UHF
IN (ANT)
OUT (TV)
Display window
LINE VIDEO IN/AUDIO IN
L(MONO)/R jacks
Display window
a PAUSE/STILL button
Clock/Tape counter/Tape
operation indication
ATR (Auto Tracking) indiator
Timer indicator
OTR (One-Touch Recording)
indicator
Tape speed indicator AM/PM indicator
VCR indicator
Power indicator
