4. Operating Instructions

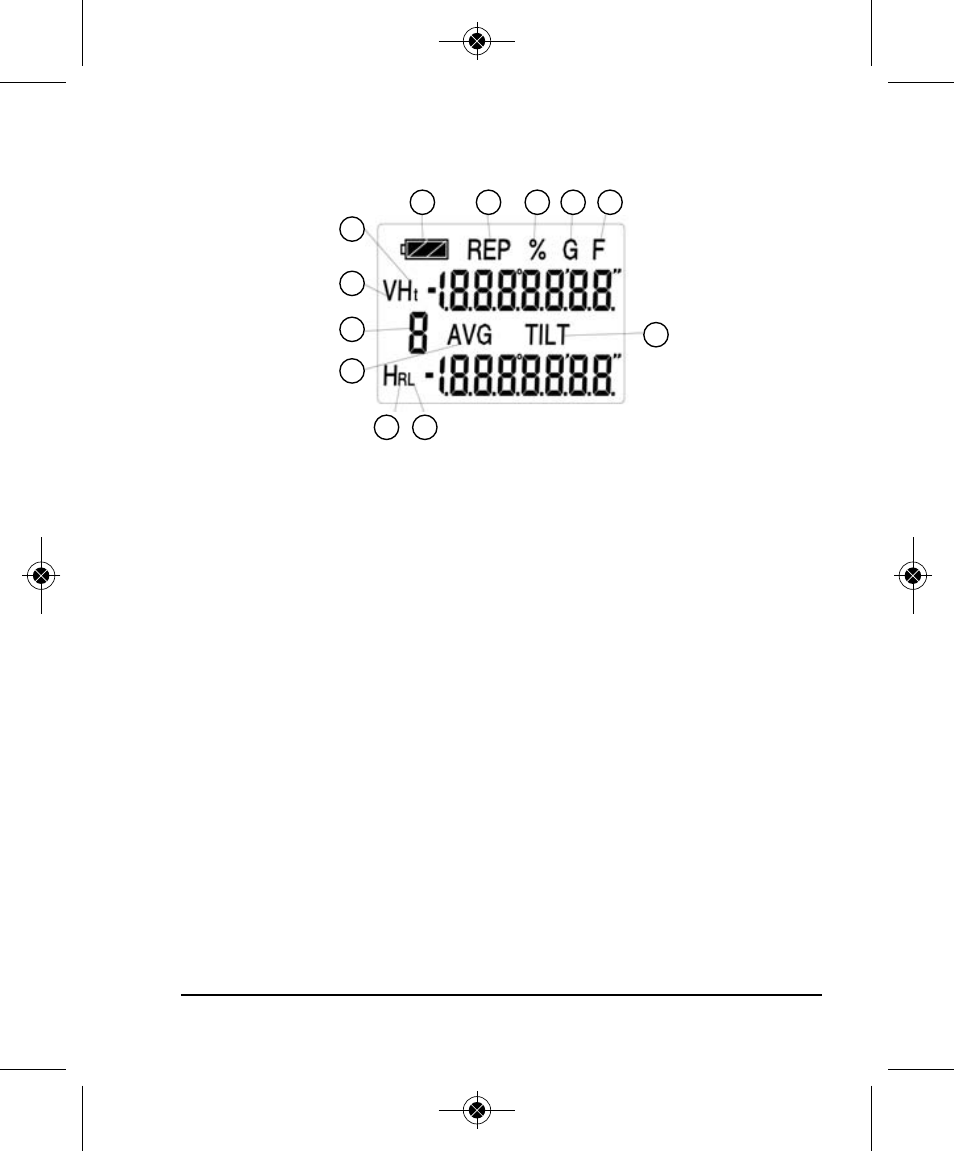

Display and Display Explanation
1. Ht - Total value of repeated angles measured
2. V - Vertical angle
3. Number of repeated measurements
4. AVG - Value of repeated angle measurements
5. HR - Angle increases with clockwise turning
6. HL - Angle increases with counterclockwise turning
7. TILT - Tilt sensor
8. F - Function mode
9. G - Angle unit GON
10. % - Vertical slope in percent
11. REP - Repeated angle measurement mode
12. Battery power indication
Note: If the display shows “b” after activating the tilt sensor, the
instrument exceeds its compensation range and the instrument
should be leveled.
1
2
3
4
5 6
7
8 9 10 11 12
