©2011 Johnson Level & Tool

15

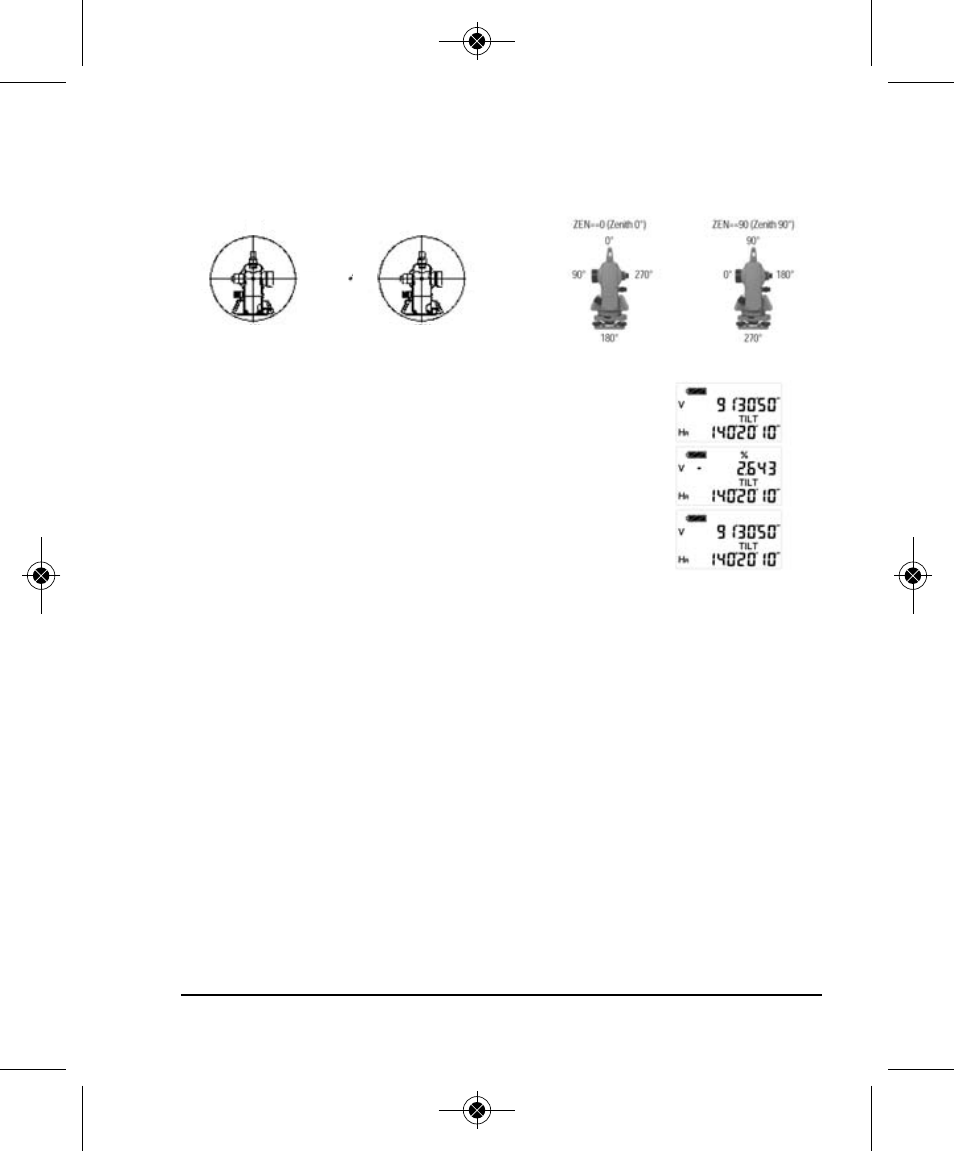

Measurement of Vertical Angle
The angle position can be set as required in the initial setting.

Display of Slope
1. Press the V/% key to switch the vertical

measurement shown from degrees to percent
of grade.

2. Press the V/% key again to switch from grade

percent back to the vertical measurement
shown in degrees.

Note: When vertical angle is converted to slope, the precision of the
slope reading is two digits after the decimal. The value of slope is
displayed only within a 45º (100%). When measure angle exceeds
100%, the percent will be shown as “----”.

90º

180º

270º

90º

270º

180º
