Nm70-i user manual, Chapter 2 – Elitegroup NM70-I (V1.0) User Manual
Page 24
Chapter 2
20
NM70-I USER MANUAL

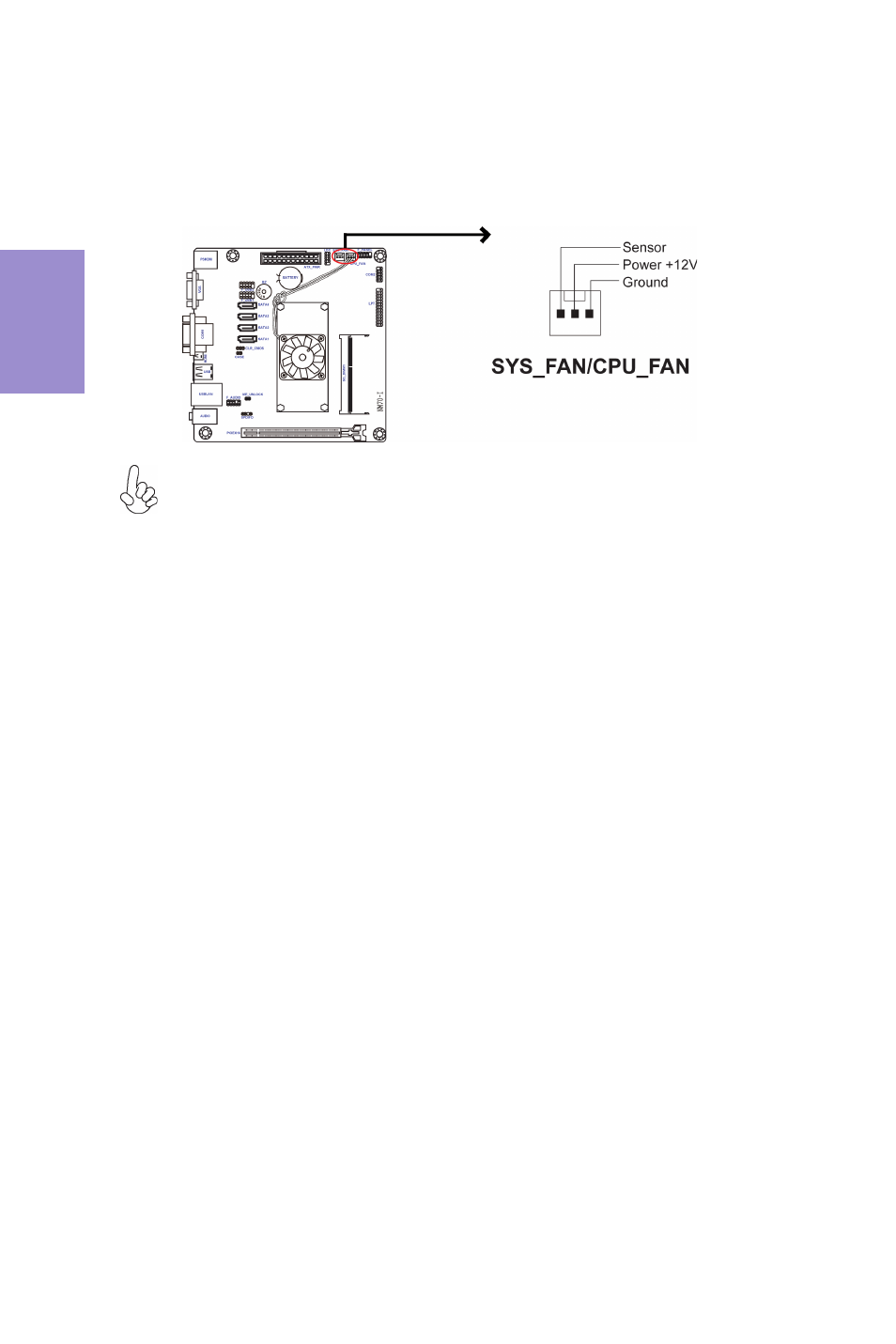

2 & 3 . SYS_FAN (System Cooling FAN Power Connector) &CPU_FAN (CPU cool-
ing FAN Power Connector)
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
