Elitegroup A530_TM5600 User Manual
Page 96
82
4
4
.
.

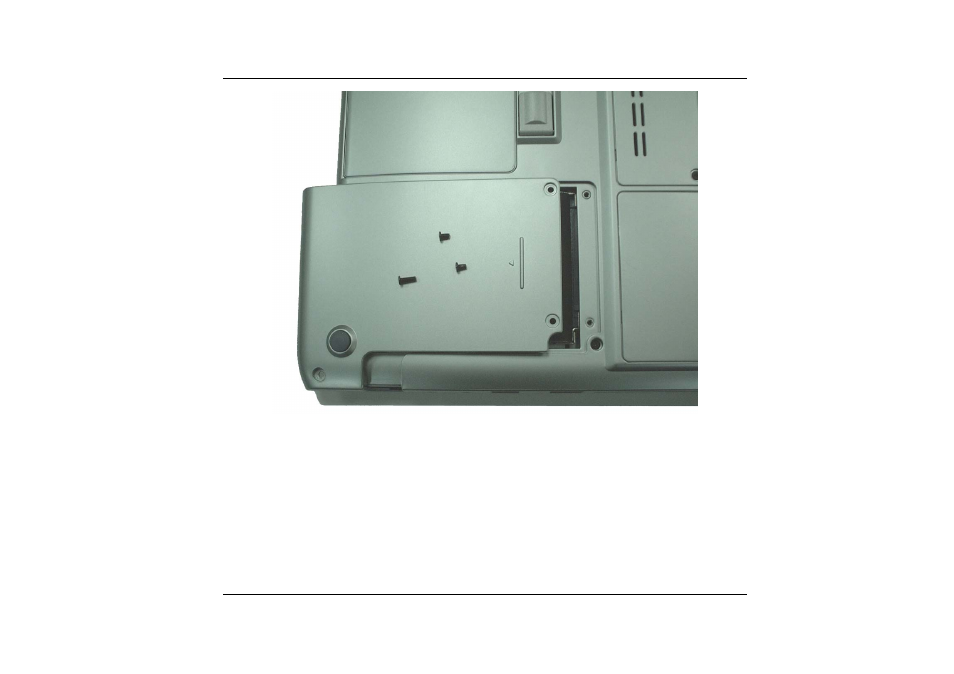

The drive is attached to a special bracket that secures it to the Mobile PC
computer. There are 4 screws hold the bracket. Remove the screws and set
them in a safe place.
5
5
.
.
Push the HDD slightly in the direction of the arrow as shown in the illustration
to release it from the pins of the drive.
6
6
.
.
Gently hold the grip of the HDD, lift it up to release from its compartment.
