Chapter 2
15
Z87H3-A4 USER MANUAL
Install the VGA Card in the PCIE X16 slot
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
1. For some add-on cards, for example graphics adapters and network adapt-
ers, you have to install drivers and software before you can begin using the
add-on card.
Follow these instructions to install an add-on card:

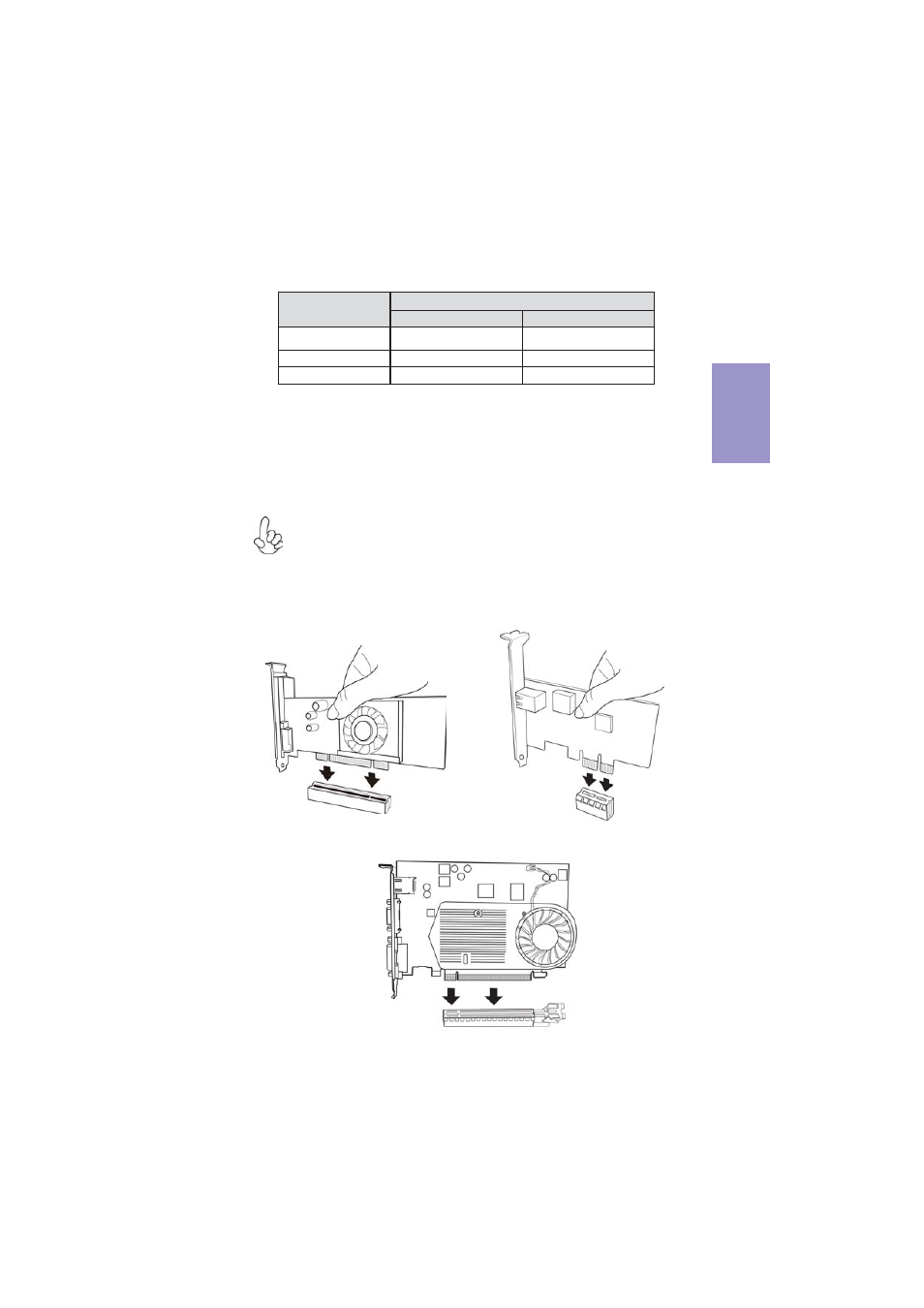

Please refer the following illustrations to install the add-on card:
Install the VGA Card in the PCI slot Install the LAN Card in the PCIE X1 slot
2. The onboard PCI interface does not support 64-bit SCSI cards.
Recommend add_on card configuration
PCIEX16 PCIEX16_S
SPEC PCI-E Gen.3 Running x16 mode PCI-E Gen.2 Running x4 mode
Color Gray Black
1 Graphic Card (VGA card) Populated ~
PCIEX16 Slots
Model
