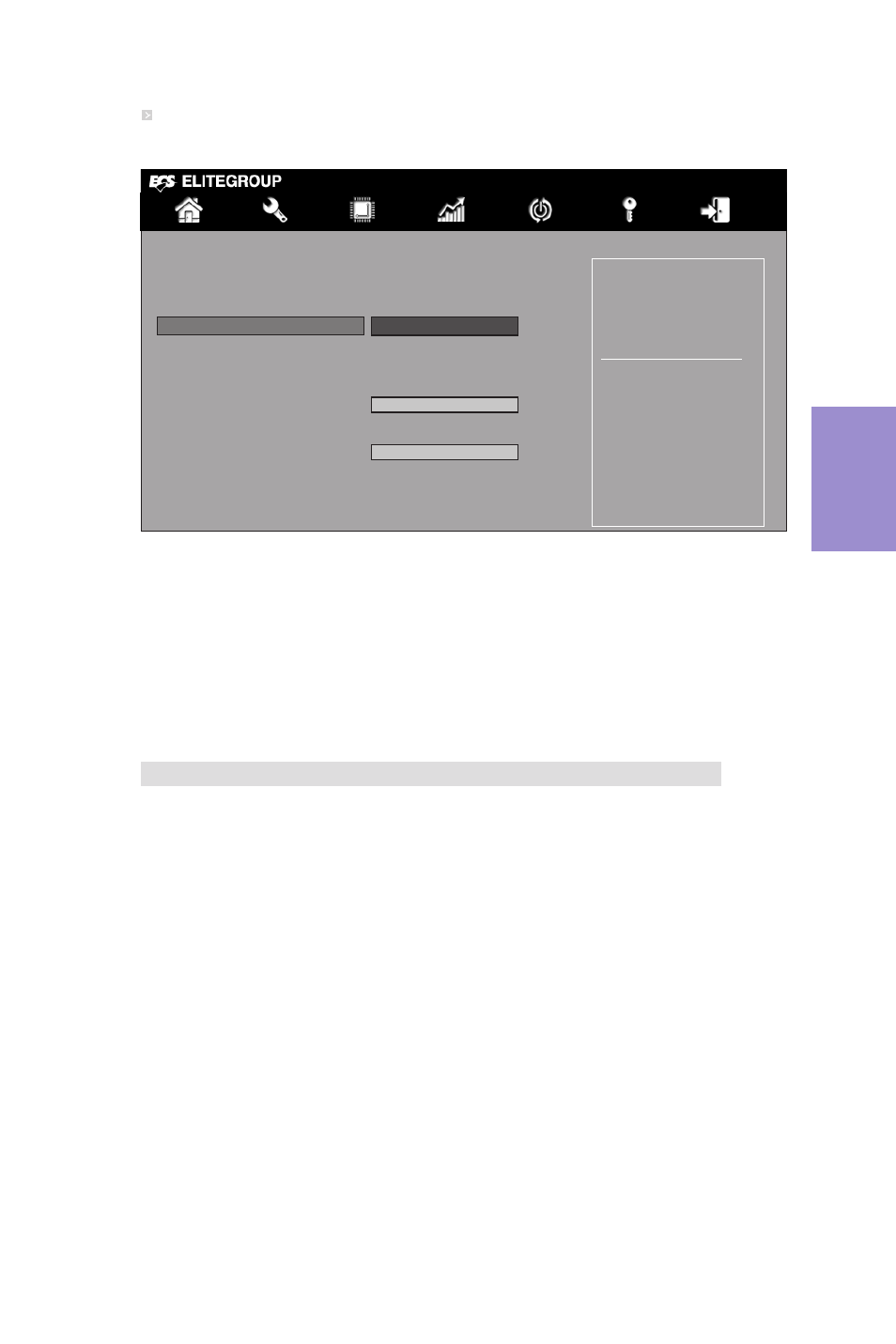

PCI Express Configuration
This page sets up PCI Express configuration.
PCI Express X16_S1 PCIe Speed (Auto)
This item enables you to set the PCIe speed of the PCI Express X16_S1.
PCI Express X1 PCIeSpeed (Auto)
This item enables you to set the PCI Express X1 speed.
Press to return to the Advanced Menu page.
PCI Express 16X Speed (Auto)
This item enables you to set the PCIe X16 speed.
