PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.

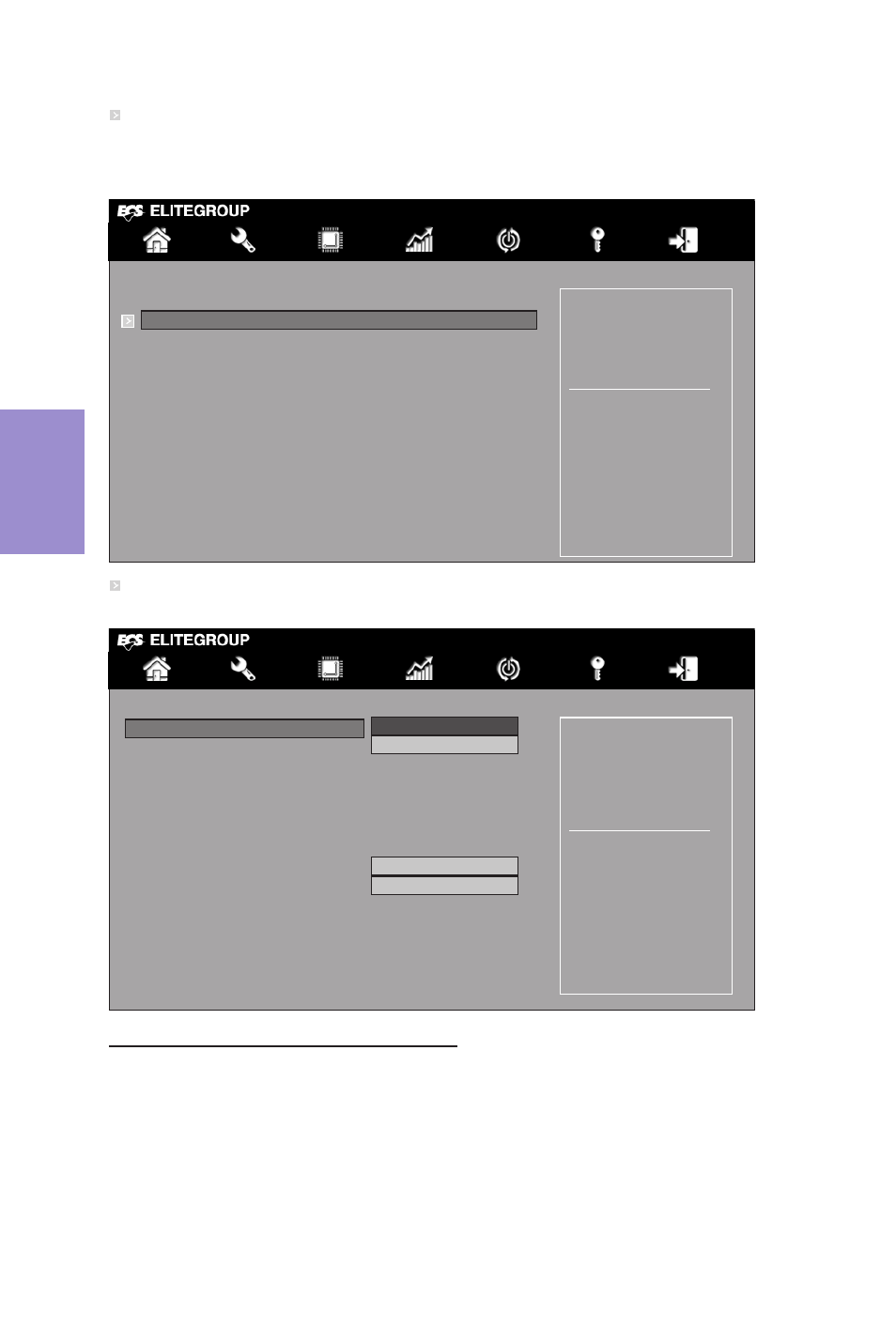

Scroll to this item and press to view the following screen:
Smart Fan Function
CPU/System Fan Smart Fan Control (Enabled)
These items enable you to define the CPU/system fan by smartly adjusting the CPU/
system fan. When it is set at certain temperature, the CPU/system fan PWM value
will change accordingly.
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Temperature (DTS) : 50
CPU Fan Speed : 1541 RPM
System Fan Speed : 0 RPM
CPU Voltage : 1.788V
DIMM Voltage : 1.512V
TCC Activation Temperature (DTS) 100
Smart Fan Function
PC Health Status
Enable CPU SmartFan
Main Advanced Chipset M.I.B. III Boot Security Exit
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(DTS)
70
DeltaT +3
Smart Fan Slope PWM value 10 PWM value/unite
CPU Fan Full Speed Offset (DTS) 77
System Fan Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(DTS)
70
DeltaT +3
Smart Fan Slope PWM value 10 PWM value/unite
System Fan Full Speed Offset (DTS) 77
