Chapter 2

B85H3-M USER MANUAL

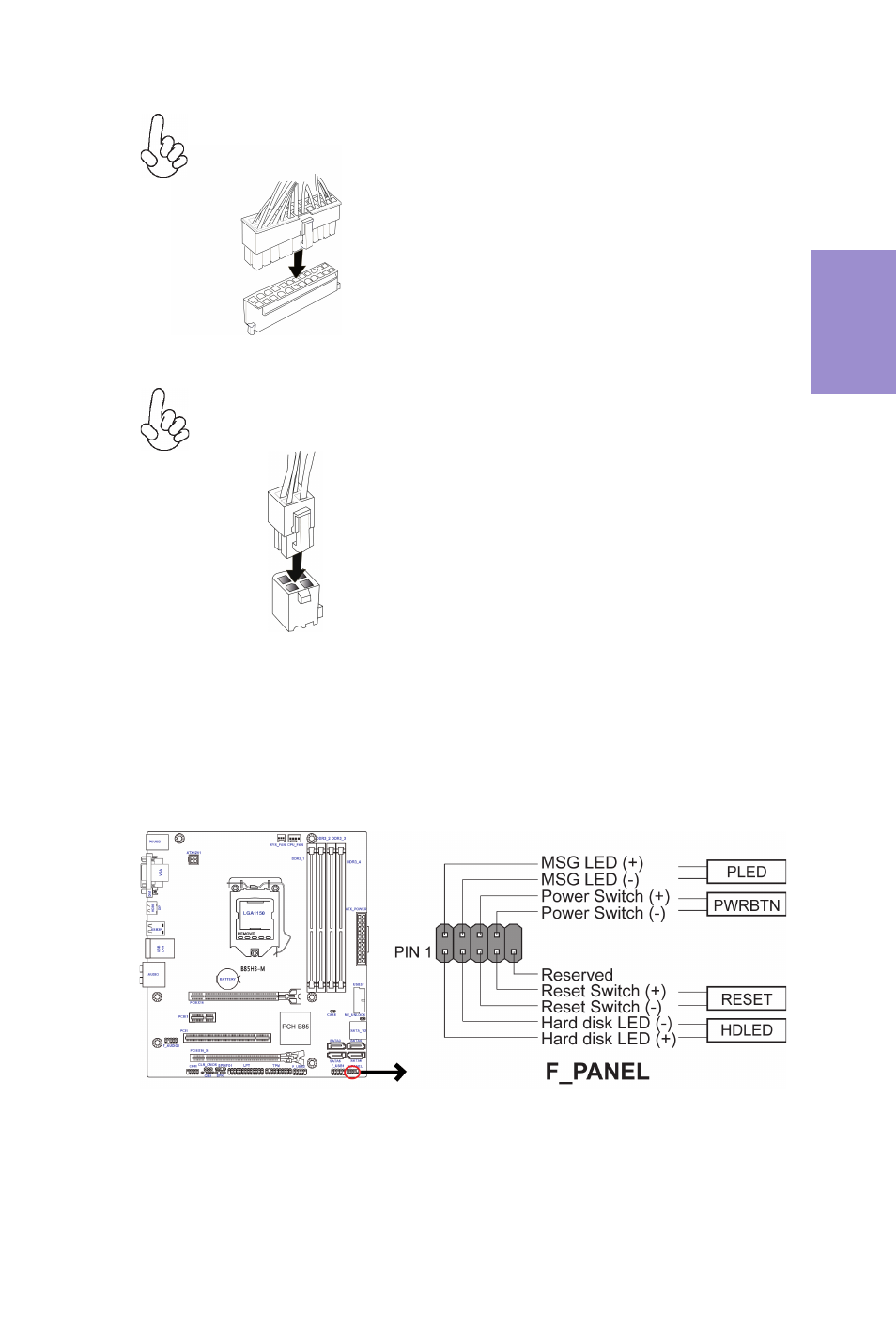

4. F_PANEL: Front Panel Header

The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:

The ATX 24-pin connector allows you to connect to ATX v2.x power supply.

With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.

Connecting 24-pin power cable

24-pin power cable

The ATX12V4P power connector is used to provide power to the CPU.

When installing 4-pin power cable, the
latches of power cable and the ATX12V4P
match perfectly.

Connecting 4-pin power cable

4-pin power cable
