3

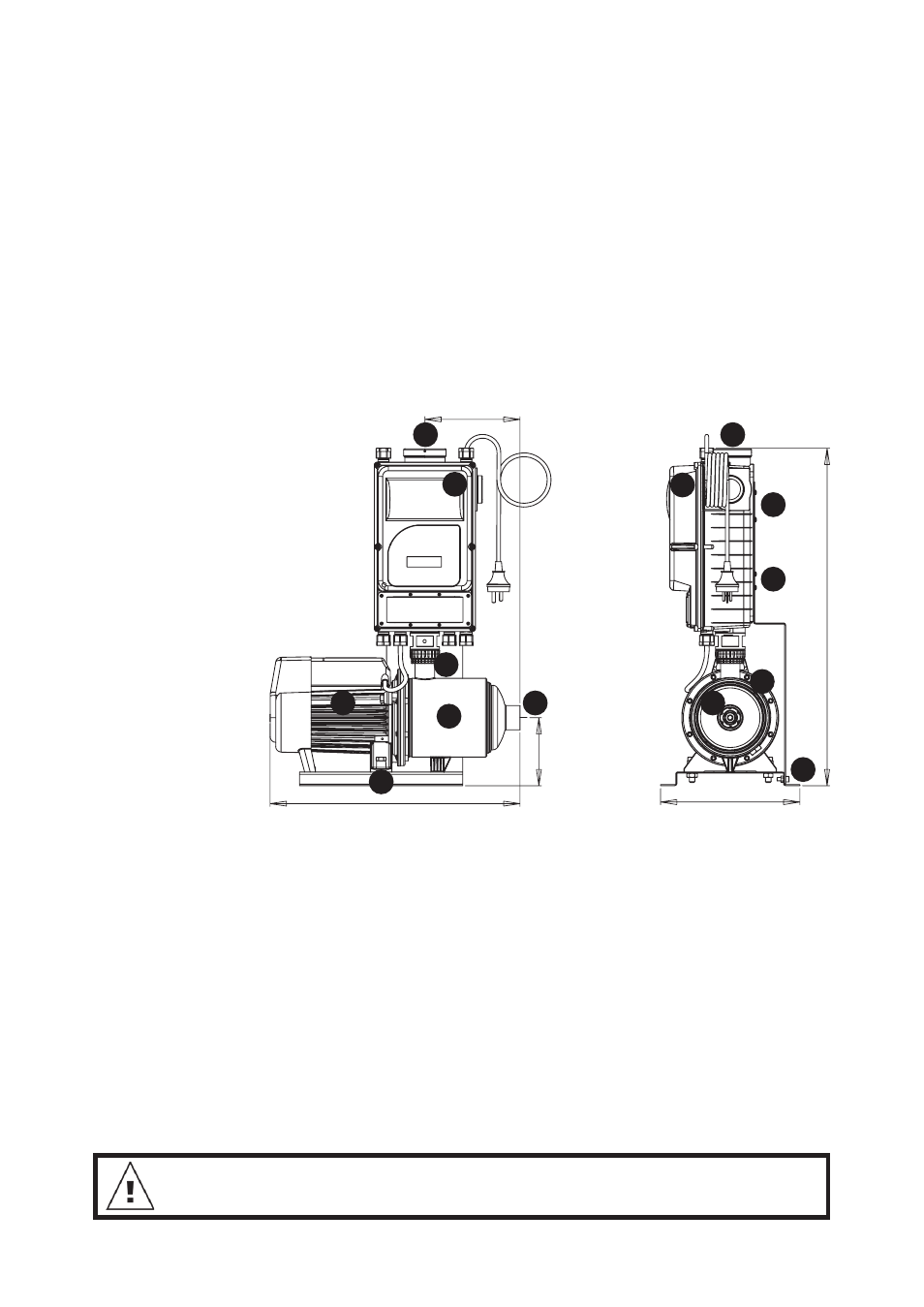

1. Pump Priming Plug
2. Speedman Compact
Control Module
3. Discharge Outlet (1 1 /
4
”
BSPF)
4. Suction Inlet (1 1 /
4
” BSPF)
5. Pump Body
6. Motor
7. Rotary Coupling
8. Motor Mounting Bolts
9. Controller Mounting
Screws
10. Support Bracket
Capscrews
All measurements
in mm.
Preparing Your System
On removing your Speedman Compact system from the carton check
that the standard orientation of the pump inlet and controller is suitable. If
required, the inlet can be re-orientated 180 degrees.
To rotate the pump inlet to the alternate position, prior to installation, undo
the two motor mounting bolts (8), the four controller mounting screws
(9) and the two support bracket capscrews (10). The pump can then be
rotated relative to the controller by loosening the rotary coupling slightly
(7). Re-position the support bracket to the holes on the opposite end of the
mounting base and re-affix with the support bracket capscrews. Re-position
the pump and controller on the base, tightening all items (7, 8, 9 and 10)
carefully.
Technical Features and Usage Conditions
• Operational temperature: 0ºC to +40ºC
• Maximum humidity: 50% at +40ºC (no condensate)
• Temperature of fluid: +1ºC to +40ºC
• Nature of fluid: water with no chemical additives (ph 5 to 9)
• Power Supply: Single phase: 230 Vac 50Hz*
• Set point pressure: preset at 2.5 bar (250kPa) and adjustable between
1.0 to 7.5 Bar (100 to 750kPa), ± 0.2 Bar
• Overpressure Maximum: 12 Bar
• Electric safety and electromagnetic compatibility: EN60730, EN61000-6-3,
EN61000-6-4
*For 60Hz operation consult your Davey Water Products dealer for advice.
Only connect the discharge pipework to the discharge port. The
priming port is not a discharge port.
125
256
620
22
8
230
11
460
175
1
10
2
3 3
9
9
4 6
7
8
5
4
2
