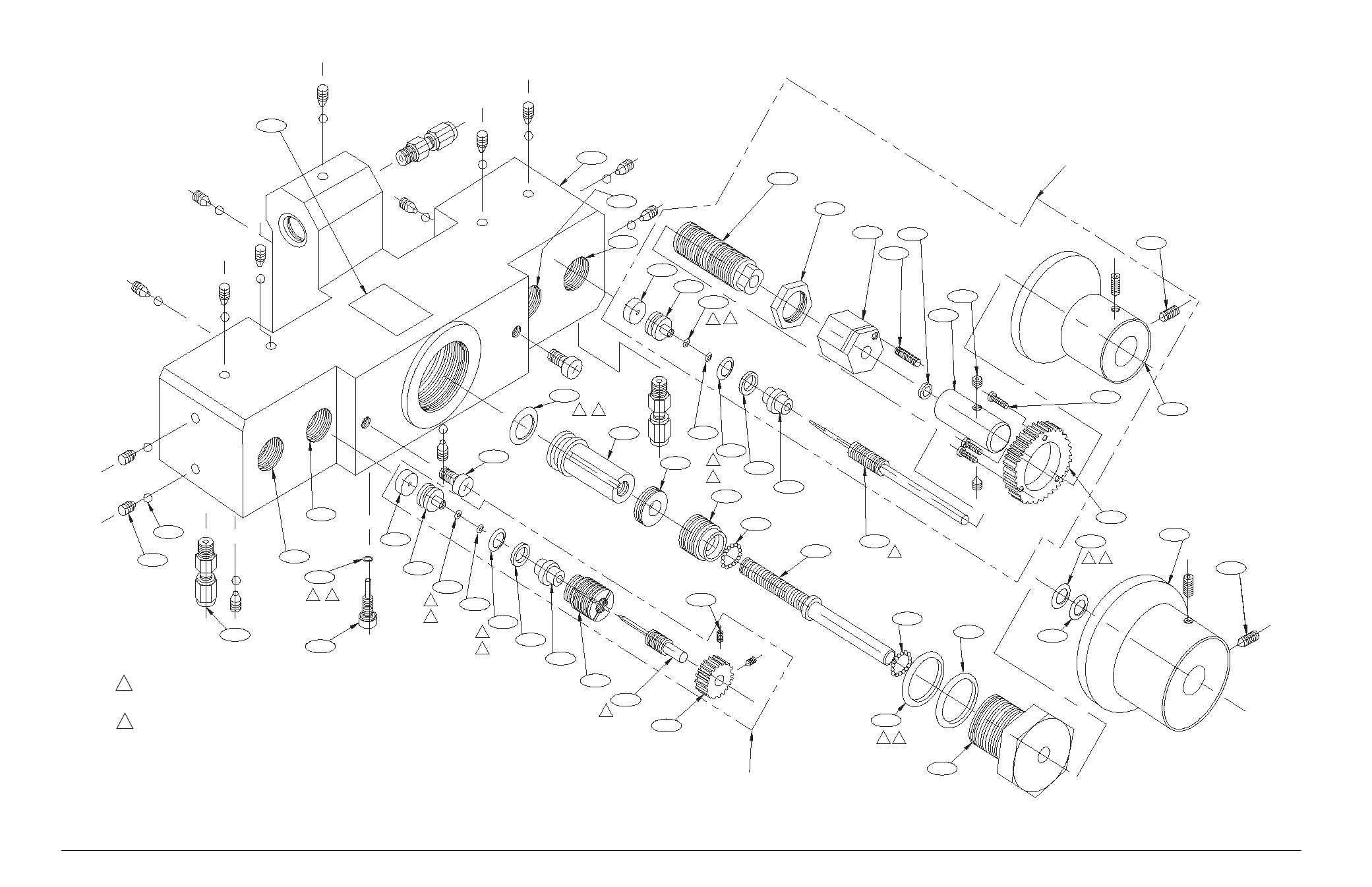

Figure 2-10. ORION-3A, Exploded View
15
32
20
12
41/16X
14
41/16X
29
13
27
17
25/2X
25/2X
23/2X
3
4
5
24/3X
33
34
2
1
10
11
8
30
27
31
31
28
9
7
8
30
27
19
6
18
26/2X
43
21/14X
16
36
35/2X
B
A
C
D
1
1
1
1
2
1
1
1
1
2
2
2
1
2
2
2
42/3X
7
9
28
38
39
40
22/14X
1 2
NOTES:
LIGHTLY COAT THE FOLLOWING WITH LUBRICANT, PN 55593
O-RINGS, ITEMS 27, 28, 29, 32 & 40.
THREADS ON VALVE NEEDLES, ITEMS 11 & 18.
1
2 FOR REFERENCE ONLY:
O-RING, ITEM 27, .239 ID
O-RING, ITEM 28, .042 ID
O-RING, ITEM 29, .799 ID
O-RING, ITEM 32, .424 ID
O-RING, ITEM 40, .145 ID
THESE COMPONENTS TO BE INSTALLED
AT LOCATIONS B & C
THESE COMPONENTS TO BE INSTALLED
AT LOCATIONS A & D
