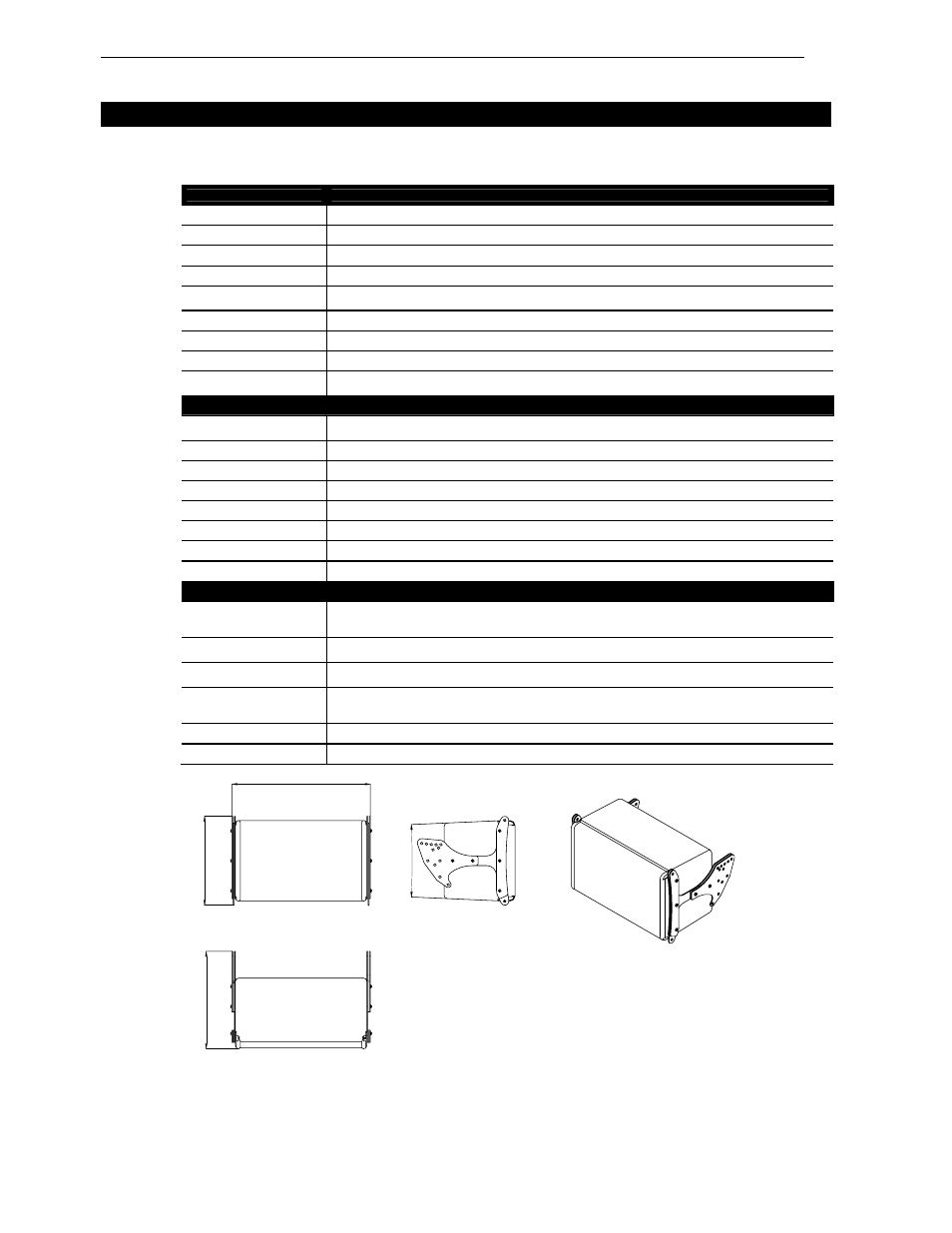

P.28 TECHNICAL SPECIFICATIONS
T ECHNICAL S PECIFICATIONS
GEO S805
SYSTEM SPECIFICATIONS GEO S805 with NX242 TDcontroller
Frequency Response [a] 67 Hz – 19 kHz ± 3 dB
Usable Range @-6dB [a] 60 Hz – 20 kHz
Sensitivity 1W @ 1m [b] 99 dB SPL Nominal -97 dB SPL Wideband
Peak SPL @ 1m [b] 125 to 128 dB Peak for a single cabinet. Configuration dependant when arrayed.
Dispersion [c] Coupling Plane: Not useable as a single cabinet. Configuration dependant
Non-coupling plane: 120° (configurable to 80°).
Directivity Index [c] Not useable as a single cabinet. Configuration dependant
Crossover Frequency 1.8 kHz Passive
Nominal Impedance 16 ohms
Recommended Amplifiers 1500 to 3000 Watts into 4 ohms / 4 cabinets per channel. Up to 6 cabinets per channel may be connected to
large amplifiers capable of operating into low impedance loads.
FEATURES GEO S805
Components LF: 1 x 8” (20cm) Neodymium Hi-flux 16 Ohm Driver
HF: 1 x 1” Throat Neodymium Driver on a Hyperboloid Reflective Wavesource
Height x Width x Depth 406 x 250 x 219 mm (16” x 9 7/8” x 5 5/8”) without flying hardware
Shape 5° Trapezoid
Weight 13 kg (28.7 lbs) with Tangent Array Assembly System; 10.5 kg (23 lbs) net
Connectors 2 x NL4MP SPEAKON 4 pole (In & Through)
Construction Baltic Birch Ply finish with structured black coating.
Front Finish Perforated Steel Grill
Flying points Integral flying system. Intercabinet Angle Adjustments = 0.31 to 5° (logarithmic steps), 17.5° & 30°
SYSTEM OPERATION
Electronic Controller The NX242 Digital TDcontroller presets are precisely matched to the GEO S8-Series cabinets and include
sophisticated protection systems. Using GEO S Series cabinets without a properly connected NX242 Digital
TDcontroller will result in poor sound quality and can damage components.
HF Dispersion Configuration After quick release of the front grill from its fittings, the HF Waveguide can be configured for 80° or 120°
dispersion in the non-coupling plane.
Array Design Arrays of less than 4 GEO S805 will provide poor dispersion control and are not recommended or supported.
S805 and S830 cabinets, having tangent waveguides, can be mixed in the same array.
Sub-bass The GEO S805 can be used without the optional CD12 Hypercardiod Sub. In this case the NX242 can be used
in stereo. With the CD12 Hypercardiod Sub each Sub channel requires two NX242 outputs and the NX242 will
operate in mono.
Speaker Cables The GEO S805 are wired 1- & 1+ on both Speakon connectors; 2- & 2+ are not connected.
Rigging System See corresponding chapter of this manual.
[a] [b] [c] See
measurement
notes at the end of
CD12
specifications
428 mm 428 mm
276 mm2
7
6
m
m
55
°°
302 mm3
0
2
m
m
Weight: 13 kg/28.7 lbs
