RS18 G ENERAL I NSTRUCTIONS Page 17/54
SP4
Connector
Top View
REAR
Speaker
FRONT
Speaker
FOH
SP4
Connector
Top View
REAR
Speaker
FRONT
Speaker
FOH
SP4
FOH
SP4 Or
1.2 Speaker connection

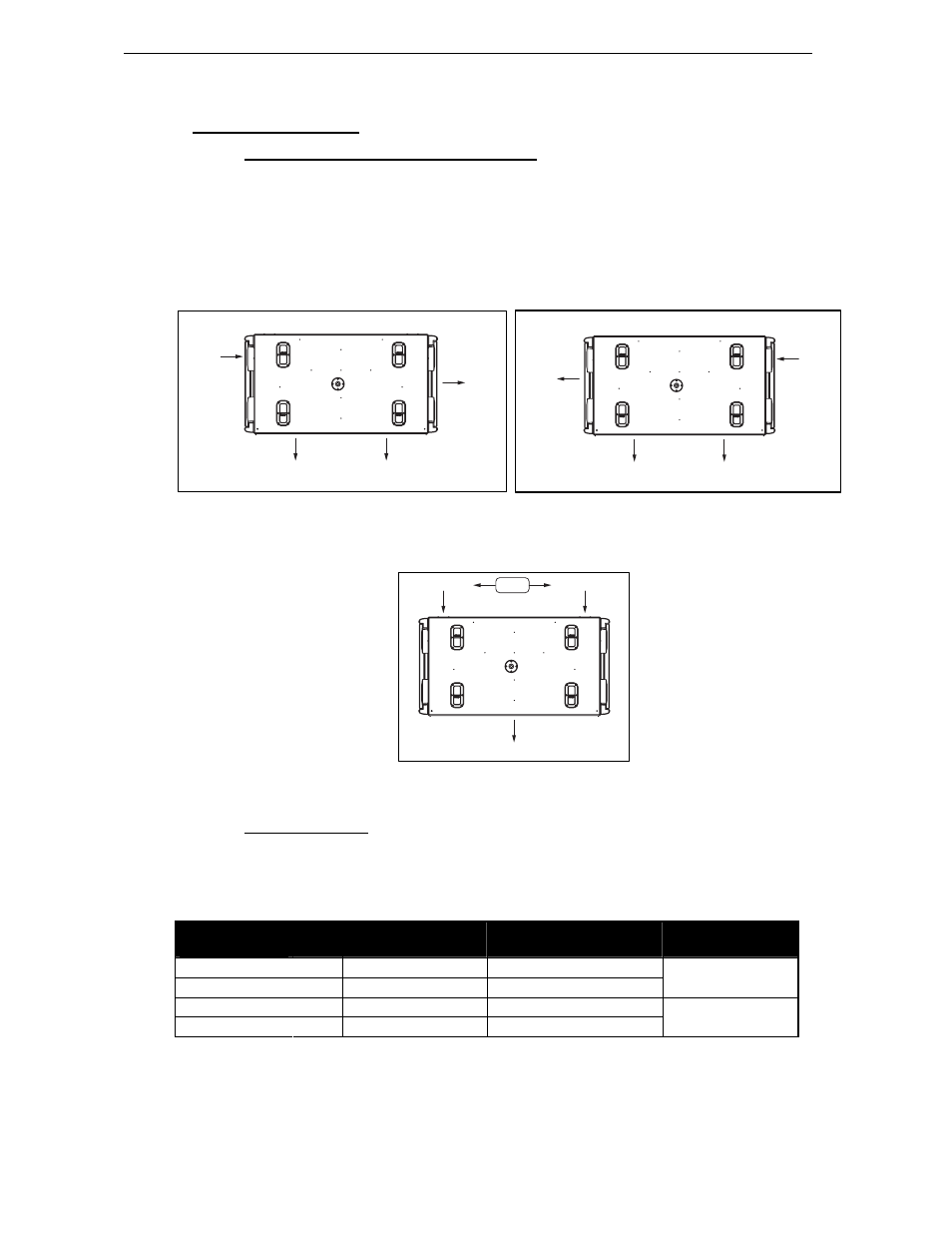

1.2.1 Configuring Connector and Owner plates
Owner and connector plates can be exchanged depending on chosen directional configuration.
Please note that connector plates can pass through the holes, it is therefore not required to unsolder the
connectors.
• Directional Mode : it is recommended to install the connector panel on the side which supports the
rigging plates;
• Connection side is always opposite to FOH (main lobe direction)
CONNECTOR PLATE IN DIRECTIONAL MODE
• Omni Mode: it is recommended to install the connector panel on the side opposite to the drivers
(factory default configuration)
CONNECTOR PLATE IN OMNI MODE
1.2.2 RS18 connectors
RS18 is connected through Speakon NL4FC plugs (not supplied).
Either connector can be used to connect an amplifier or to link to an additional RS18 cabinet.
Connectors are wired as follows:
Speakon NL4F
Connectors
Omni Mode Directional Mode Comment
1(-) ⇒ 18’’ driver Right (-) 18’’ driver Rear (-)
1(+) ⇒ 18’’ driver Right (+) 18’’ driver Rear (+)
Driver Next to Connector
Panel
2(-) ⇒ 18’’ driver Left (-) 18’’ driver Front (-)
2(+) ⇒ 18’’ driver Left (+) 18’’ driver Front (+)
Driver Opposite to
Connector Panel
