Cont ...
CHECKLIST
Item Description Qty Item Description Qty
Pump 1 Outlet hose only 2 (1)
Inlet hose with isolating valve 2 (1)
A
B
C
Your product may vary slightly from the picture above.
The quantities shown above are for twin pumps, (single pumps are shown in brackets).

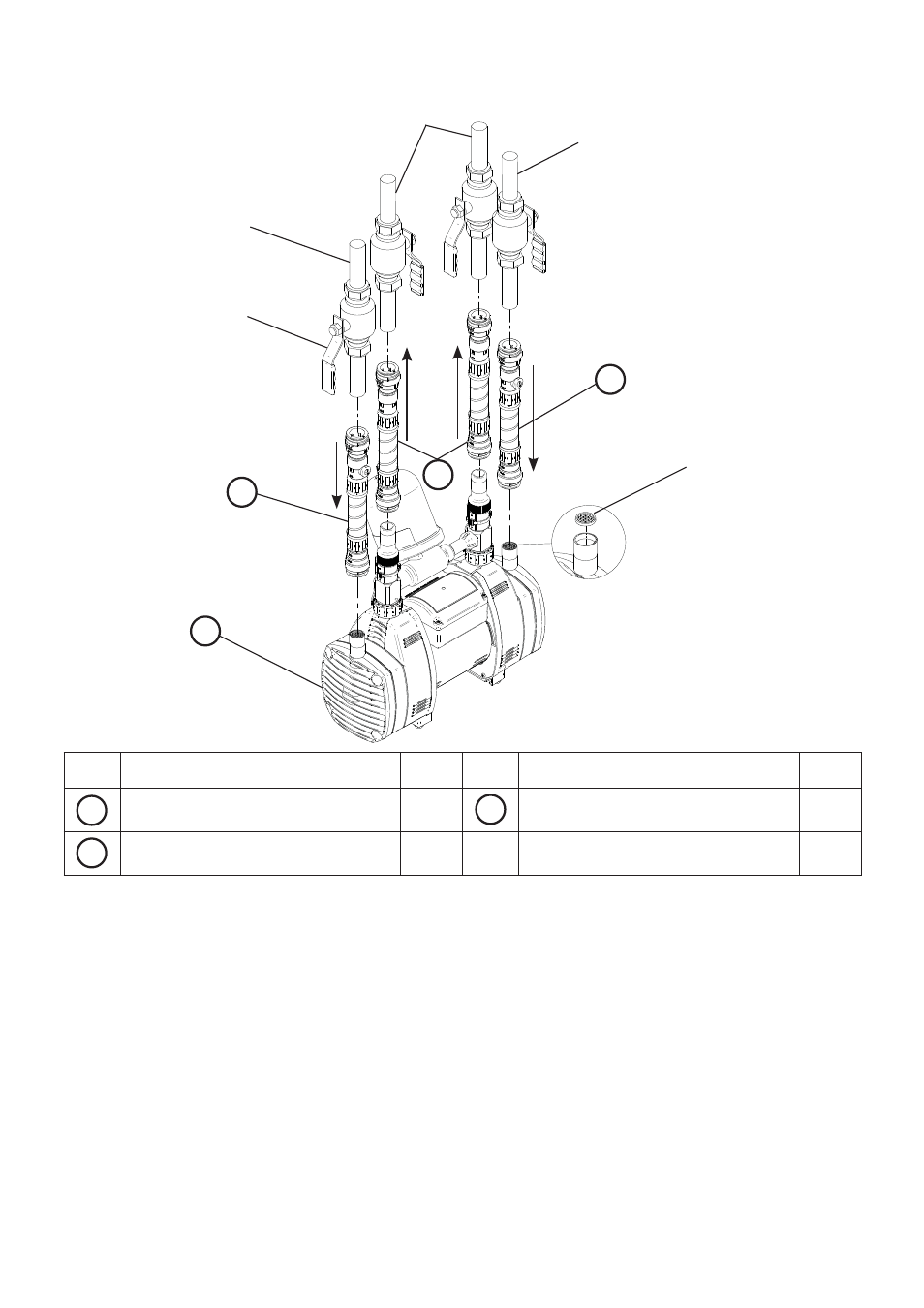

Fig. 1 (Twin pump shown)
22 mm isolation valve
(non restrictive) (not
supplied).
To allow easy service
of pump
22 mm inlet pipework
22 mm inlet pipework
22 mm outlet pipework
A
B
B
C
IMPORTANT: With the
pump removed from its
packaging check for any
damage prior to installation.
If any damage is found
contact Stuart Turner Ltd
within 24 hours of receipt.
Strainer
