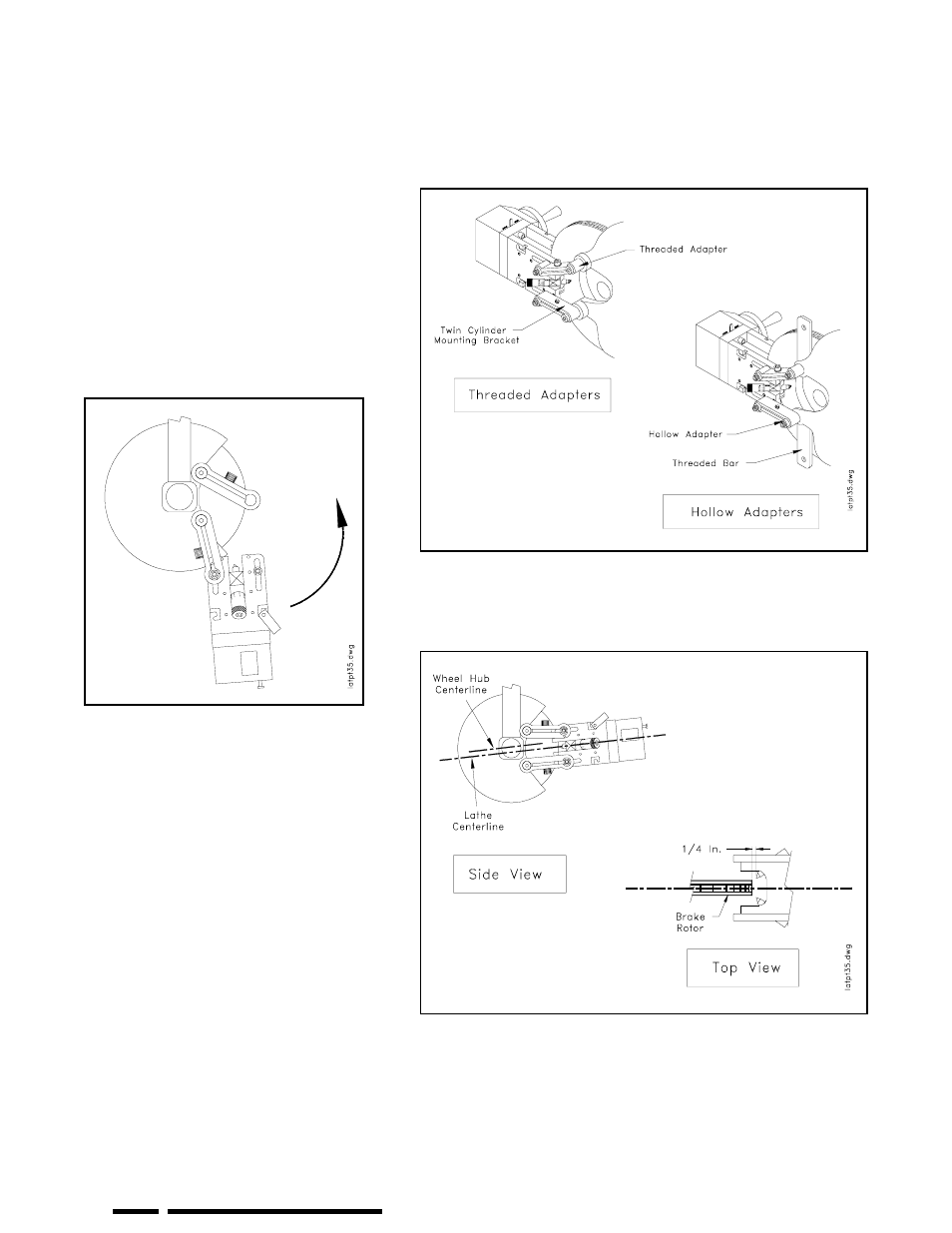

Figure 3 Hang the Lathe
Figure 4 Mounting the Lathe
Figure 5 Positioning the Lathe
MOUNTING THE LATHE
6.
Place Twin Cylinder Mounting
Brackets on each of the Adapters
mounted in the preceding step.
Do not tighten the Allen Socket
Bolts in the Mounting Brackets.
7.
Hang the Lathe on the lower
Twin Cylinder Mounting Bracket
as shown in Figure 3.
8.
Swing the Lathe upwards and
insert the top Twin Cylinder
Mounting Bracket onto the Lathe
mounting bracket. See Figure 4.
9.
Position the Lathe so that the
Lathe centerline is slightly below
the center of the wheel hub and
the brake rotor is centered
between the side plates of the
Lathe. Refer to Figure 5.
10. Tighten Allen Socket Bolts in
both Twin Cylinder Mounting
Brackets.
