MAHLE RTI EV-1 User Manual
Page 5
Page 4 of 7
How to Prepare the Unit

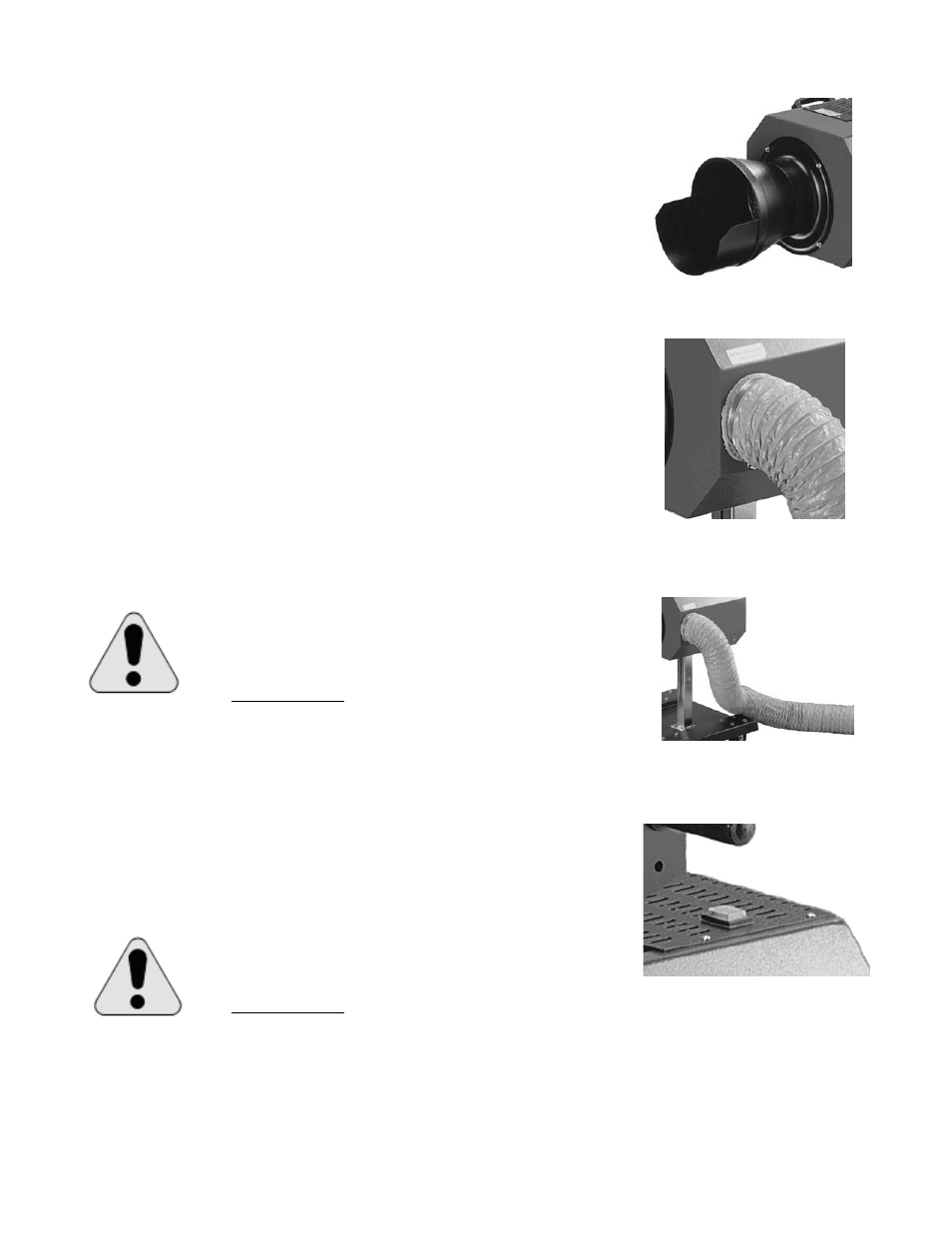

ASSEMBLY OF THE MOUTHPIECE
Attach the mouthpiece as shown in the picture and
fasten it with the provided screws.
MOUNTING OF THE HOSE
Attach the hose and secure it with the clamp
Put the end of the exhaust hose outside. Connect the
electrical plug to the nearest outlet. The EV-1 is now ready
to operate.
ATTENTION!
To use the EV-1 correctly, you must have an upstream
differential protection system of 30 Amp.
Adjust the height of the EV-1 to place the suction mouthpiece
as close as possible to the exhaust pipe. Lock the wheels of
the unit. Turn on the EV-1 and then start the engine.
ATTENTION!
Do not suck up plastic bags, paper, etc. They could close the
grill and impede the exhausting of the exhaust gas.
