TEST COOLANT SYSTEM FOR LEAKS
The MCX-2F can be used to check the coolant system for leaks. The coolant system
is pressurized and the System Pressure Gauge on the MCX-2F is monitored for a drop
in pressure which would indicate a system leak.

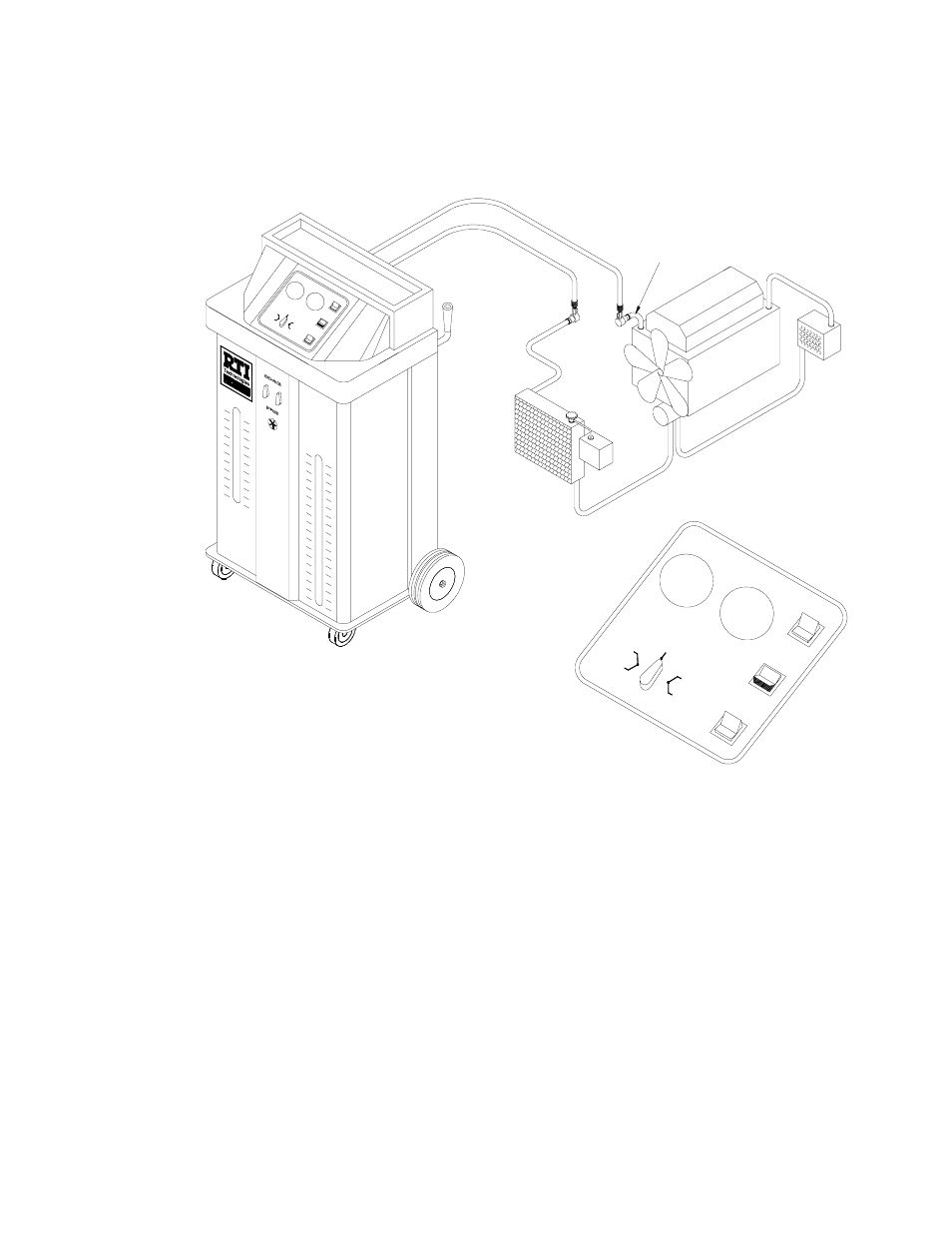

The MCX-2F should be connected a shown above.
1.
Turn both valves on front of MCX-2F to EXCHANGE.
2.
Turn control valve to TEST.
3.
Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
4.
Watch the System Pressure Gauge and press the bottom of the EXCHANGE
COOLANT OR FILL RADIATOR & OVERFLOW selector switch when the
pressure reaches 10 to 13 PSI.
5.
The coolant system is now pressurized. Monitor the pressure for a constant
reading. A coolant system leak is indicated if the pressure falls.
