Parts identification atx-3 – MAHLE RTI ATX-3 User Manual
Page 19
Page 18
1
2
5
5a
6
8
4

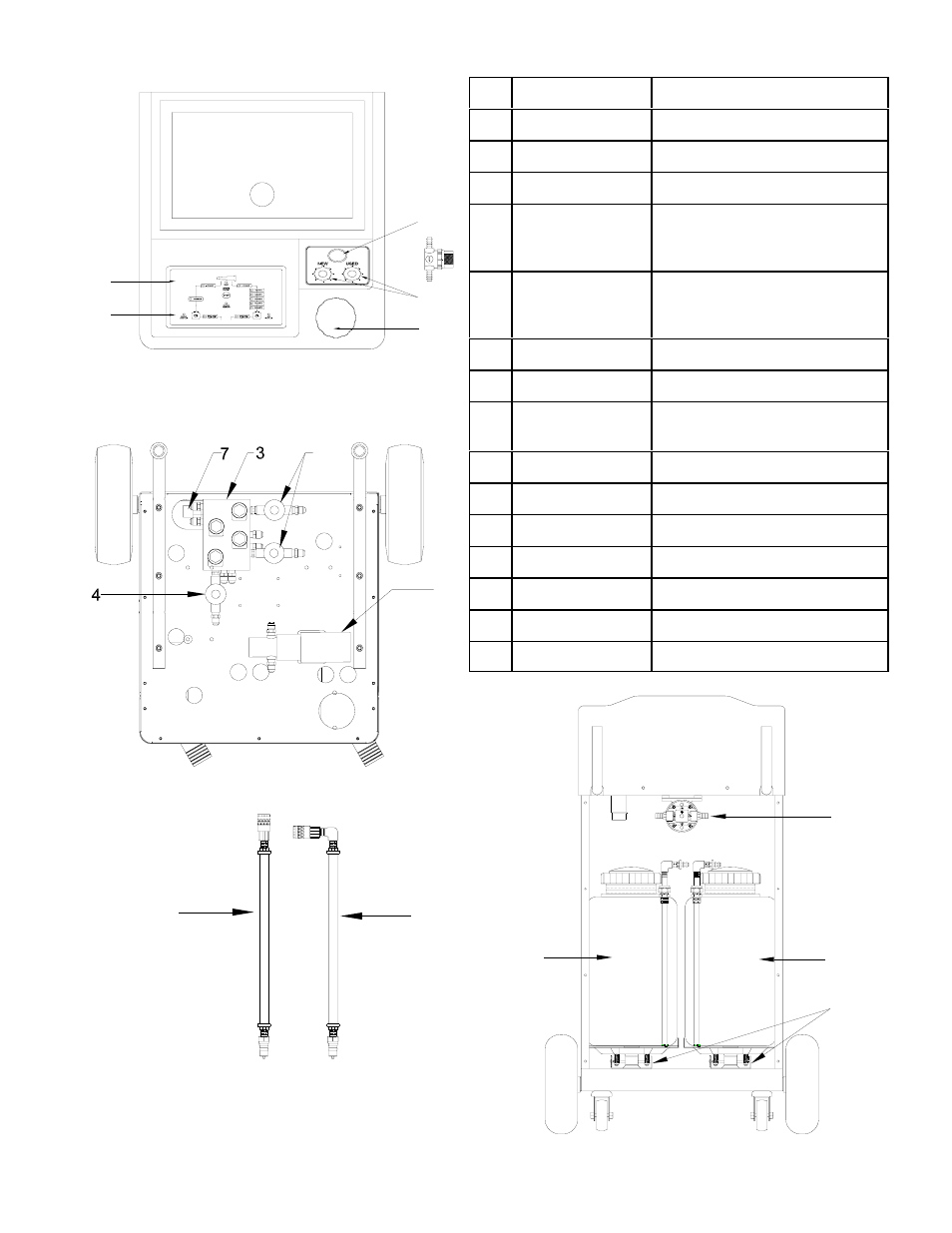

PARTS IDENTIFICATION ATX-3
Part No.
Description
1
024-80119-00
Keypad Overlay
2
024-80121-00
Circuit Board (12VDC)
3
300-80075-00
Manifold Assembly
4
026-80250-00
026-80248-00
Sight Glass 1/4" FPT w/screen
Filter Mesh Cylinder 80 SS
5
026-80247-00
026-80248-00
Glass Sight 3/8" Barb Plastic
w/clear Bowl
Filter Mesh Cylinder 80 SS
5a
300-80028-00
Pressure Gauge
6
021-80164-00
Deck Fill Assembly ATX
7
022-80111-00
Pressure Switch
4-6 psig SPST
8
300-80033-00
Pump Gear .33 GPM 12VDC
9
300-80014-00
Hose Assembly Straight
10
300-80015-00
Hose Assembly 90 Degree
11
300-80038-00
New Fluid Tank Assembly
12
300-80040-00
Used Fluid Tank Assembly
13
031-80002-00
Load Cell 35 Kg
14
300-80074-00
Pump Assembly Diaphragm
11
12
13
14
56
0-8
0414
-0
0
9
10
