Sterling HS - Manual (Page 21)

21
REPLACEMENT PARTS
10 - Fan (1)
11 - Junction Box (1)
12 - Junction Box Cover (1)
13 - Connector (1)
14 - Conduit, Flex (1)
15 - Anti-Short (2)
16 - Screw (4)
17 - Nut Retainer (4)
18 - Bolt (3) Models 24 & 36,
(4)
Models 48/204
19 - Flange Screw
20 - Threaded Inserts
1 - Element (1)
2 - Bottom Jacket Panel (1)
3 - Venturi Jacket Panel (1)
4 - Top Jacket Panel (1)
5 - Motor Mount & Fan Guard*
[Std. Unit Shown]
6 - Motor Mounting Bracket
[3 Phase and/or Explosion Proof]*
7 - Motor Mounting Angle
[3 Phase and/or Explosion Proof]* (1)
8 - Motor [Std. Units]*
9 - Motor [3 Phase and/or Explosion Proof]*

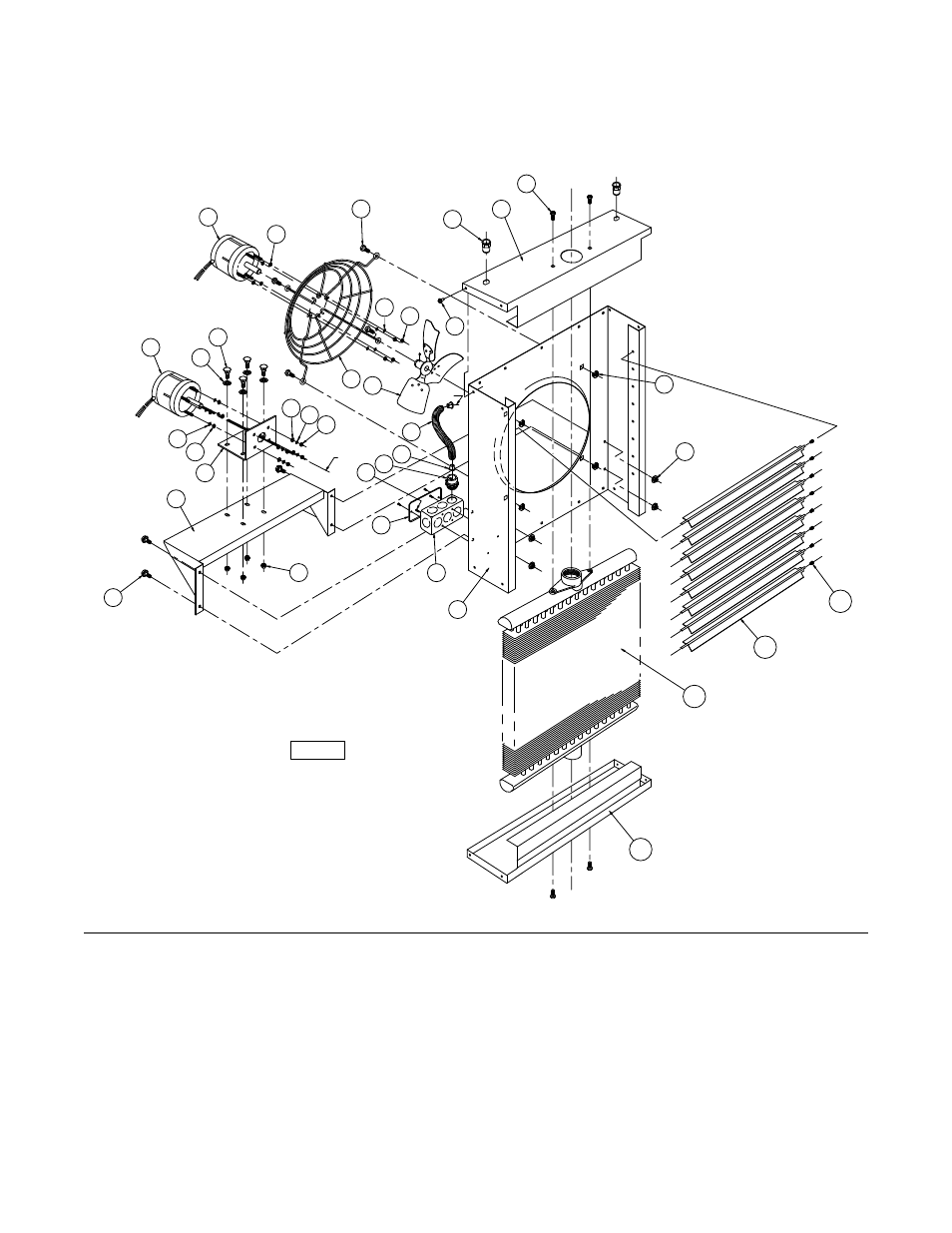

HORIZONTAL STEAM UNIT HEATER PARTS
When ordering replacement parts
Model, Model Type (IE: Standard or Exp. Proof), Size & Item Numbers must be specifi ed
Consult factory for price and availability
Figure 25
Horizontal Steam
Unit Heaters
( ) = Qty Req’d per unit *Select One
TO MOTOR
TO FAN
18
8
21
20
4
16
27
23
22
5
10
14
24
9
30
22
23
31
13
15
12
11
3
25
26
6
19
26
17
29
28
1
2
7
22
30
D-6061
21 - Grommet (4)
22 - Washer, Flat (4)
23 - Nut (4)
24 - Bolt (4)
25 - Washer, Spring Lock (8)
26 - Nut (8)
27 - Screw (2)
28 - Louvers (Horiz)
29 - Cone Spring
30 - Grommet, Stem (4)
31 - Screw (18)
