6
IM 11M12WZ-01-E

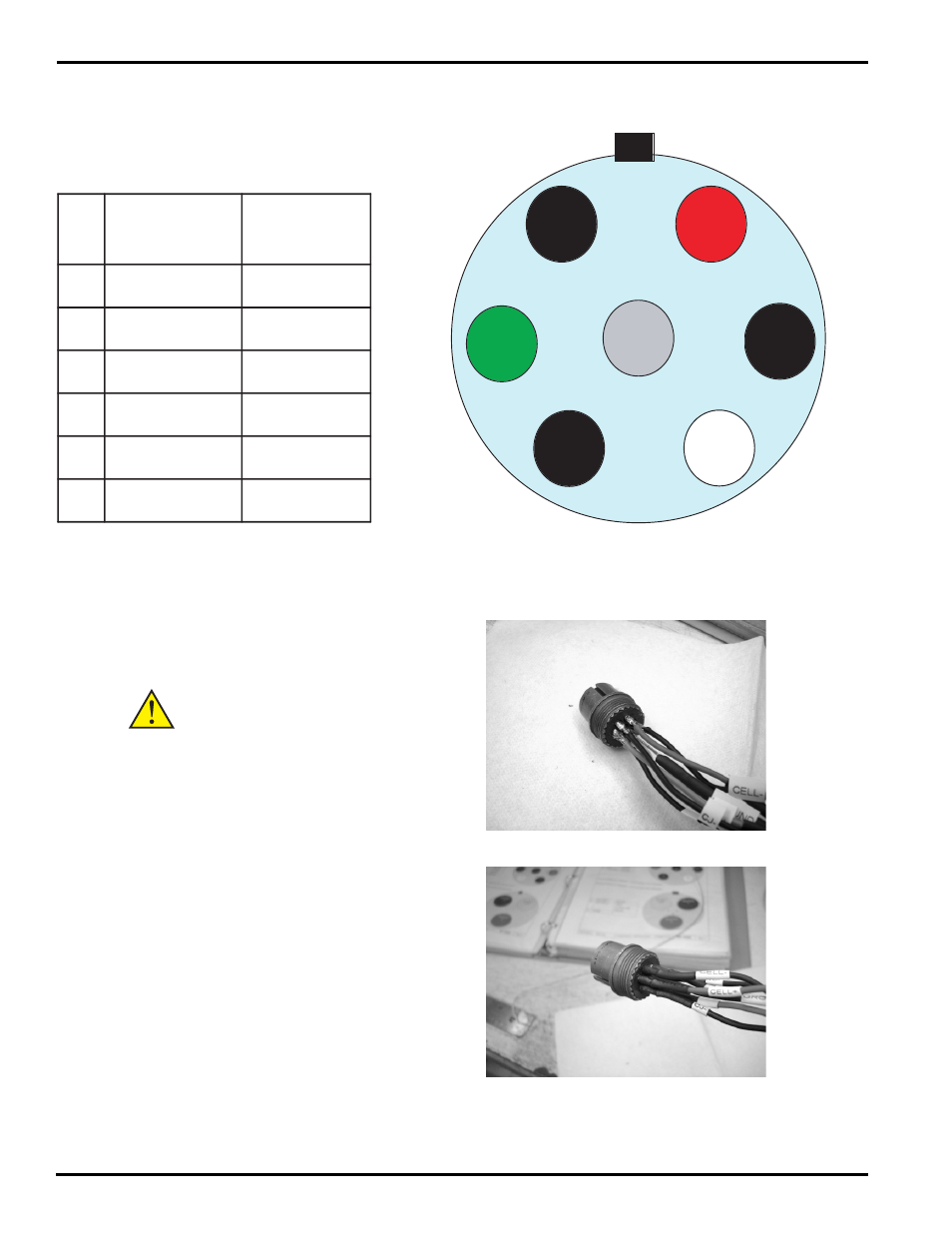

Soldering view for WZ cable
SILVER GROUND G
BLACK CJ - F
GREEN CJ + E
BLACK TC - D
WHITE TC + C
BLACK CELL - B
RED CELL +
A
CELL
+
CJ
_
CJ
+
TC
_
TC
+
CELL
_ G
F A
E
B
D C
Ensure notch is in between A & F on the 7 pin connector.
Ensure notch is in between A & C on the 3 pin connector.
CAUTION
Do not apply excessive heat. Prolonged
exposure to heat gun will cause the
shrink tubing to split and fray.
12. Solder joints should be neat, clean and not
touching each other.
13. Slide the heat shrink over the soldered connec-
tions, apply heat and seal the connections.
