III. SPECIFICATIONS, MC1
3.1 MODEL MC1, MANUAL CALIBRATION PANEL
The MC1 is the manual calibration unit for a single oxygen probe. It provides regulation of the reference air and
calibrations gas while allowing the operator to select zero or span gas for calibration. Separate flow meters are
used to set cal gas flow rates and reference air.

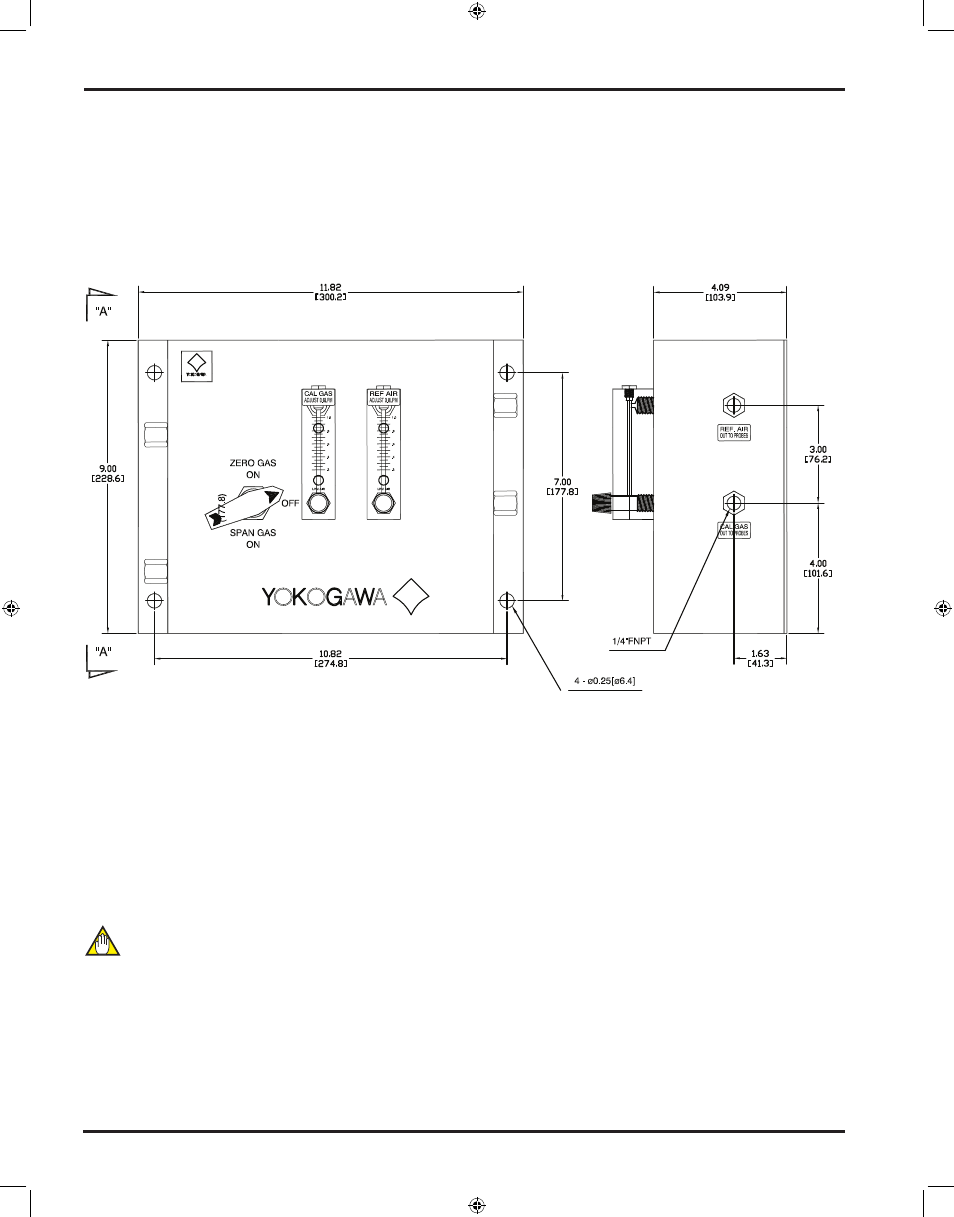

Figure 3.1
Maximum pressure:
35 psig
Calibration Plate:
Stainless Steel
Connections:
¼” FNPT
Calibration Tubing:
¼” Copper (standard); ¼” Stainless Steel (optional)
Weight:
Approximately 4.4 lbs. (2 kg)
Flow rates:
Calibration gas – 0.6 LPM
Reference Air – 0.8 LPM
Exceeding the recommended flow rates will damage the detector cell.
NOTE
