Yokogawa In-Situ Gas Analyzer TDLS200 User Manual
Page 13
13
IM11Y01B01-12E-A
1st Edition

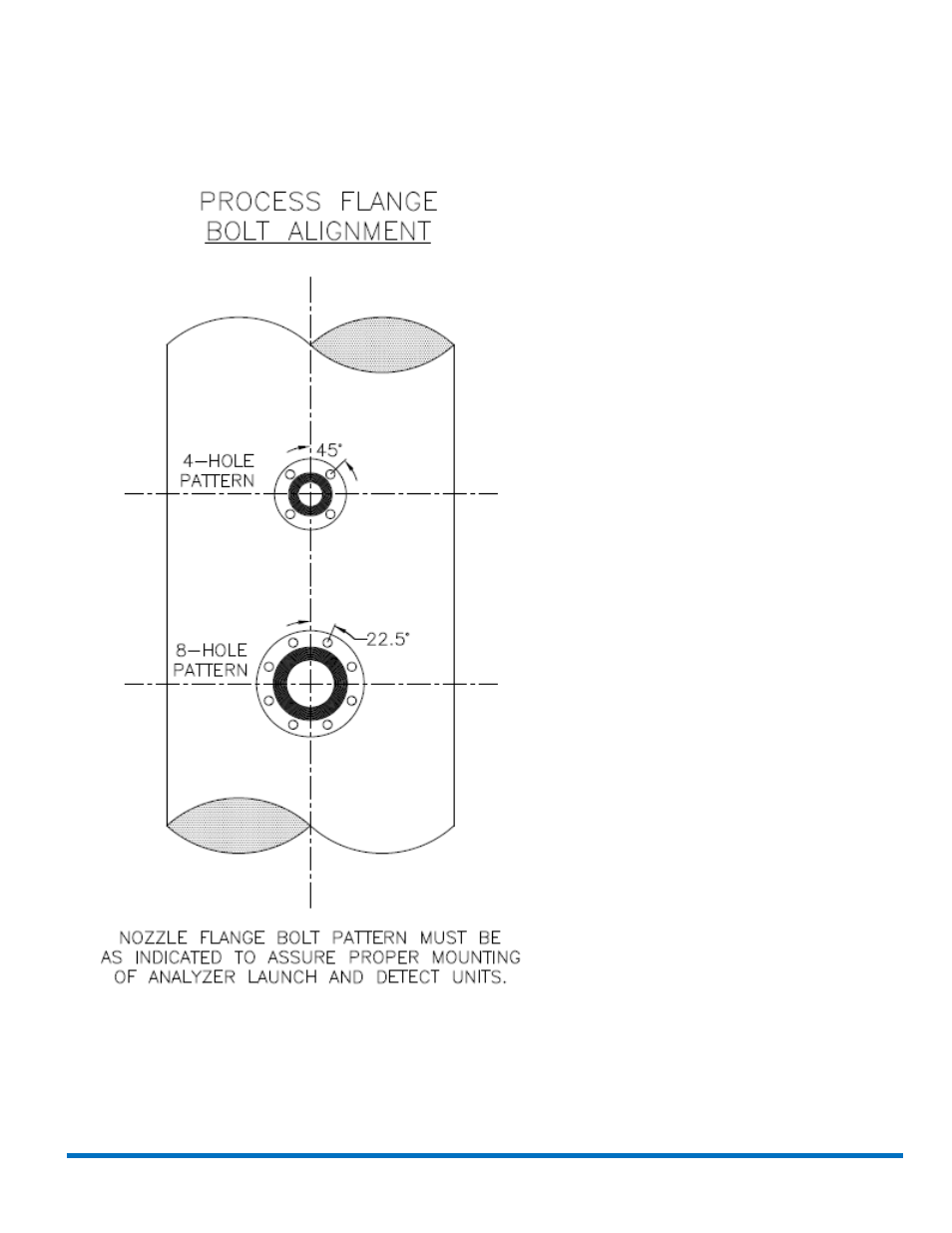

Process Flange Welding Alignment and Line-Up
The Launch and Detect units are provided with alignment mechanisms that allow for some manual
adjustment of the laser beam direction in both planes. It is however recommended that the
following angular tolerances be adhered to as closely as possible.
