6.2 LOADING ROLL PAPER

With the BT200-P00 BRAIN TERMINAL with a
printer, follow these steps to load roll paper.

(1) Open the cover.
(2) Cut the end of the roll paper as shown.
(3) Insert the cut end of the roll paper into part A. The

roll paper has its face and back. Insert the roll paper
to face as shown in Figure 6.2.

(4) Push in the roll paper until its end comes out of part

B.
When the roll paper comes out, pull it out by using
your fingers.

(5) Lead the roll paper through slit c in the cover and

close the cover.

(6) Switch on the BT200 and press [F2] FEED on the

startup panel. Make sure that the roll paper is fed
correctly.

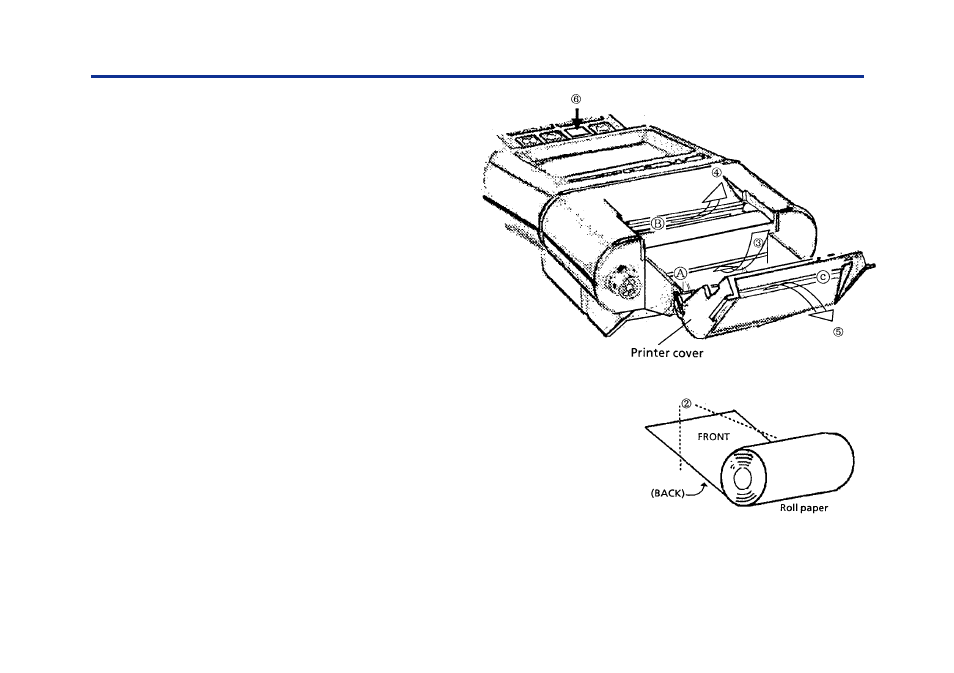

Figure 6.2

Loading Roll Paper
