IMPORTANT
For F OUNDATION Fieldbus, following block must be checked on the “Download blocks” menu in the Offline Parameter screen
to download “Device Flow Parameters” set by Flow Configuration Wizard.
EJX910 F OUNDATION fieldbus DTM: FTB block
DYF(SoftDL) F
OUNDATION
fieldbus DTM: AR block
“Download blocks” menu
(EJX910 F OUNDATION fieldbus DTM)
“Download blocks” menu
(DYF(SoftDL) F OUNDATION fieldbus DTM)

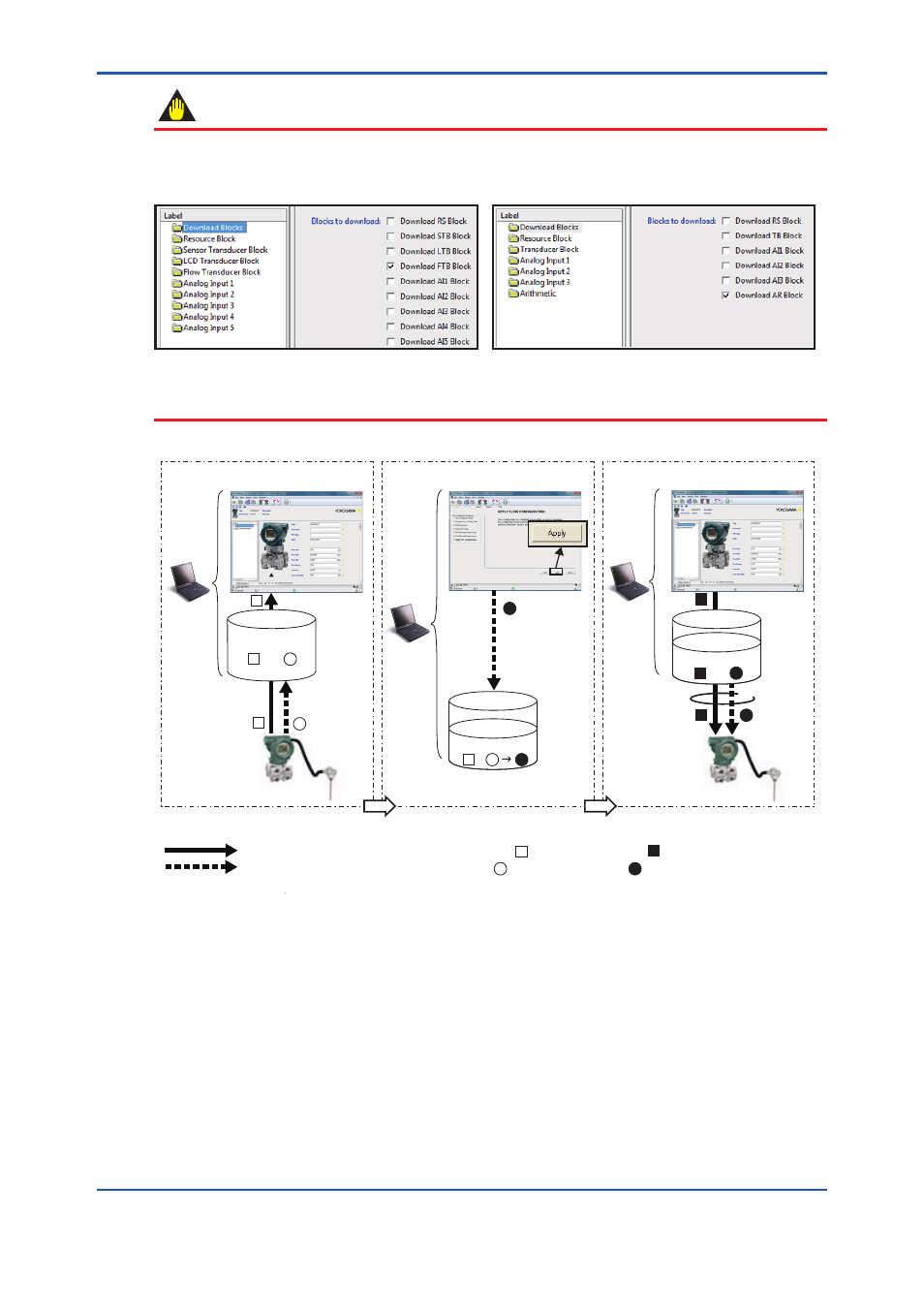

Figure A-1 “Download blocks” menu in the Offline Parameter
Offline Parameter Flow Configuration Wizard Offline Parameter
Offline
Database
Offline
Database
Offline
Database
Step 1 Step 2 Step 3
Device General Parameters (Default value: , Configured value: )
Device Flow Parameters (Default value: , Configured value: )
*: Confirm the checkbox on the “Download blocks” menu in the Offline Parameter (refer to Figure A-1)
*
Figure A-2 Procedure to Download the Parameters to the Device
