TOP MOUNT
KITCHEN FAUCETS
Installation
Instructions
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
4771
1

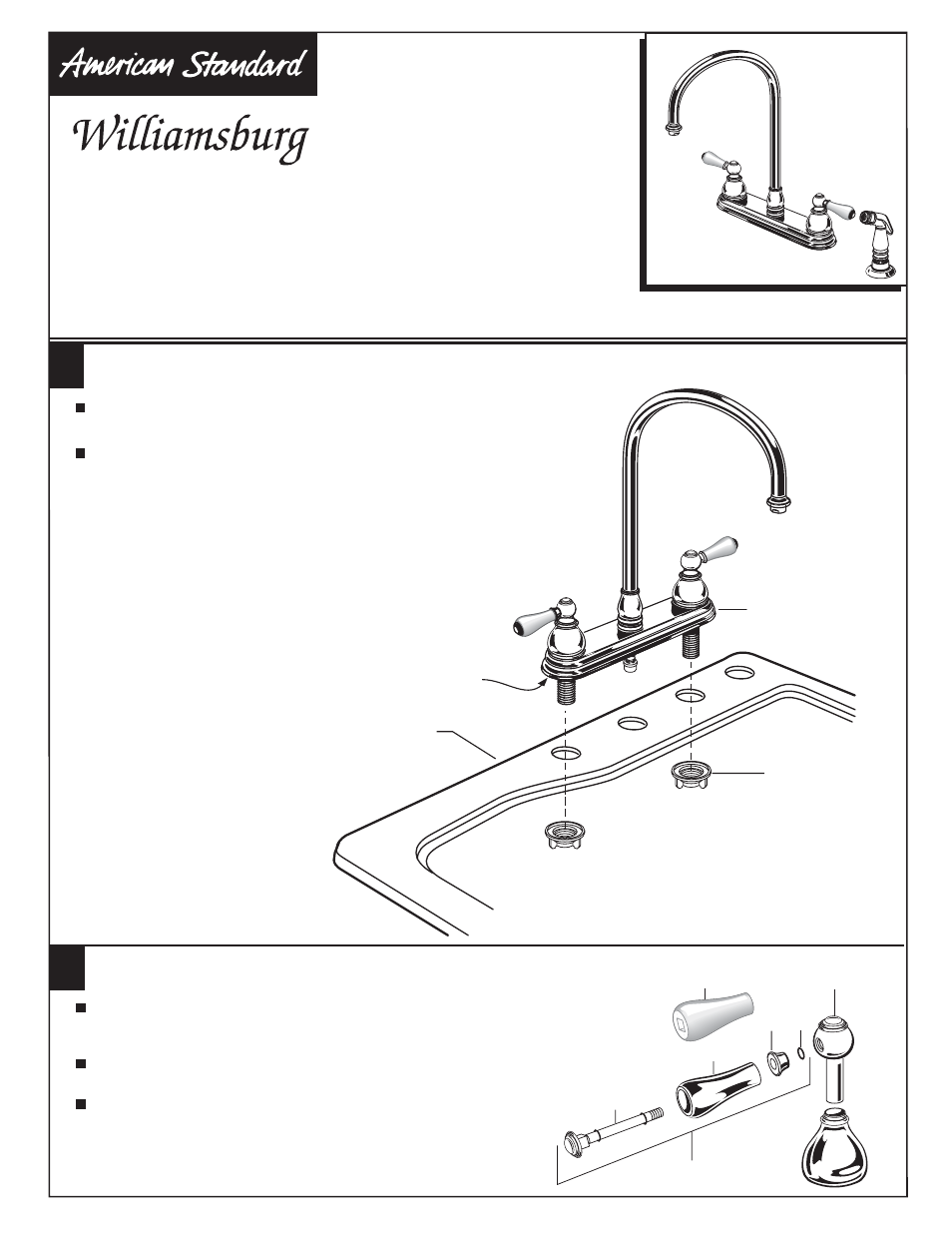

INSTALL FAUCET
Place FAUCET (1) in position on sink.
Note: Putty is not necessary unless mounting surface is uneven.
Assemble and hand tighten LOCKNUTS (2) from underside of SINK.
PUTTY
(IF REQUIRED)
SINK
Certified to comply with ANSI A112.18.1M
U.S. Patent No. 5,819,789
M968950 Rev. 1.1
1
2
2
INSTALLATION OF OPTIONAL METAL LEVER HANDLES
(Supplied with Faucet)
7
3
2
6
1
4 5
Thread PORCELIAN LEVER HANDLE (2) counter-clockwise
and remove INDEX BUTTON with MOUNTING ROD ASSEMBLY (1),
HANDLE COLLAR (4) and O-RING (5).
Insert MOUNTING ROD ASSEMBLY (1) into METAL HANDLE (3),
HANDLE COLLAR (4) and O-RING (5).
Thread HANDLE ASSEMBLY (6) into ball of HANDLE BASE (7).
Apply pressure to the MOUNTING ROD ASSEMBLY (1)
while turning the HANDLE COLLAR (4), in order to tighten
firmly.
