Pfister GT531-YPY - Manual (Page 6)

E
N
G
L
IS
H
ENGLISH
ENGLISH
21
22

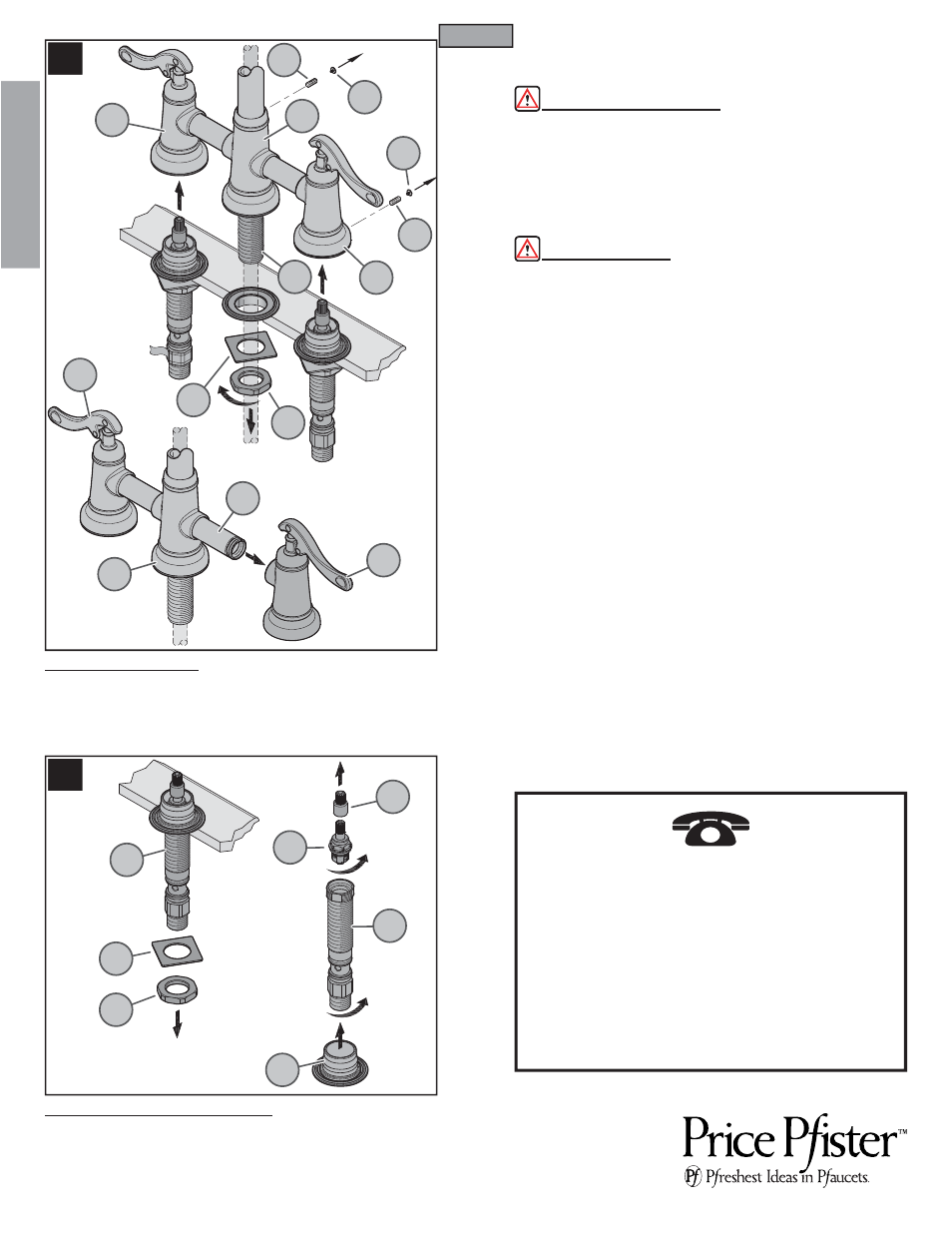

21 HANDLE REMOVAL
Turn off water before proceeding! To remove Handles (21A), the Spout Body (21B)
must be removed. From underneath sink, remove Square Washer (21C) and Locknut
(21D) from Spout Shank (21E). Detach Decorative Button (21F), unscrew Fastener
(21G) from Handles (21A). Lift Spout Body (21B) from sink and remove Handles (21A)
from Spout Bridge (21H).
CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
1–800–PFAUCET (1–800–732–8238)
For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfi ster.com
• Installation Support
• Care and Warranty Information
22 VALVE CARTRIDGE REMOVAL
Turn off water before proceeding! Remove Spout Body and Handles (see step 21).
From underneath sink, remove Square Washer (22A) and Locknut (22B) from Valve
Shanks (22C). Remove Valve Body (22F) from Flange (22E). Remove Stem Extender
(22G), unscrew Cartridge Assembly (22H) and inspect. Replace parts as necessary.
6
21C
22A
21A
21A
21D
21B
21E
21G
21G
21F
21F
21A
21H
21A
21B
22B
22C
22E
22F
22G
22H
