ENGLISH
ENGLISH
FAUCET INSTALLATION
7
8
9
10

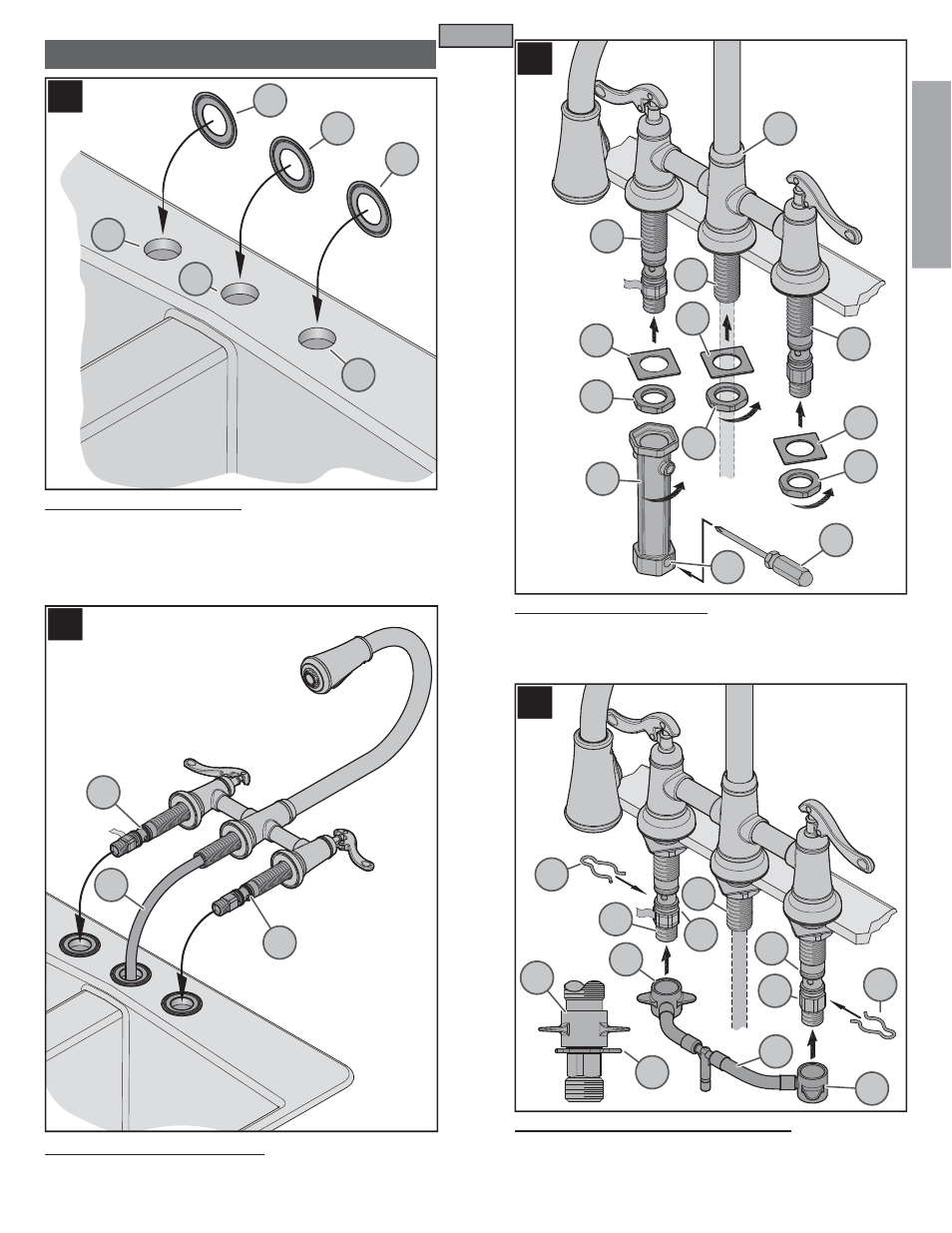

7 INSTALLING PUTTY RINGS
Following manufacturer’s recommendations on use, place a bead of plumber’s putty
in the bottom groove along the outer edge of Putty Ring (7A). Place Putty Rings (7A)
over sink holes (7B).
8 FAUCET BODY INSTALLATION
Insert the faucet Pull-out Hose (8A) through the center hole of the sink. Insert Valve
Shanks (8B) through the end holes of the sink.
9 SECURING FAUCET BODY
From underneath sink, place Square Washers (9A) onto Spout Shank (9B) and Valve
Shanks (9C). Tighten Locknuts (9D) by using Installation Tool (9E). For better leverage,
use a Screwdriver (9F), insert it through Hole (9G) and tighten the Locknuts (9D) until
Faucet Body (9H) is fi rmly secured to sink.
10 HOSE CONNECTION TO VALVE BODY
Slide the End Connectors (10A) onto the Valve Bodies (10B). Make sure Hose (10E)
clears Spout Shank (10F). Push the End Connectors (10A) all the way up until completely
seated. Be careful not to damage O-Rings (10C). Place Clips (10D) onto End Bodies
(10B) to secure End Connectors (10A).
3
7B
8B
10A
9A
7B
7B
7A
7A
7A
8A
8B
9A
9A
9D
9D
9D
9B
9C
9C
9E
9G
9F
9H
10A
10C
10C
10B
10D
10D
10A
10D
10B
10F
10E
