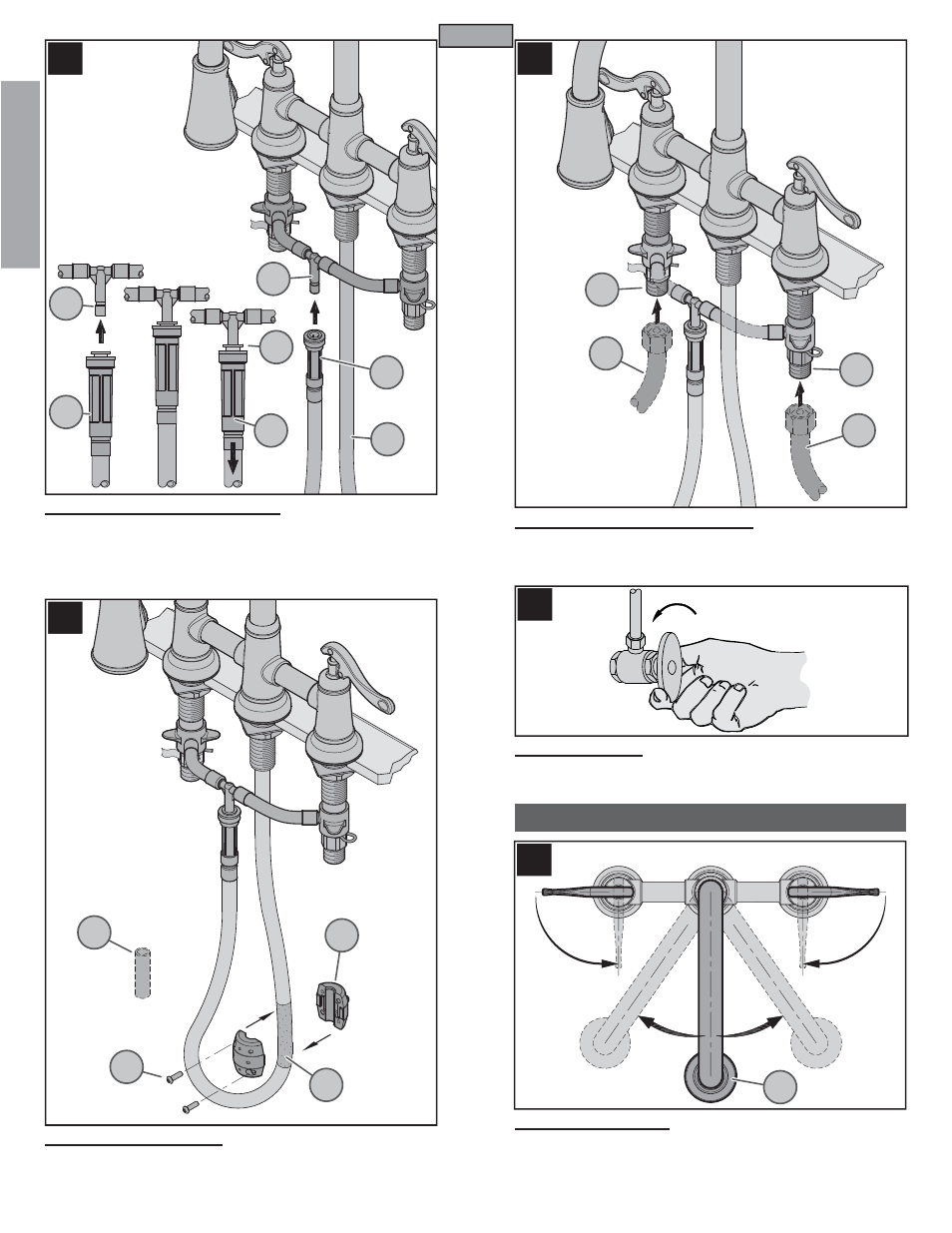

FAUCET FUNCTIONS

11

13

12

15

11 PULL-OUT HOSE ATTACHMENT

From underneath sink, push Quick Connector (11A), located on the end of the Pull-Out
Hose (11B) fi rmly upward onto the Receiving Tube (11C), until unable to push any
further. Pull down on the Quick Connector (11A). If the housing and the Inner Collet
(11D) separate slightly but do not pull off, the Receiving Tube (11C) quick connect is
secure.

12 WEIGHT ATTACHMENT

Discard Cardboard Fitting (12B) from Weight (12A). Place Weight (12A) above the
beginning of hose bend (12C) at the spout side (as shown in shaded area). Secure
Weight (12A) with Screws (12D).

13 WATER SUPPLY CONNECTIONS

Connect water Supply Lines (13A) to Faucet Inlets (13B). Hot water supply lines go into
left inlet. Cold water supply lines go into right inlet. (Supply lines not included). Please
follow manufacturer’s instructions when installing supply lines.

14 UNIT START UP

Turn on hot and cold water supplies, and check for leaks above and below the sink.

15 FAUCET FUNCTION

COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-clockwise,
open-counterclockwise. The Spout (15A) can be rotated around the Faucet Body in
any direction.

Note: Flush faucet before turning on valve (see step 18).
