Pfister GT42-YP0Y - Manual (Page 3)

E
N
G
L
IS
H
ENGLISH
ENGLISH
7
8
10
11
9

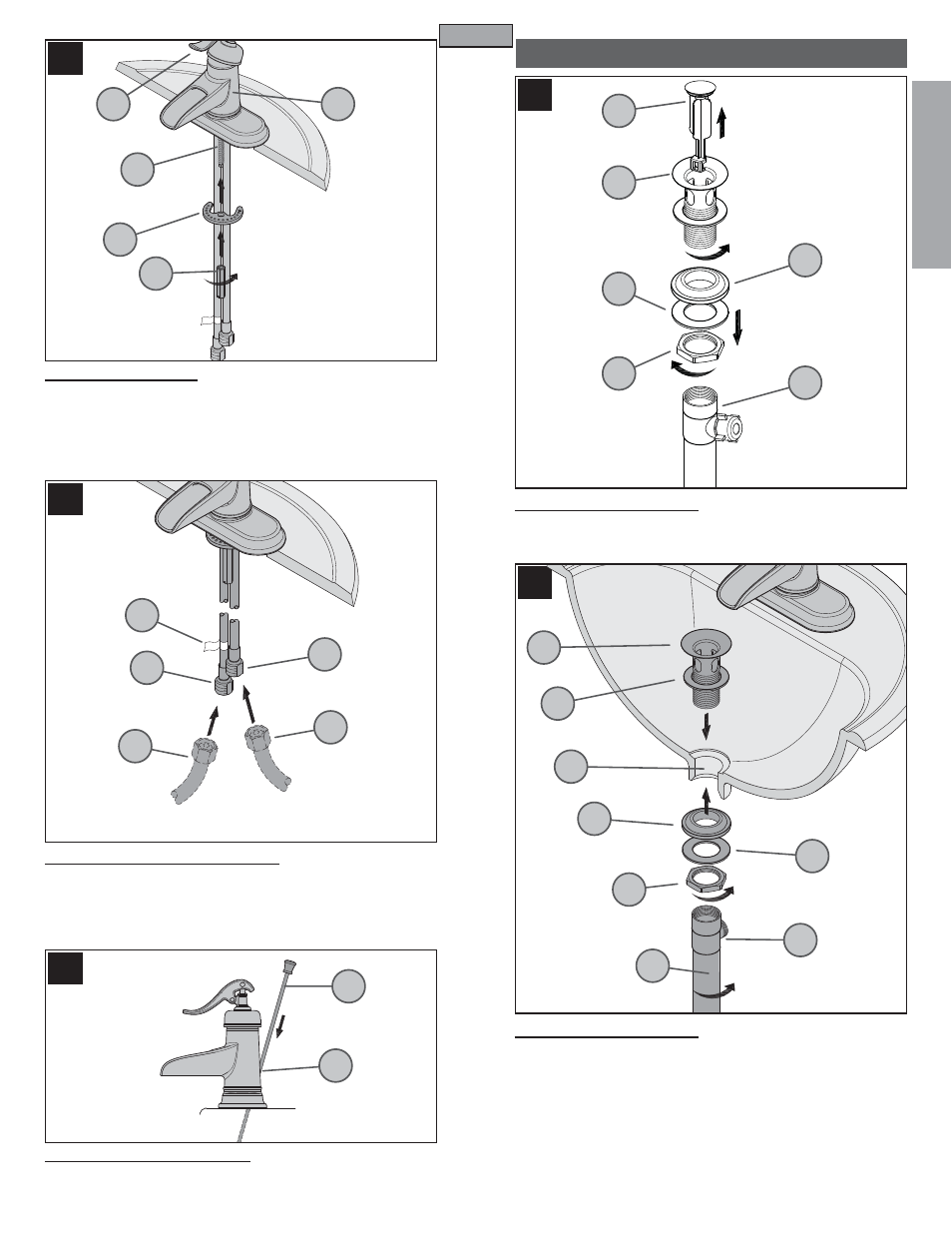

7 SECURING FAUCET
From underneath sink, secure Faucet Body (7A) by placing Metal Washer (7B)
and threading Long Nut ( 7 /
16
Hex.) (7C) onto Mounting Post (7D). Make sure
that the bumps on Metal Washer (7B) are facing up. Tighten loosely, make
sure Handle (7E) swings equally in both directions. Firmly hand tighten Long
Nut (7C). Secure Long Nut (7C) not to exceed a 1/4 turn.
Caution: Do not over tighten!
8 WATER SUPPLY CONNECTIONS
Connect water Supply Lines (8A) to Faucet Inlets (8B). Hot water supply line
goes to hot inlet fi tting indicated by red tag (8C). (Supply lines not included).
Follow manufacturer’s instructions when installing supply lines.
9 POP-UP ROD CONNECTION
Insert Lift Rod (9A) into hole at the back of Faucet Body (9B). Gently, slide Lift
Rod (9A) down the hole in Faucet Body (9B).
10 POP-UP PREPARATION
Remove Flange (10A) from the Drain Body (10B). Remove Locknut (10C), Fric-
tion Washer (10D), Rubber Washer (10E) and Stopper (10F) from Flange (10A).
11 POP-UP INSTALLATION
The Flange (11A) can be installed with or without Rubber Seal (11B). If Flange
(11A) is installed without Rubber Seal, apply a small bead of plumber’s putty
underneath the Flange (11A) and around Drain Opening (11C). Insert Flange
(11A) into Drain Opening (11C). From underneath, slide Rubber Washer (11D)
and Friction Washer (11E) onto the bottom of Flange (11A). Thread Locknut
(11F) until Rubber Washer (11D) seats securely inside Drain Opening (11C).
Remove excess plumber’s putty. Wrap PTFE plumber’s tape to the bottom
external threads of Flange (11A) according to manufacturer’s instructions.
Thread Drain Body (11G) to bottom of Flange (11A) and adjust so that the Ball
Rod Opening (11H) faces the rear.
DRAIN BODY INSTALLATION
3
7B
7C
7D
8B
8B
8A
9A
9B
10D
10F
10E
10A
10B
10C
11A
11B
11C
11D
11E
11F
11H
8C
11G
8A
7A 7E
HOT
COLD
