ENGLISH
ENGLISH
11
12
13

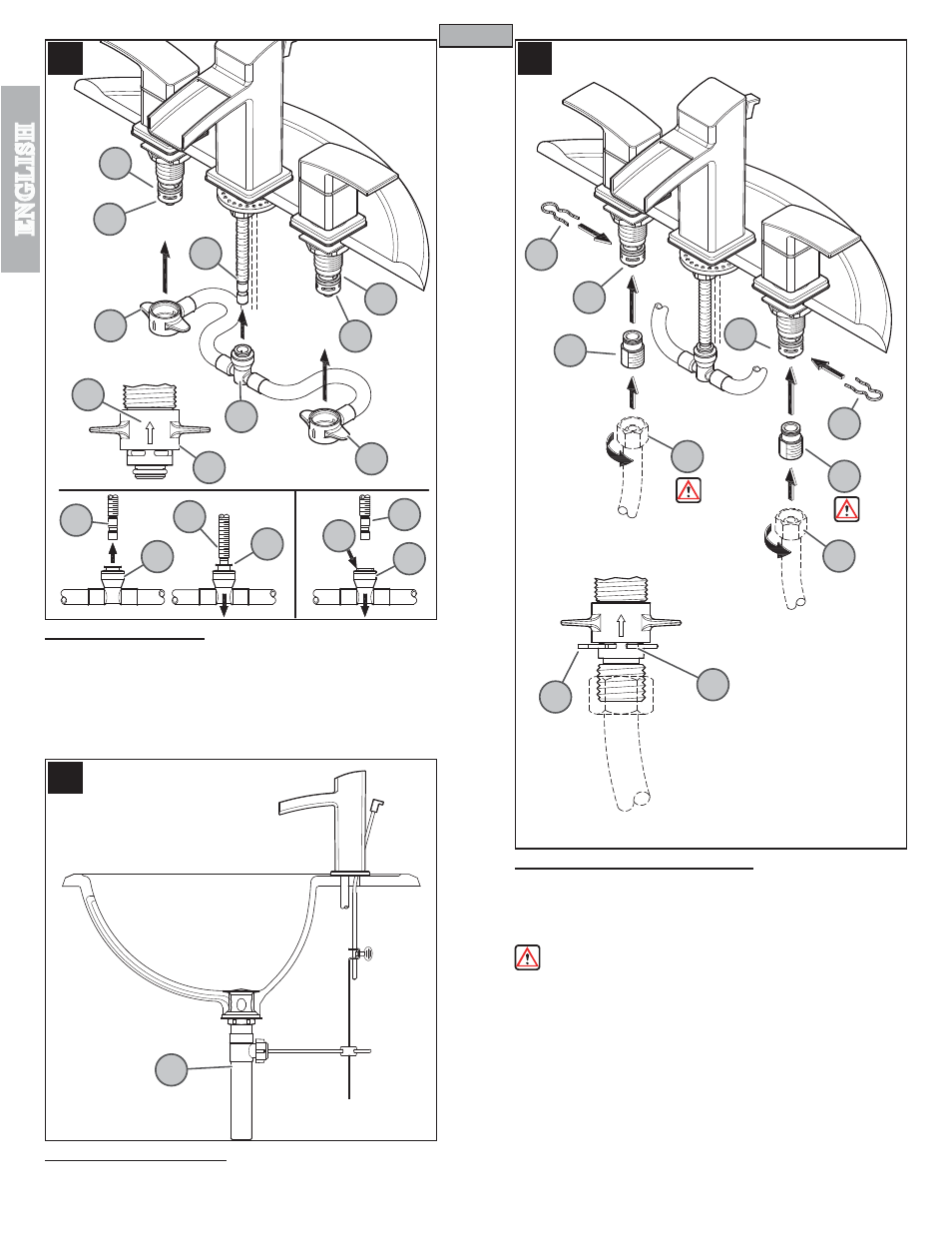

11 HOSE CONNECTION
From underneath sink, push the Center Connector (11A) onto receiving Tube (11B),
until unable to push any further. Pull down on the quick connect housing (11A). If the
housing and the Inner Collet (11C) separate slightly but do not pull off receiving Tube
(11B), the connection is secure.
Slide the End Connectors (11D) with arrow (11E) pointing up onto the Valve Bodies (11F).
Push the End Connectors (11D) all the way up until completely seated. Be careful not
to damage O-Rings (11G).
12 POP-UP INSTALLATION
Install and adjust Pop-Up (12A) using separate instructions supplied with the Pop-Up
assembly.
13 WATER SUPPLY CONNECTIONS
First, thread Inlet Connectors (13A) into Water Supply Lines (13B). Then, insert Inlet
Connectors (13A) into Valve Bodies (13C).
Hot water supply lines go into left inlet.
Cold water supply lines go into right inlet. (Supply lines not included). Please follow
manufacturer’s instructions when installing supply lines. Next, insert Clips (13D) into
Valve Body Holes (13E), to secure unit.
WARNING: Do not twist Inlet Connectors (13A) once installed!
4
HOT
COLD
11A
11D
11D
11F
11G
11F
11G
11D
11E
11A
11B
11C
11B
11A
13A
13A
13D
13B
13C
13C
13D
13B
13E
13D
11C
11B
11B
12A
