Plumber’s Putty
Masilla para plomeria
Mastic de plombier

Side Spray (D) can be installed to
the right or the left side of Spout
(A1).

El rociador lateral (D) se puede instalar
en el lado derecho o izquierdo del
surtidor (A1).

La douchette latérale (D) peut être
installée sur le côté droit ou gauche
du bec (A1).

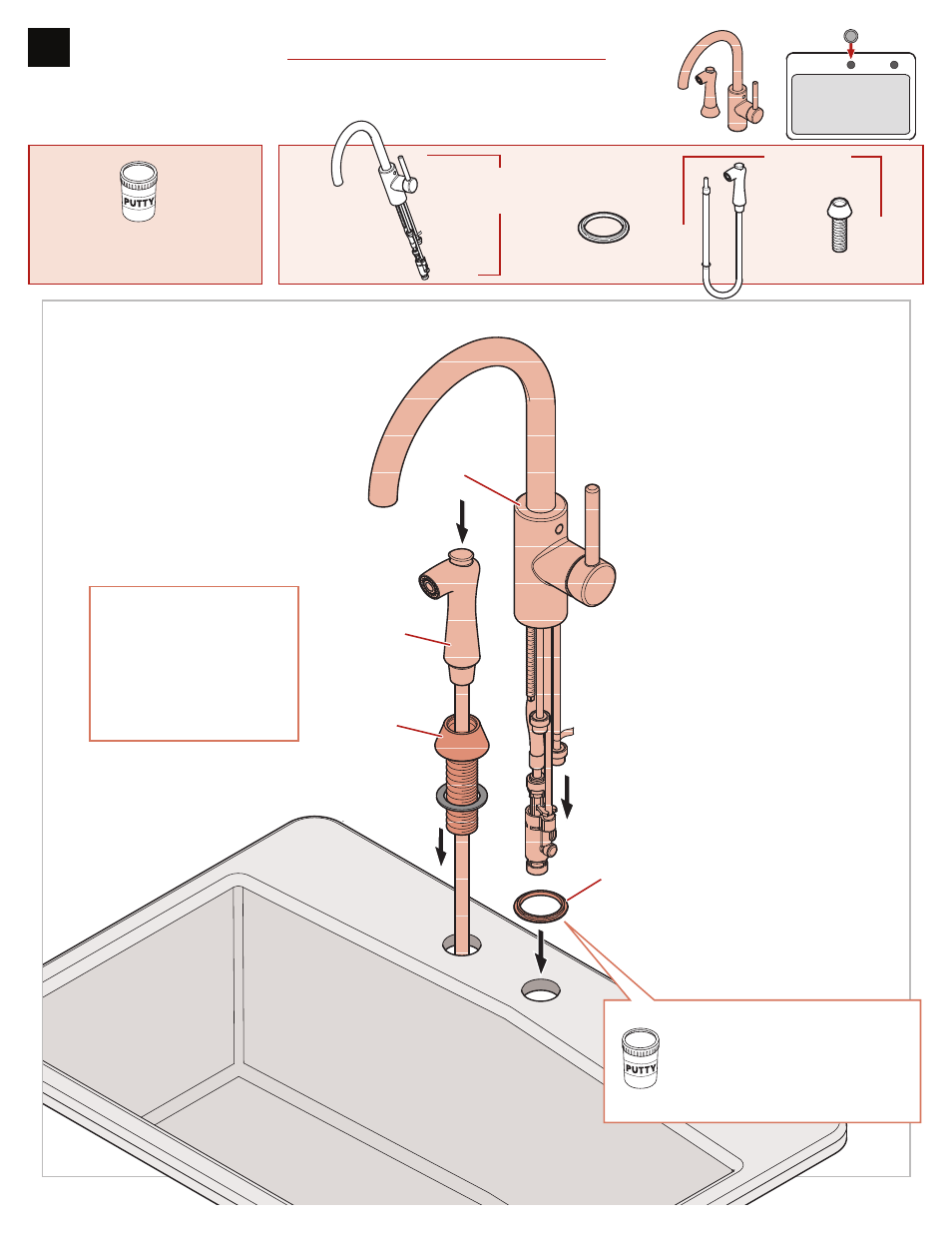

OPTION 1: Install Faucet

With Side Spray and Without Deckplate

OPCIÓN 1: Instalación del grifo con el aerosol lateral y sin placa de cubierta
OPTION 1 : Installez le robinet avec douchette latéral et sans applique

Apply Plumber’s Putty in the groove along the
bottom outer edge of Ring (C).

Aplique masilla de plomería en la ranura a lo largo del
borde exterior del anillo (C).

Appliquez du mastic de plombier dans la rainure sur
le bord extérieur de le anneau (C).

4

D1

D2

C

A1

D1

D2

C

From Step 2B

Desde el paso 2B

De l’étape 2B

From Step 2A

Desde el paso 2A

De l’étape 2A

A1
