How to Use Data Communications
14
WATLOW Series 945

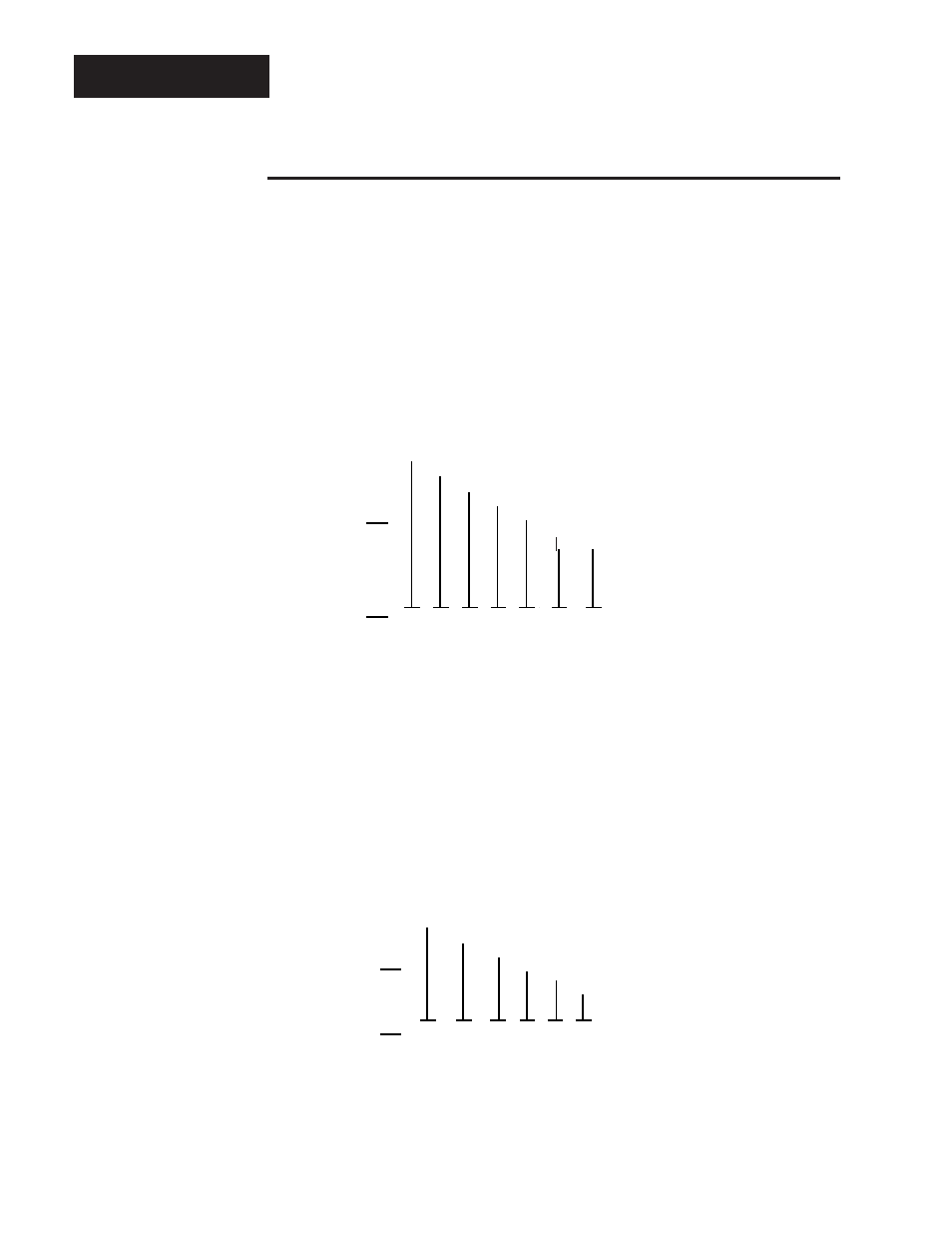

Figure 7 -
XON/XOFF "?"
Command Example.
XON/XOFF "?"
XON/XOFF "?" Command Example
You want to know the Alarm 1 Low (A1LO) value. The "?" uses a variation of the
message syntax shown just below. This protocol requires an ending carriage
return character.
"?" Command syntax with XON/XOFF Protocol:
? Data.1
Enter in ASCII:
? A1LO
The hex string will be:
3F2041314C4F0D
The value of A1LO will be between rL (Range Low) and rH (Range High), say, 500.
Response from the Series 945:
The hex response string is:
13113530300D
ASCII
Characters
HEX
Value
1
41 4C 31
Space
?
3F 20
A
L
CR
0D 4F
O
0
0
30
5
35 30
CR
0D
ASCII
Characters
HEX
Value
13 11
