Apple PowerBook G3 Series User Manual
Page 75
Take Apart
Bottom Case Assembly - 74

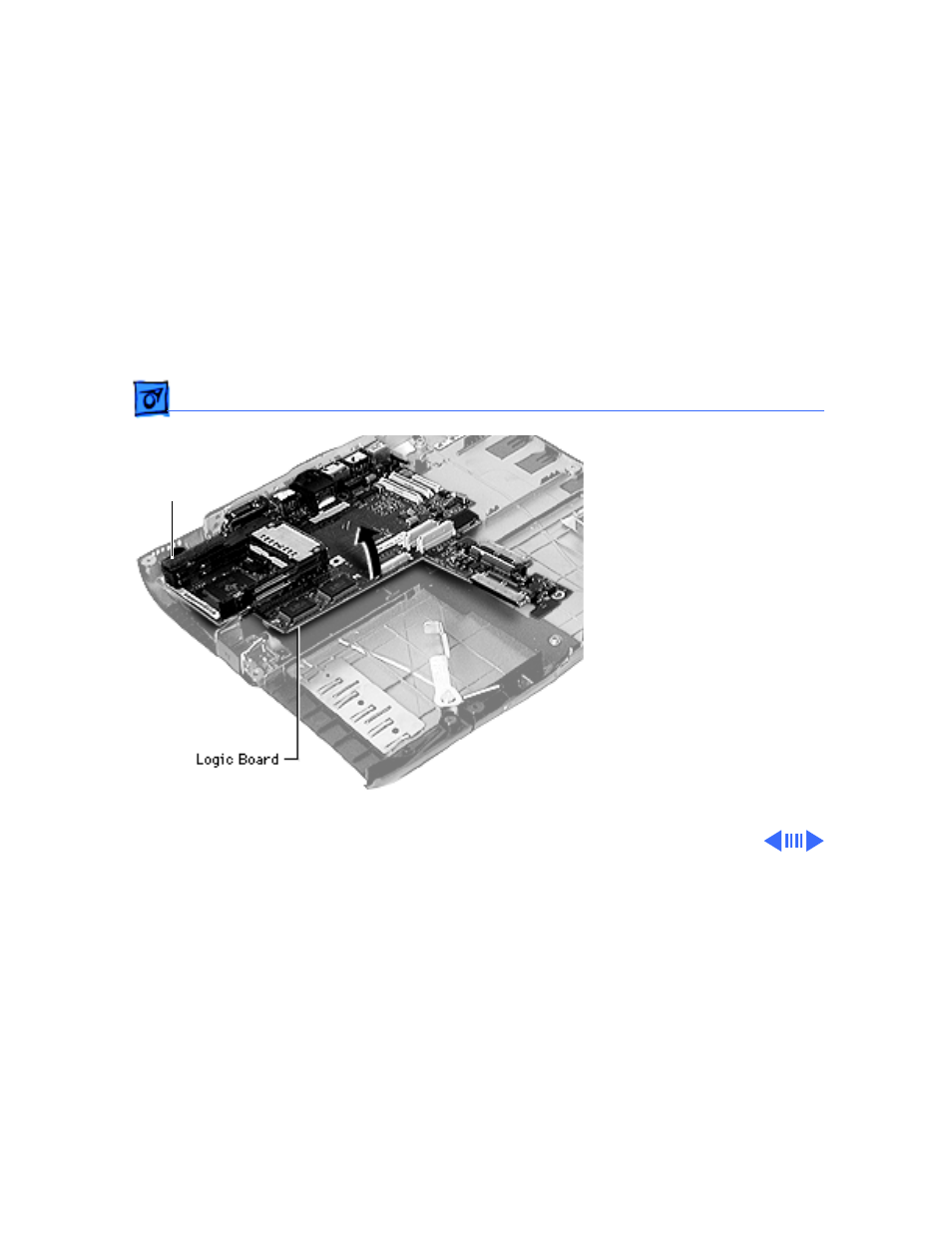

3 Hold the sides of the I/O
logic board and lift up,
then pull forward.
Caution:
Do not use the long,
narrow part of the I/O logic
board as a handle. The board
could break at this point.
Hold the board by the outer
edges.
Replacement Note:
After
repositioning the I/O logic
board, check that the LED
leads are not bent and the
three LED indicator lights
are aligned properly.
LED Indicator
Lights
