Apple PowerBook G3 Series User Manual
Page 74
Take Apart
Bottom Case Assembly - 73

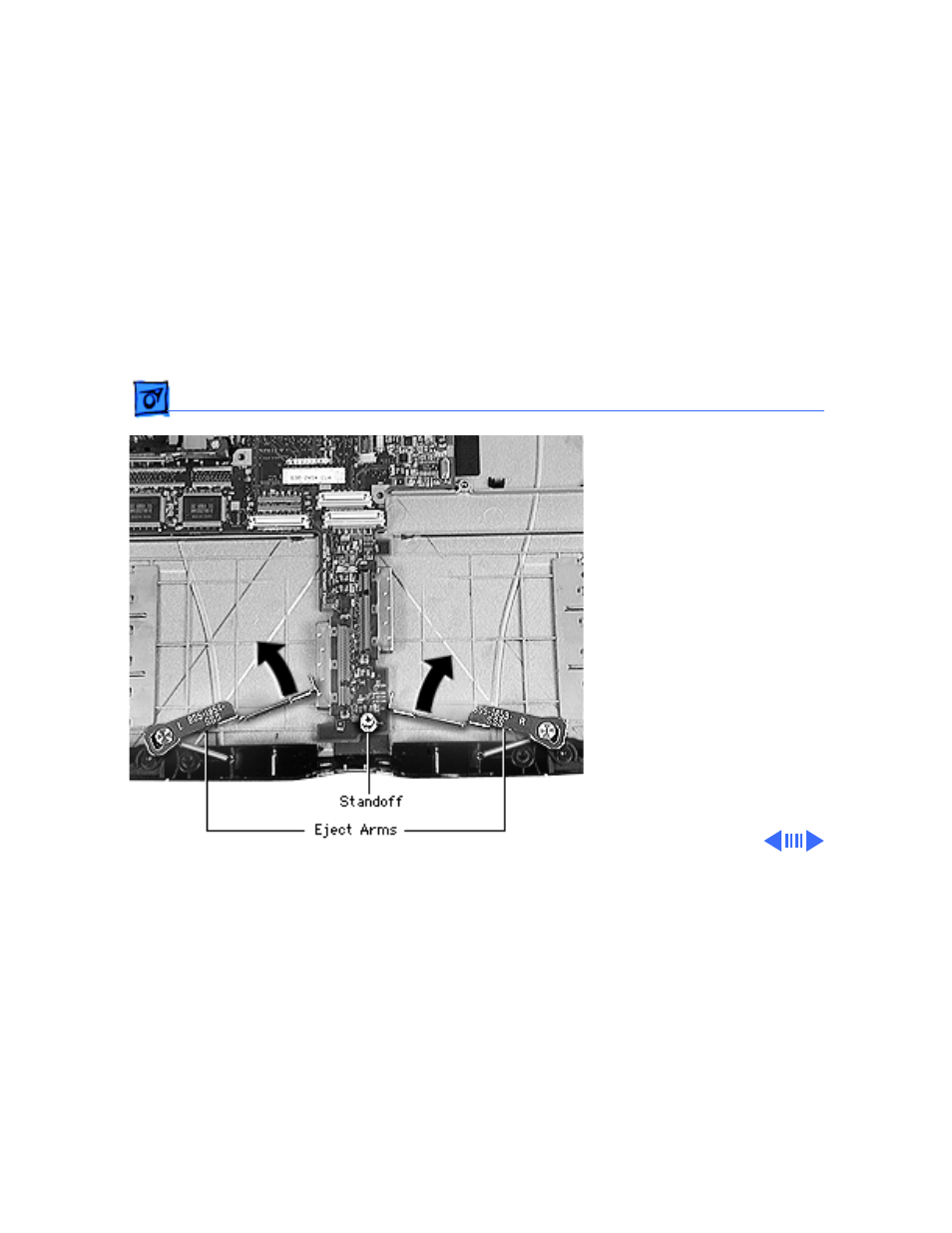

1 Unscrew the standoff
located at the front of the
I/O logic board.
2 Lift the expansion bay
eject arms off their
tracks and swing them
away from the front of
the I/O logic board.
Replacement Note:
Make
sure the expansion bay
eject arms are back on their
tracks before continuing to
reassemble the computer
