Apple PowerBook G3 Series User Manual
Page 34
Take Apart

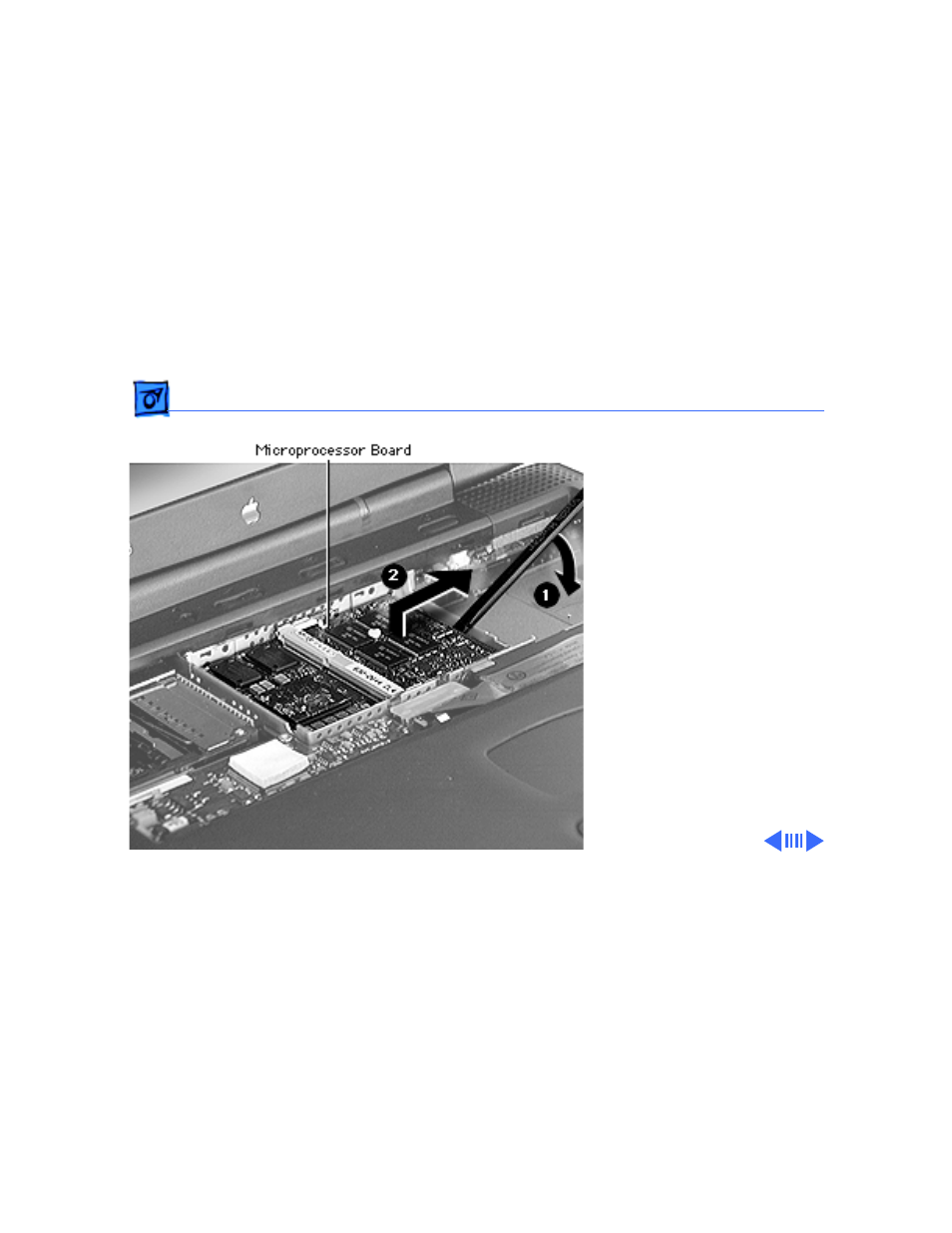

Microprocessor Board - 33
1 Position a nylon tool
under the center of the
right side of the board
and lift up to release it.
2 Pull the microprocessor
board to the right.
Replacement Note:
Align the
tabs on the left side of the
board with the slots on the
top case stiffener, then
press down firmly on the
right side of the board to seat
the connector.
Replacement Caution:
The
microprocessor board can be
partially inserted and the
