Apple PowerBook G3 Series User Manual
Page 48
Take Apart
Top Case Assembly - 47

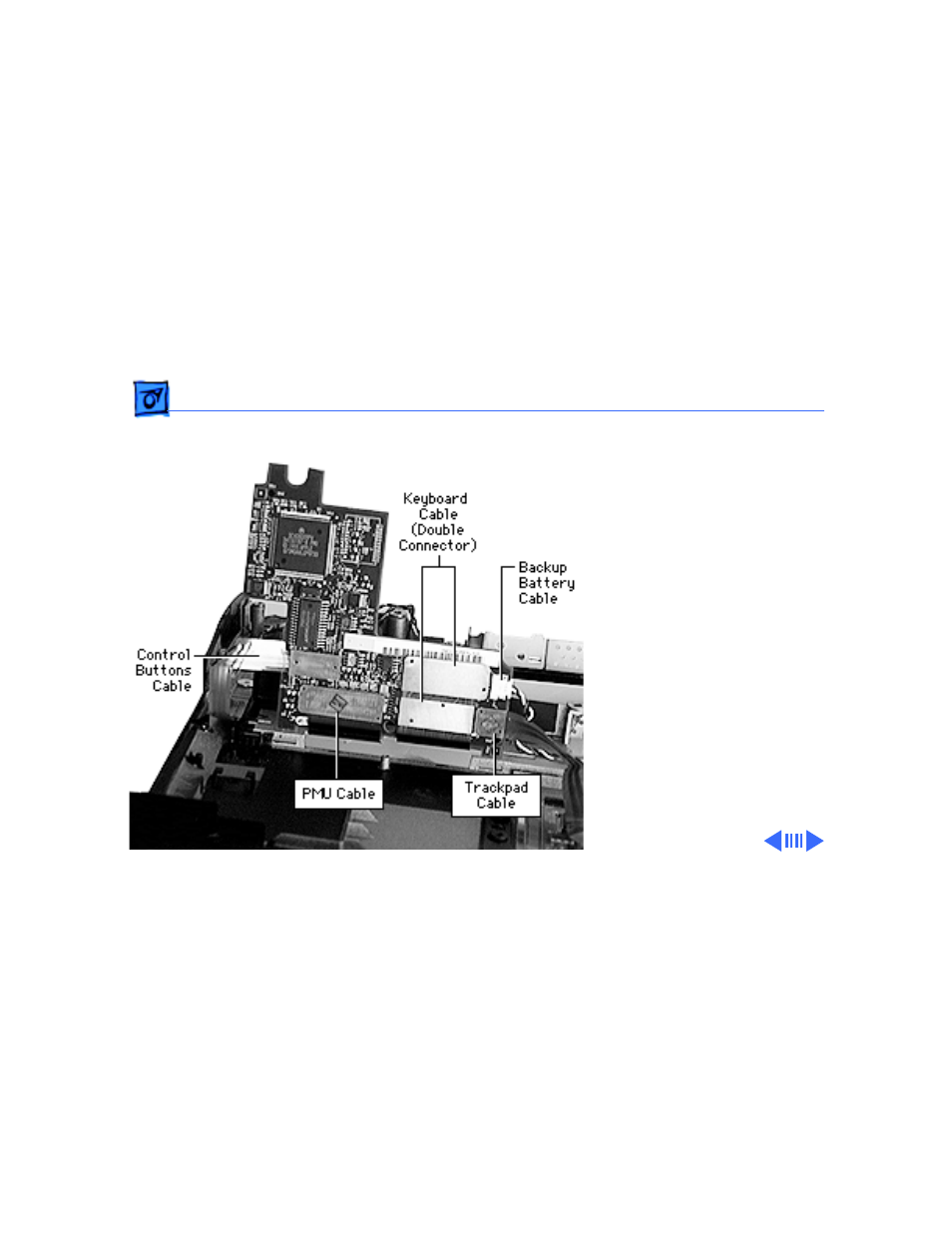

2 Lift the PMU board up
and use a nylon tool or
other flat-blade tool to
disconnect the following
cables:
• Backup battery cable
• Control buttons cable
• Trackpad cable
• Keyboard cable
• PMU Cable
Caution:
Excessive force
can bend pins in the
connectors or tear the
cables.
Replacement Note:
Align the
two tabs at the rear of the
