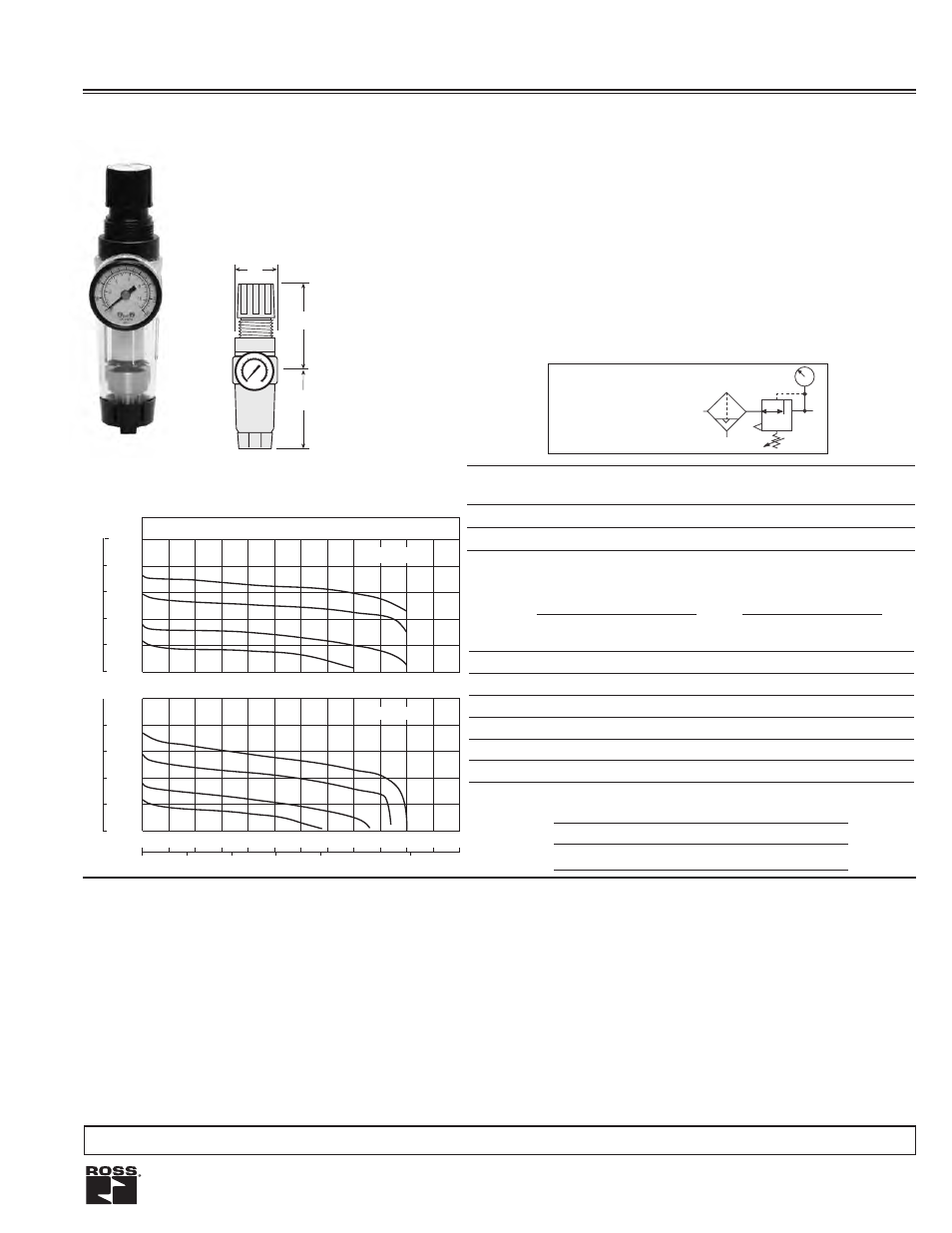

FEATURES:

• Filter and regulator consolidated in a single assembly
• Inline mounting
• 5-micron rated polyethylene filter element; optional sintered bronze elements
• High-strength polycarbonate plastic filter bowl; optional aluminum bowl
• Internal automatic drain; optional manual drain
• Piston-type regulator or diaphragm-type
• Self-relieving regulator; non-relieving optional
• Pressure gauge
• Regulator adjusting knob removable for tamper-resistance

Ports: 1/8 & 1/4

Flow to 24 scfm

0

scfm

FLOW

l/s 0

2

20

psi

100

OUTLET PRESSURE

1.4

2.8

4.2

5.6

bar
7.0

Inlet Pressure: 91 psig (6.3 bar)

0

scfm

FLOW

l/s 0

0

0

5

10

15

20

25

10

PISTON

40

60

80

20

psi

100

OUTLET PRESSURE

1.4

2.8

4.2

5.6

bar
7.0

0

0

40

60

80

30

4

6

8

12

DIAPHRAGM

FLOW CHARTS

MINIATURE Integrated Filter/Regulator

STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:

Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowl: 40° to 150°F (4° to 66°C).
Body: Aluminum.
Bowl: 2-ounce (60-ml) capacity polycarbonate plastic; optional
aluminum bowl.
Dome and Knob: Acetal.
Filter Drain: Internal automatic drain; optional manual drain.
Filter Element: 5-micron rated polyethylene.
Fluid Media: Compressed air.

Inlet Pressure:
For automatic drain model:

With polycarbonate plastic bowl: 15 to150 psig (1.0 to 10.3 bar).

With metal bowl: 15 to 200 psig (1.0 to 13.8 bar).

For manual drain model:

With polycarbonate plastic bowl: 0 to 150 psig (0 to 10.3 bar).

With metal bowl: 0 to 200 psig (0 to 13.8 bar).

Outlet Pressure: Adjustable up to 100 psig (6.9 bar).
Pressure Gauge: 0 to 160 psig (0 to 11.0 bar);
1/8 NPT gauge ports front and rear.
Panel Mounting: 1-3/16 inch (30 mm) hole required.
Seals: Nitrile.
Threads: NPT standard, BSPP. For BSPP threads, add a “C”
prefix to the model number, e.g., C5321C1032.

A

C

B

0

B A R

1 0 0 x k P a

p s i

120

1

6

0

20

0

80

4

0

0

2

4

6

8

10

12

14

REPLACEMENT FILTER ELEMENT KIT

Element Rating/Type

Kit Number

5-µm polyethylene - Standard

933K77

ISO Symbol

Filter/Regulator

Automatic Drain

Self-relieving

1

3

2

CONSOLIDATED FILTER & REGULATOR (piston type)

1/8 5321C1032 5322C1031

5321C1002

5322C1001

1/4 5321C2032 5322C2031

5321C2002

5322C2001

CONSOLIDATED FILTER & REGULATOR (diaphragm type)

1/8 5321C1042 5322C1041

5321C1022

5322C1021

1/4 5321C2042 5322C2041

5321C2022

5322C2021

Port

Plastic

Metal

Plastic

Metal

Size

Bowl Bowl Bowl Bowl

Automatic Drain Models

Manual Drain Models

DIMENSIONS inches (mm)

Weight

Bowl

Ports

A B C

Depth

lb (kg)

Plastic 1/8, 1/4 1.6 (41)

3.6 (92)

2.6 (65) 1.6 (41) 0.53 (0.24)

Metal 1/8, 1/4 1.6 (41) 4.3 (109) 2.6 (65) 1.6 (41) 0.53 (0.24)

† Less gauge.

IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
